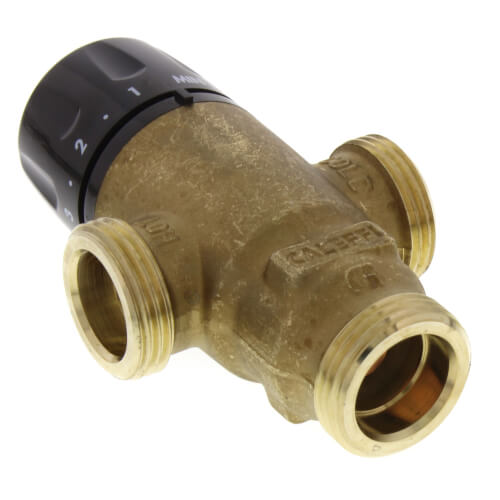

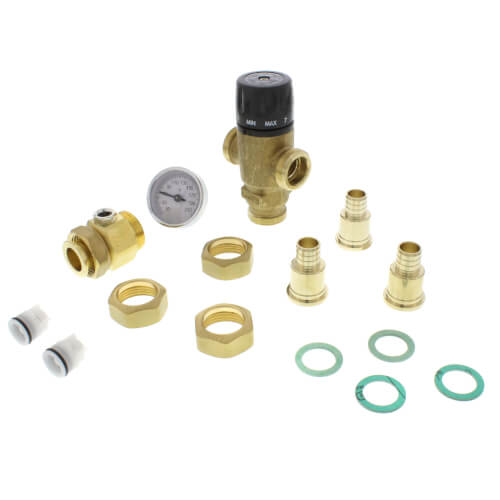

3/4" PEX Crimp MIXCAL 3-Way Adjustable Thermostatic and Pressure Balanced Mixing Valve w/ Check Valve & Gauge
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$200.91 each
In Stock
Get 7 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
Size:
3/4"
Connection Type:
PEX Crimp x PEX Crimp
Features:
Gauge
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX Crimp x PEX Crimp Connection
3/4"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
The Caleffi MixCal™ 521 series three-way thermostatic mixing valve is used in systems producing domestic hot water or in hydronic and radiant heating systems. It maintains the desired output temperature of the mixed water supplied at a constant set value compensating for both temperature and pressure fluctuations of the incoming hot and cold water.
The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
Features:Low-lead brass body.
Internal anti-scale materials.
Locking set point knob.
Meets requirements of ANSI/NSF 372-2011.
Max. working pressure: 200 psi.
Max. inlet temperature: 200ºF.
Adjustable range: 85—150ºF.
Min. flow for optimum performance: 1.0 gpm.
Gauge scale: 30—210ºF.
Gauge accuracy: ± 6ºF.
Gauge dial: 2" diameter.
Certified to: cUPC listed to ASSE 1017/
CSA B125.3, Low lead.
The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
Features:
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 3/4" |
| Connection Type: | PEX Crimp x PEX Crimp |
| Connection Method: | PEX |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Flow Capacity (Cv): | 3 |
