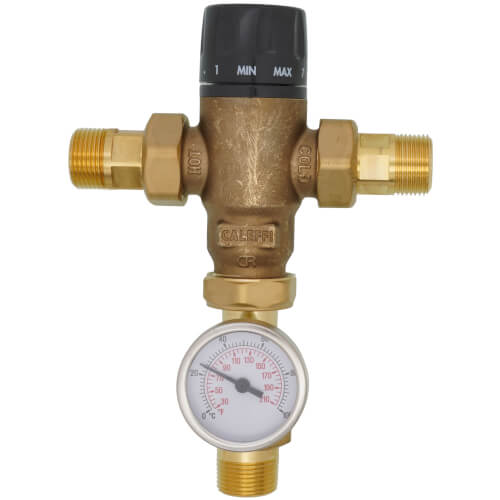

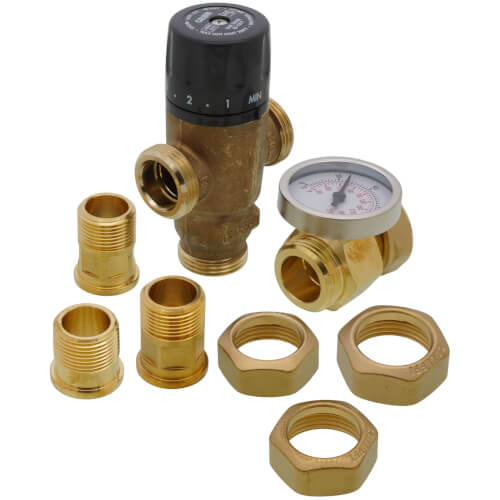

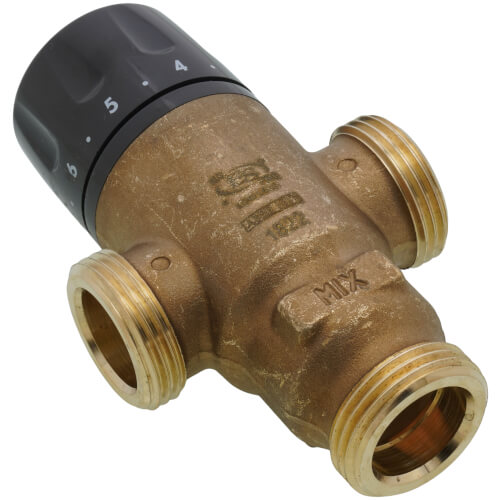

3/4" Male NPT MIXCAL 3-Way Adjustable Thermostatic Mixing Valve w/ Temp Gauge & Inlet Check Valves
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$216.52 each
In Stock
Get 12 Tomorrow, Jul 2
Order by 6PM, receive Tomorrow
Size:
3/4"
Connection Type:
MNPT x MNPT
Features:
Gauge
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT Connection
3/4"
3 Cv
150°F Max Temp
85°F Min Temp
85°F - 150°F
Description
–
The Caleffi MixCal™ 521 series three-way thermostatic mixing valve
is used in systems producing domestic hot water or in hydronic and
radiant heating systems. It maintains the desired output temperature
of the mixed water supplied at a constant set value compensating for
both temperature and pressure fluctuations of the incoming hot and
cold water.
The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
Features:
The valve has been specifically certified to ASSE 1017 and Low Lead Plumbing Law by IAPMO R&T.
Features:
- Low-lead brass body and fittings.
- Internal anti-scale materials.
- Locking set point knob.
- Meets requirements of ANSI/NSF 372-2011.
- Max. working pressure: 200 psi.
- Max. inlet temperature: 200ºF.
- Adjustable range: 85 - 150ºF.
- Min. flow for optimum performance: 1.3 gpm.
- Certified to: cUPC listed to ASSE 1017/
- CSA B125.3, Low lead.
Specs
–
| Features: | Gauge |
|---|---|
| Size: | 3/4" |
| Connection Type: | MNPT x MNPT |
| Connection Method: | Threaded |
| Max Pressure (PSI): | 200 |
| Temperature Range (F): | 85°F - 150°F |
| Type: | Adjustable |
| Max Temp (F): | 150°F |
| Min Temp (F): | 85°F |
| Material: | Brass |
| Body Pattern: | 3-Way |
| Standards Met: | ASSE 1017 |
| Application: | Point of Source |
| Lead Free: | Yes |
| Flow Capacity (Cv): | 3 |
