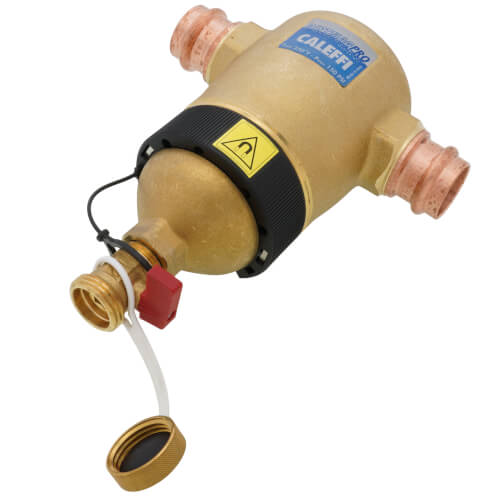

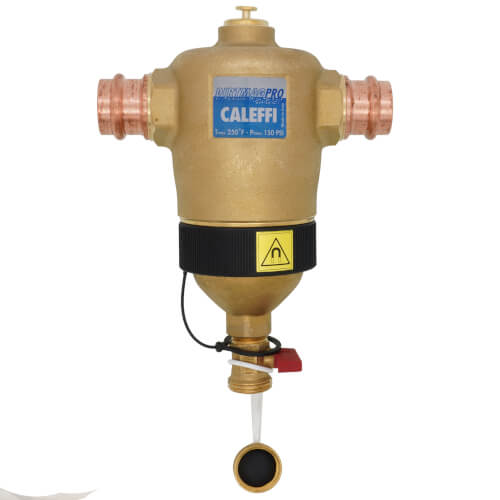

1" Press 5463M Series DIRTMAG Pro Dirt Separator w/ Dual Magnets
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$188.04 each
In Stock
Get 1 Tue, Oct 3
More Available
Order by 5PM, receive Tuesday
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Will this part work with my unit?
Click to see if this part is compatible with your unit.Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Press x Press Connection
Brass
1"
150 PSI
250°F Max Temp
32°F to 250°F
Description
–
1" Press 5463M Series DIRTMAG Pro Dirt Separator w/ Dual Magnets
In heating and air conditioning control systems, the circulation of water containing impurities may result in rapid wear and damage to components such as pumps and control valves. It also causes blockages in heat exchangers, heating elements and pipes, resulting in lower thermal efficiency within the system.
The dirt separator removes these dirt particles, collecting them in a large collection chamber from which they can be flushed even while the system is in operation. This device is capable of efficiently removing even the smallest particles, with very low head loss.
The DIRTMAG® PRO dirt separator with dual magnets extends the Caleffi dirt separator family by adding a powerful neodymium magnetic stack inside a drywell inserted into the top of the body within the flow stream. Additional magnetic flux increases the speed of magnetite (ferrous impurities) removal from the hydronic fluid for maximum protection.
Insulation shells are available separately for brass models.
In heating and air conditioning control systems, the circulation of water containing impurities may result in rapid wear and damage to components such as pumps and control valves. It also causes blockages in heat exchangers, heating elements and pipes, resulting in lower thermal efficiency within the system.
The dirt separator removes these dirt particles, collecting them in a large collection chamber from which they can be flushed even while the system is in operation. This device is capable of efficiently removing even the smallest particles, with very low head loss.
The DIRTMAG® PRO dirt separator with dual magnets extends the Caleffi dirt separator family by adding a powerful neodymium magnetic stack inside a drywell inserted into the top of the body within the flow stream. Additional magnetic flux increases the speed of magnetite (ferrous impurities) removal from the hydronic fluid for maximum protection.
Insulation shells are available separately for brass models.
Specs
–
| Product Type: | Dirt Eliminator |
|---|---|
| Size: | 1" |
| Connection Method: | Press |
| Connection Type: | Press x Press |
| Max Pressure (PSI): | 150 |
| Max Temp (F): | 250°F |
| Flow Rate (GPM): | 24 |
| Material: | Brass |
| Micron Rating: | 5 |
| Temperature Range (F): | 32°F to 250°F |
| Type: | Magnetic |
