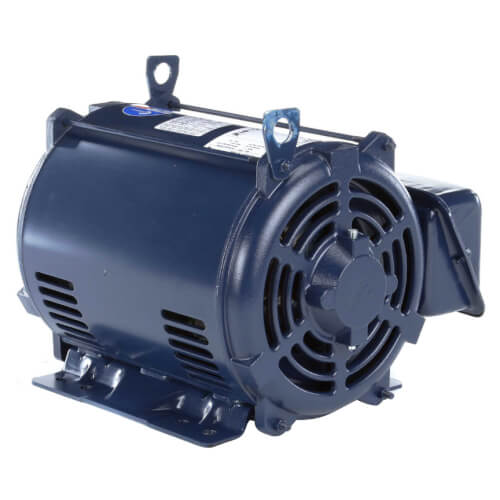

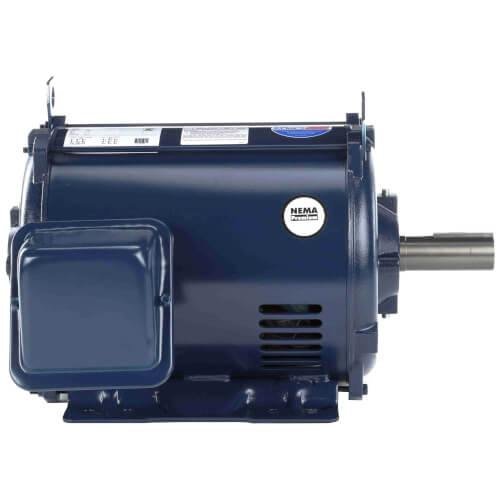

Main product image of 1-5/8" ODP Motor, 20 HP, 1800 RPM, Reversible (200-230/460V)

Hover image to zoom

1-5/8" ODP Motor, 20 HP, 1800 RPM, Reversible (200-230/460V)

Name: 1-5/8" ODP Motor, 20 HP, 1800 RPM, Reversible (200-230/460V)
Brand: Century
SKU: E407M2
Price: 2162.15 USD
Availability: OutOfStock

Brand:

Century

SKU:

E407M2

Rating:

(0)

Q&A:

(0)

1-5/8" ODP Motor, 20 HP, 1800 RPM, Reversible (200-230/460V)

Hover image to zoom

E407M2 has been discontinued

Discontinued August 18, 2023

This product was discontinued by the manufacturer.

This item replaces: S1-024-25992-000

Direct Replacement:

3-Phase General Purpose Motor (208-230/460V, 20 HP 1800 RPM)

Brand:

Marathon Motors

SKU:GT0062

(0)

VIEW REPLACEMENT

Product Highlights

–

230/460v

1765 RPM

CCW

20 HP

Rigid Base

49 Amps

Description

–

1-5/8" ODP Motor, 20 HP, 1800 RPM, Reversible (200-230/460V)

Features:

Applications: Pumps, fans, compressors, conveyors
Ball Bearings
Continuous Duty
Energy Efficient
Dripproof
NEMA Design B
Rigid Base
40º C Ambient
E+ Motors meet the requirements of the Energy Policy Act of 1992. E+3 motors exceed the requirements of the Energy Policy Act of 1992. E+3(NP) is NEMA Premium Efficient.

***Note: Image may not be actual representation of item .

Specs

–

Product Type:	Motor
Diameter (Inches):	1-5/8"
Type:	Polyphase
Horse Power:	20
Voltage:	230/460v
Duty:	Continuous
Speeds:	1
Phase:	3
Mount:	Rigid Base
Rotation:	CCW
Bearings:	Ball
Frame:	256T
Amperage:	49
Hertz:	60
Insulation Class:	F
RPM:	1765
Enclosure Type:	Open Drip Proof
Overload Protection:	None
Poles:	4
Max Ambient Temp (°F):	104°F
