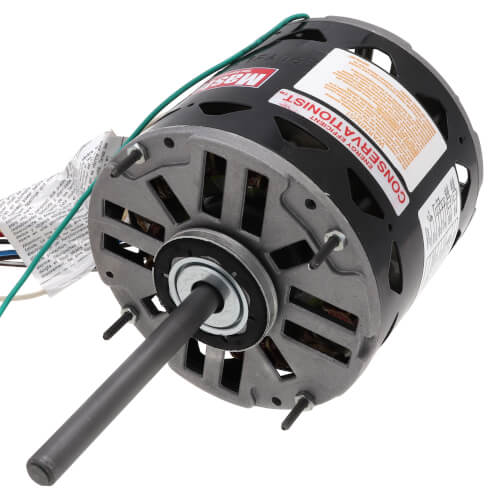

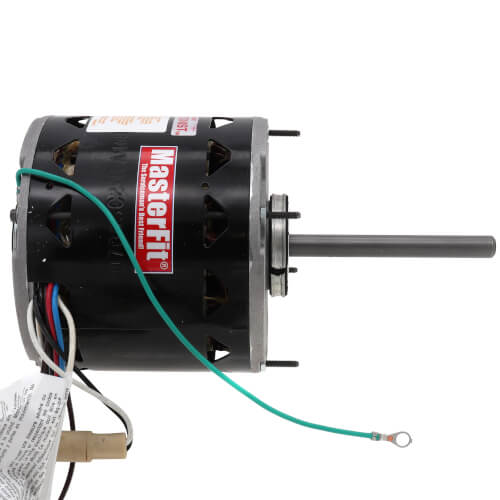

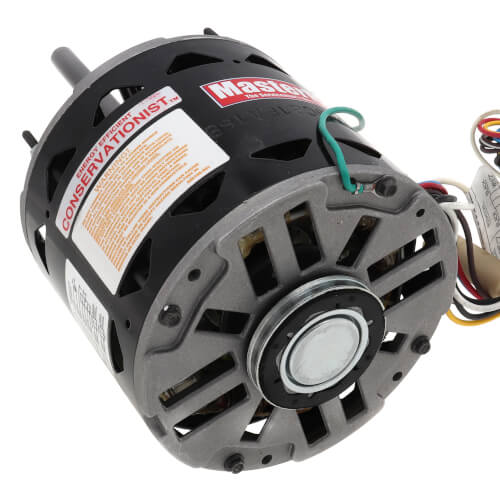

5-5/8" PSC Motor, 1/2 - 1/6 HP, 1075 RPM, Reversible (208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$169.68 each
In Stock
Get 65 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: FD6000
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
Reversible
1/2 - 1/6 HP
Resilient Ring - Extended Studs
3.9 Amps
Description
–
5-5/8" PSC Motor, 1/2 - 1/6 HP, 1075 RPM, Reversible (208-230V)
Features:
Features:
- MasterFit Pro - Direct Drive Fan & Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Shaft with Flat
- 36" Leads with Quick Connect Terminals
- Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band
Specs
–
| Product Type: | Motor |
|---|---|
| Type: | Permanent Split Capacitor |
| Diameter (Inches): | 5-5/8" |
| Horse Power: | 1/2 - 1/6 |
| Voltage: | 208/230V |
| Speeds: | 4 |
| Duty: | Air Over |
| RPM: | 1075 |
| Phase: | 1 |
| Poles: | 6 |
| Mount: | Resilient Ring - Extended Studs |
| Rotation: | Reversible |
| Bearings: | Sleeve |
| Hertz: | 60 |
| Frame: | 48 |
| Amperage: | 3.9 |
| Insulation Class: | B |
| Enclosure Type: | Open Air Over |
| Overload Protection: | Automatic |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
