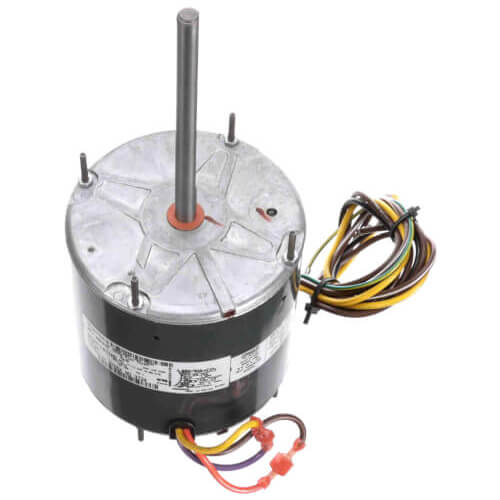

Main product image of 1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/2 HP, 1075 RPM (208-230V)

Hover image to zoom

1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/2 HP, 1075 RPM (208-230V)

Name: 1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/2 HP, 1075 RPM (208-230V)
Brand: Genteq Motors
SKU: 3734
Price: 181.85 USD
Availability: OutOfStock

Brand:

Genteq Motors

SKU:

3734

Rating:

(0)

Q&A:

(0)

1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/2 HP, 1075 RPM (208-230V)

Hover image to zoom

3734 has been discontinued

Discontinued May 29, 2023

This product was discontinued by the manufacturer.

Direct Replacement:

5-5/8" 2-Speed Outdoor Sleeve Bearing Motor (208-230V, 1075 RPM, 1/2 HP)

Brand:

Century

SKU:F1056S

(0)

VIEW REPLACEMENT

Product Highlights

–

208/230V

1075 RPM

Reversible

1/2 HP

Extended Studs

3.5 Amps

Description

–

Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with "belly band" or extended clamp screw mounting.

Features:

Permanent split capacitor
Standard efficiency designs
Sleeve or ball bearings
Designed for 370 Volt capacitor, not included
Mounting holes in shell for capacitor bracket
Water slinger on shaft
26 inch motor leads
Single phase
48 Frame

Specs

–

Motor:	Permanent Split Capacitor
RPM:	1075
Type:	Permanent Split Capacitor
Voltage:	208/230V
Horse Power:	1/2
Duty:	Continuous Air Over
Amperage:	3.5
Rotation:	Reversible
Speeds:	1
Mount:	Extended Studs
Bearings:	Ball
Enclosure Type:	Totally Enclosed Air Over (TEAO)
Poles:	6
Phase:	1
Overload Protection:	Thermally
Insulation Class:	B
Frame:	48
Max Ambient Temp (°F):	140°F
Motor Orientation:	Any
Approvals:	CSA UL
