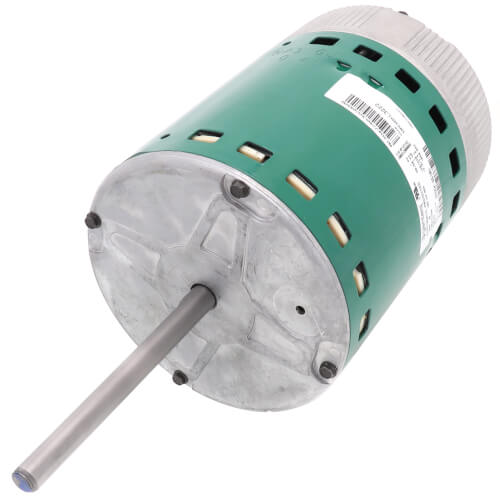

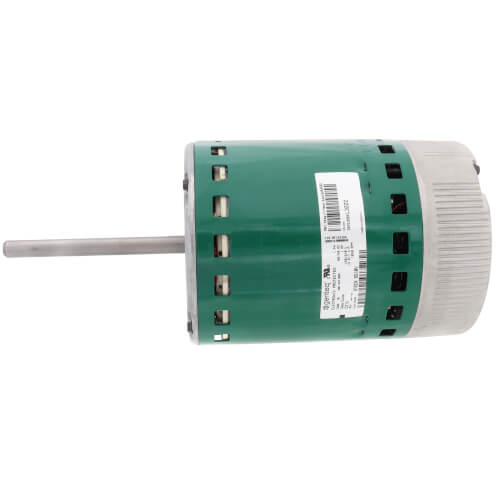

Evergreen VS Motor, 1 HP ( 120-240V, 1050 RPM, NEMA 48, CCW/CW)
Hover image to zoom

Evergreen VS Motor, 1 HP ( 120-240V, 1050 RPM, NEMA 48, CCW/CW)

SKU:
6510V
Rating:
(5)
Q&A:
(0)
Evergreen VS Motor, 1 HP ( 120-240V, 1050 RPM, NEMA 48, CCW/CW)
Hover image to zoom
$403.07 each
In Stock
In Stock
Get 16 Wed, Jun 26
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
120v, 120/240V, 240v
RPM icon
1050 RPM
Rotation icon
CW/CCW
Horse Power icon
1 HP
Mount icon
Round
Amperage icon
12.8, 7.4 Amps

Description

The Evergreen VS motor and Evergreen VS user interface are designed to replace Genteq constant airflow (variable speed) ECM indoor blower motors. The Evergreen VS product line is designed specifically to replace Genteq models 2.3, Eon and 3.0 motors. These motors represent the largest volume of variable speed motors used to date in HVAC OEM indoor blower motor applications.

Please note: When replacing a Genteq® motor 2.3 or Eon®, the Evergreen® VS user interface 5K010 is required and sold separately.

Features:
  • Pre-programmed
  • Plug-n-play
  • Dual voltage
  • Dual rotation
  • Truck stock
  • Two year warranty
  • Complete calls same day including after hours calls
  • Reduce time on call using part on truck
  • Built by same manufacturer as original motor
  • Maintains system performance and efficiency


Specifications:
  • 1HP
  • 120/240V
  • 12.8/7.4 FLA
  • CCW/CW Rotation
  • 1050 RPM
  • NEMA 48 Frame
  • 12.71” x 7.71”

Specs

Horse Power:

1

Voltage:

120v

120/240V

240v

Type:

ECM

Duty:

Continuous Air Over

Rotation:

CW/CCW

RPM:

1050

Mount:

Round

Amperage:

12.8

7.4

FLA:

12.8/7.4

Bearings:

Ball

Poles:

12

Enclosure Type:

Open Air Over

Phase:

1

Speeds:

1

Insulation Class:

B

Overload Protection:

None

Frame:

48

Max Ambient Temp (°F):

104°F

Motor Orientation:

Vertical Shaft Down
