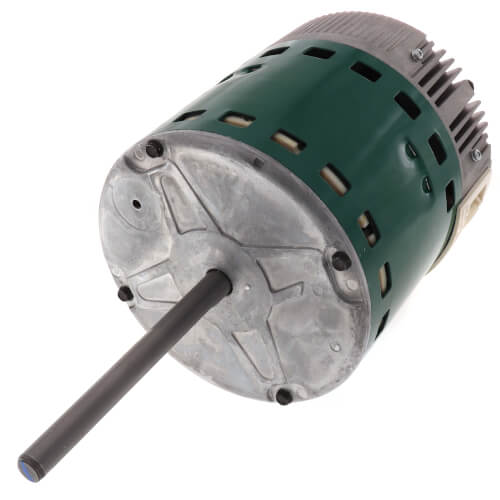

Evergreen VS Motor, 1/2 HP (120-240V, 1050 RPM, NEMA 48, CCW/CW)
Hover image to zoom

Evergreen VS Motor, 1/2 HP (120-240V, 1050 RPM, NEMA 48, CCW/CW)

SKU:
6505V
Rating:
(15)
Q&A:
(0)
Evergreen VS Motor, 1/2 HP (120-240V, 1050 RPM, NEMA 48, CCW/CW)
Hover image to zoom
$335.40 each
In Stock
In Stock
Get 38 Wed, Dec 6
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
240v, 120v, 120/240V
RPM icon
1050 RPM
Rotation icon
CW/CCW
Horse Power icon
1/2 HP
Mount icon
Round
Amperage icon
4.3, 7.7 Amps

Description

The Evergreen VS motor and Evergreen VS user interface are designed to replace Genteq constant airflow (variable speed) ECM indoor blower motors. The Evergreen VS product line is designed specifically to replace Genteq models 2.3, Eon and 3.0 motors. These motors represent the largest volume of variable speed motors used to date in HVAC OEM indoor blower motor applications.

Please note: When replacing a Genteq® motor 2.3 or Eon®, the Evergreen® VS user interface 5K010Vand 5K015 are required and sold separately.

Features:
  • Pre-programmed
  • Plug-n-play
  • Dual voltage
  • Dual rotation
  • Truck stock
  • Two year warranty
  • Complete calls same day including after hours calls
  • Reduce time on call using part on truck
  • Built by same manufacturer as original motor
  • Maintains system performance and efficiency


Specifications:
  • 1/2 HP
  • 120/240V
  • 7.7/4.3 FLA
  • CCW/CW Rotation
  • 1050 RPM
  • NEMA 48 Frame
  • 11.21” x 6.21”

Specs

Horse Power:

1/2

Voltage:

240v

120v

120/240V

Type:

ECM

Rotation:

CW/CCW

Duty:

Continuous Air Over

RPM:

1050

Amperage:

4.3

7.7

Bearings:

Ball

FLA:

7.7/4.3

Mount:

Round

Poles:

12

Enclosure Type:

Open Air Over

Phase:

1

Speeds:

1

Insulation Class:

B

Overload Protection:

None

Frame:

48

Max Ambient Temp (°F):

104°F

Motor Orientation:

Vertical Shaft Down
