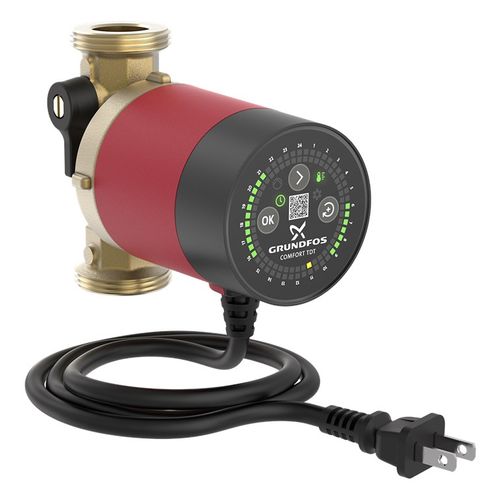

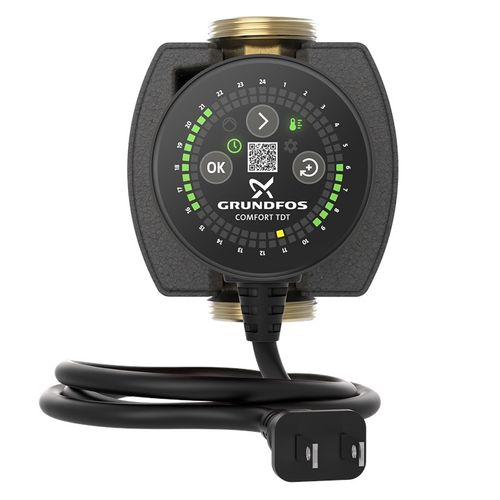

COMFORT 10-16 TDT BU/LC Recirculating Pump w/ Timer, Temperature Control & Line Cord, 115/208-230V
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$383.76 each
In Stock
Get 23 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 99812354
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2.2 MAX GPM
Stainless Steel
36°F to 203°F
Description
–
COMFORT 10-16 TDT BU/LC is high-efficiency and low energy consumption domestic hot water circulator with lead free brass housing. It is built with an ECM (Electronically Commutated Motor) for maximum performance.The pump provides instant hot water to homeowners and reduces water waste. Typical applications are water heater storage tank or water heater systems with a dedicated return line in one- or two-family homes. The pump has three control modes, timer, termperature and time/temperature combo. Control modes are designed for energy-conscious households that use hot water regularly on a daily basis. Homeowners can easily schedule pump operating times using push buttons and LEDs on the pump front screen.
When the temperature control mode is enabled, the pump monitors the water temperature and automatically adjusts its ON/OFF settings according to the highest temperature detected in the system. This ensures that the pump operates efficiently based on these adjusted ON/OFF temperatures.
Features:
Features:
- Adjustable digital 24h timer with 30 minute time periods
- Reduces water heater energy consumption by saving up to 56% compared to a continuously running pump.
- Designed for unlimited water hardness and robust against limescale
- Multiple installation positions, even vertical with the pump head pointing downwards
- Dry-running protection to prevent failure if system runs out of water
- Built-in temperature sensor
- Isolation valve and check valve integrated
- Insulation shell included
- Double insulated pump with line cord allows for quick installation without the need for a ground wire
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Type: | Dedicated Variable Speed |
| Application: | Heating |
| Material: | Stainless Steel |
| Temperature Range (F): | 36°F to 203°F |
| Max Flow (GPM): | 2.2 |
| Max Head (Ft): | 3.9 |
| Speeds: | 1 |
| Phase: | 1 |
| Hertz: | 60 |
| Includes: | Line Cord |
