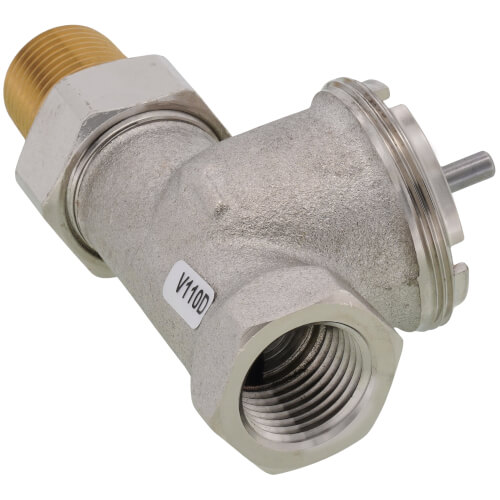

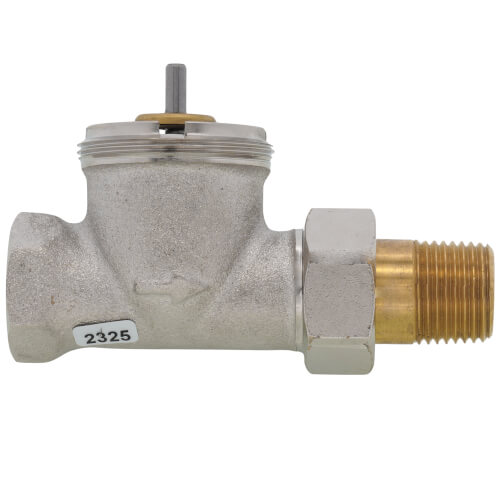

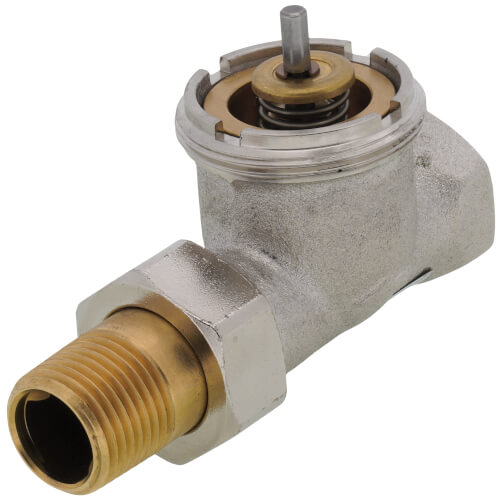

1/2" Straight Valve for High Capacity Radiator
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$70.44 each
In Stock
Get 29 Fri, Jun 12
Order by today, receive Friday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
Straight
150 (Hot Water), 15 (Steam) MAX PSI
FNPT x MNPT Union Connection
127000 BTU/hr (steam)
127000 BTU Capacity
Description
–
High Capacity Thermostatic Radiator Valves with T104 Actuators provide control of temperature by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.
Features
Features
- Designed with the higher capacity normally required by North American heating systems.
- Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
- Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
- All working parts are replaceable using service tool (MT110C1011) while valve remains in service, in-line, under pressure.
- Valves normally open without control mounted.
- Valves may be used with T104 Thermostatic Actuators.
- Meet ASHRAE Standard 102-1989.
- Application: Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units.
- Temperature Range (F): 248 F Maximum
- Temperature Range (C): 120 C Maximum
- Used With: T104
- Connection Type: Threaded
- Body Pattern Straight
- Pressure Ratings (psi): Hot Water--150 psi maximum; Steam--15 psi maximum
- Pressure Ratings (kPa): Hot Water--1034 kPa maximum; Steam--103 kPa
- Pipe Size (inch): 1/2 in.
- Pipe Size (DN): DN15
- Maximum Differential Pressure Ratings (Close-off) (psi): 17 psi maximum
- Capacity: high
- Capacity (Cv): 4.6 Cv
- Capacity (Btu/hr-steam): 127,000 Btu/hr
- Materials (Body): Nickel Plated Bronze
- Cartridge Change Tool: Yes - Use MT110C1011
Specs
–
| Application: | 2 Pipe Steam Hot Water |
|---|---|
| Size: | 1/2" |
| Body Pattern: | Straight |
| Max Pressure (PSI): | 150 (Hot Water) 15 (Steam) |
| Connection Type: | FNPT x MNPT Union |
| BTU: | 127000 BTU/hr (steam) |
| Capacity (BTU): | 127000 |
| Differential: | 17 psi |
| Temperature Range (F): | 248°F Max |
| Flow Capacity (Cv): | 4.6 |
| Capacity: | High |
| Position: | Normally Open |
| Material: | Nickel Plated Bronze |
