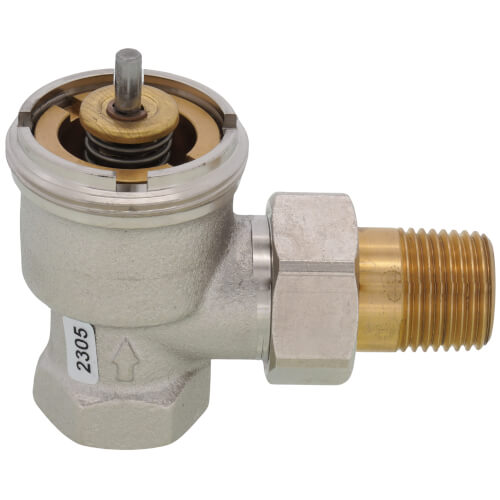

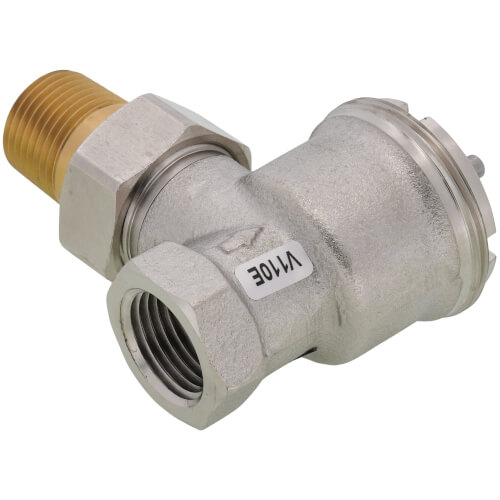

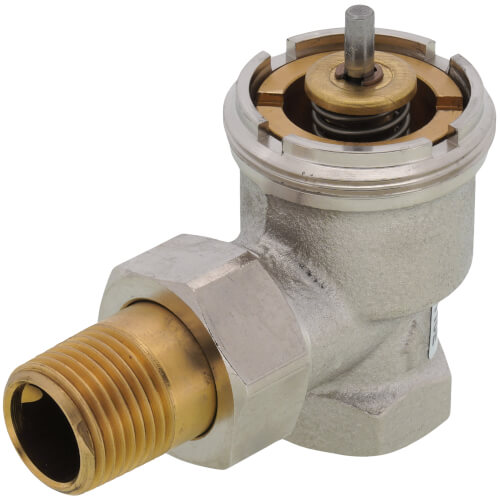

1/2" Angle Valve for High Capacity Radiator

NOTE: Actuator is required and must be purchased separately.

High Capacity Thermostatic Radiator Valves provide precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through free-standing radiators, convectors and other heating units with high capacity requirements.

• = Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
• Designed with the higher capacity normally required by U.S.A. heating systems.
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
• Nickel-plated bronze casted body with working parts in cartridge insert for ease of service.
• Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
• Require no electrical connections.
• All working parts are replaceable using service tool (MT100C1011) while valve remains in service, in-line, under pressure.
• Valves normally open without control mounted.
• Valves may also be used with MV110 Electric Zone Valve Actuator.
• Meet ASHRAE Standard 102-1989.

• Description : Angle Pattern 1/2 in. Valve for High Capacity Radiator
• Application Type : Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units
• Pipe Size (inch): 1/2 in.
• Pipe Size (DN): DN15
• Body Pattern: Angle
• Capacity: high
• Capacity (Cv): 4.6 Cv
• Capacity (Btu/hr-steam): 127,000 Btu/hr
• Connection Type: Threaded
• Pressure Ratings (Hot Water (psi)): 150 psi maximum
• Pressure Ratings (Hot Water (kPa)): 1034 kPa maximum
• Pressure Ratings (Steam (psi)): 15 psi maximum
• Pressure Ratings (Steam (kPa)): 103 kPa
• Differential Pressure Ratings (psi): 17 psi maximum
• Temperature Ratings (F): 248 F Maximum
• Temperature Ratings (C): 120 C Maximum
• Dimensions (in.): 1 in. x 2 9/16 in.
• Dimensions (mm): 25 mm x 65 mm
• Materials (Body): Bronze
• Used With: T104
