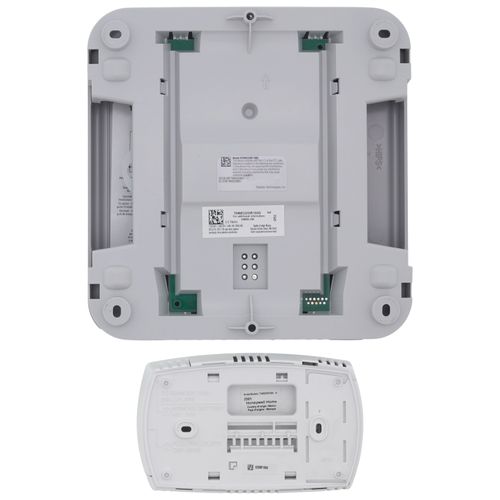

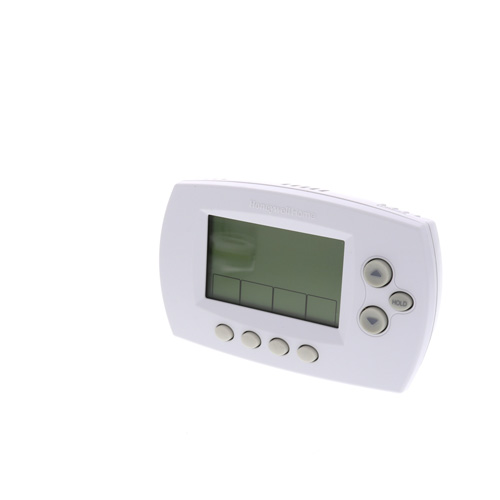

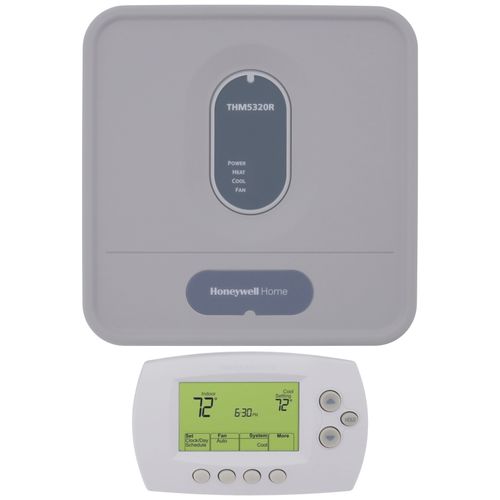

RedLINK Wireless FocusPro Programmable Thermostat Kit, YTH6320R1001
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$366.26 each
In Stock
Get 94 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (5)
This item replaces: T8665A1002, W8665A1009, YTH6320R1015
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1 Amps
2 Heat/2 Cool, 3 Heat/2 Cool Heat Pump
Programmable, 5-1-1 Day
Horizontal
Battery
40°F - 99°F
Description
–
Features

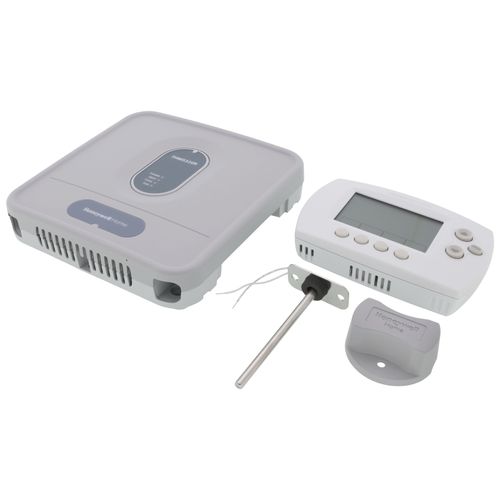

- Kit Includes: Wireless FocusPRO« Thermostat, Equipment Interface Module & optional return air sensor
- Powered by RedLINK reliability
- No interference with other wireless devices in the home
- Installs in minutes
- Displays outdoor temperature and humidity (outdoor sensor sold separately)
- 1 year battery life
- 2 month low battery warning Equipment Interface Module (EIM)
- All HVAC equipment is wired to the module
- Module receives communication from all wireless devices Return Air Sensor
- Works with the EIM to maintain safe indoor temperatures if power is lost at the wireless thermostat
- Same great features of the FocusPRO« thermostat - now wireless
- Choose from programmable or non-programmable kits
Specs
–
| Amperage: | 1 |
|---|---|
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
| Stages: | 2 Heat/2 Cool 3 Heat/2 Cool Heat Pump |
| Programmability: | Programmable 5-1-1 Day |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Comes with Sensor Fan Control Auto Changeover Works with Sensor Wireless |
| Power Method: | Battery |
| Changeover: | Auto Manual |
| Temperature Range (F): | 40°F - 99°F |
| Voltage: | 24V Low voltage |
| Wattage: | 10.8 to 30 |
| Wiring: | RAS Rh W2-Aux/E G Y W-O/B L Y2 R Rc C |
| Color: | White |
| Wi-Fi: | Yes |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.76 out of 71 reviews
96% would recommend this product
5 star
85%
4 star
13%
3 star
0%
2 star
0%
1 star
3%
Customer Images
Most Liked Positive Review
Excellent Product - Solved Temperature Issue
We have two thermostats but for some reason both were placed in the same zone - so it was difficult to get the right temperature in the area it controlled. Rather than relocate the thermostat, this wireless model was our best option. Works excellent and completely solved the problem. While the EIM is a little big (I placed it where the old thermastat was) it's not that bad.
HEAT PUMP OWNERS - I wired everything accurately and according to the diagrams but my system intially wouldn't work right. I went back to the instruction manual and noticed on page 9 the installer setup tables (just try it - I don't have any training and it was easy). NOTE - the thermostat default is 1 heat/1 cool conventional (for gas/oil furnaces). Under setup option 1, change that to correspond to your heat pump setup - mine was 5 - 2 heat/1 cool heat pump. Once I did that, it worked fine. Hope that helps others with similar issues.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Not good for businesses with out of the box schedules
We have a business that is often closed Monday through Thursday. Friday we need to have the business hot or cold for customers by the evening. This thermostat does not allow Friday to be programmed independently. So we either have to pay to heat and cool on days and hours we aren't here, or we have to go through hoops to get an employee to come in a couple hours ahead and set the thermostat. In today's world, I don't understand why there is still a Monday to Friday only option on these.
Showing 1-10 of 71 reviews

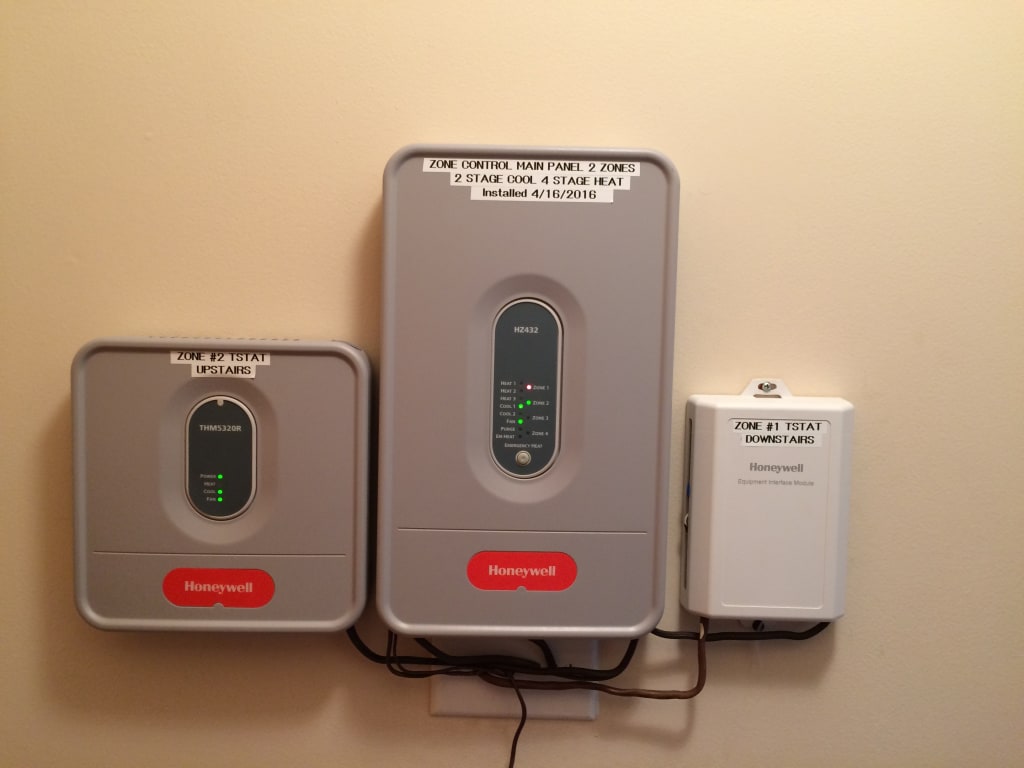

Great way to add a thermostat control when zoning
I use this all the time when doing a zoning install and there is no way to hardwire a thermostat.
lugnuts
Pittstown NJ
4 months ago
Verified Buyer
Was this review helpful to you?
I would buy this unit again, absolutely!
I made a big mistake while preparing our home for sale. Thinking I was cutting old phone cords and pulling them out of the wall, later that evening we had no heat! Long story short, I had cut and pulled out the wire connecting the second floor to the furnace in the basement. My oil and furnace maintenance company recommended the Honeywell Wireless thermostat. I ordered it and after they installed it - we had heat again. The system is wireless bluetooth and works perfectly. Highly recommend this unit.
Rob
Massachusetts
1 years ago
Verified Buyer
Was this review helpful to you?
Works like a Swiss watch
I used it on a finish house that was too complicated to run a wire for the air conditioner
Ruben
New York
3 years ago
Verified Buyer
Was this review helpful to you?
Works like a Swiss watch
I use this for controlling air conditioner that was to difficult on a finish house to run a wire to the thermostat
R
New York
3 years ago
Verified Buyer
Was this review helpful to you?
Excellent product
This wireless thermostat, used with the remote, solved a problem we have had with out two story home, We leave the remote in our upstairs bedroom, and set the remote to control our unit when we are upstairs, then set the thermostat to take control when we come down in the morning. Wish we had this 30 years ago.
AM
Marion County, FL
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again.
This is great if you cannot wire a new thermostat. It is truly wireless.
Pam
Virginia
3 years ago
Verified Buyer
Was this review helpful to you?
Would buy again
Worked as intended, can really put this thermostat anywhere. Installed module in basement and thermostat on second floor. Works awesome.
Curtis
Albany, New York
4 years ago
Verified Buyer
Was this review helpful to you?
Terrific product
Our original thermostat was located in an alcove where the builder installed it. It never seemed to sense the room temperature very well and it seemed like it ran forever. Our AC vendor told us it should be in a well ventilated room so it could sense the room air temp. We purchased the thermostat and he installed it. He told us that the thermostat came with a return air probe that to the thermostat the temp of the return air. After installation and we used it for a few days it was surprising not to hear the AC to run for 10 minutes but only 3-4 ,minutes. I've never been eager to see an electric bill but from what I'm hearing how long this unit runs now it has to be a substantial savings.
Almost forgot since this unit is bluetooth you can install it anywhere there are no wires and I used 3m large velcro pads to place it around the room for best performance. Great product sorry I didn't know about this sooner.
Johnny S
Clayton nc
4 years ago
Verified Buyer
Was this review helpful to you?
Great product selection and fast delivery
Always great delivery time, communication and quick to make things right if any damage or delays.
Brian C.
Avon Lake, Ohio
4 years ago
Verified Buyer
Was this review helpful to you?
Hunnywell RedLink System makes for an easy installation
We needed to replace a 5 wire thermostat and didn't want to replace drywall so the wireless system was a good solution. Only down side is the thermostat isn't touchscreen.
Steve
Fairfax va
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
11 Questions11 Questions
Q: Does this include everything needed to replace a wired thermostat in this package? ... it seems that the only thing this unit can not do is connect to wi-fi ... and that can be added with an additional product, is that the case?
Asked by Pdo 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the main components required to get the thermostat running are all included. The internet gateway can be added later to control the thermostat over the internet.
Was this review helpful to you?
Q: What does the wireless focus pro programmable thermostat kit consist of? In the photo it shows several things. In a previous question, I was told that the EIM was not included. The product description is not clear about what is in the kit. I am needing a kit for a wireless connection.
Asked by Steph 10 years ago
Add your answer
Verified Reply- Supplyhouse Staffit includes the stat, EIM and sensor.
Was this review helpful to you?
Q: Will this work with the Honeywell app via wifi to control temp, schedule etc just like the regular wifi Honeywell thermostat?
Asked by Charlie 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes it will but you need the internet gateway for that.
Was this review helpful to you?
Q: I am a consumer. All I want is the flexibility to move a sensor with in the same space for heat only. Can I do this with this unit. Yth6320r1001 thanks
Asked by Armand 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes as long as the wireless indoor sensor was purchased along with this thermostat kit.
Was this review helpful to you?
Q: I'm installing six Equipment Interface Modules to connect six wireless thermostats. Does each EIM need its own 24v transformer, or can one 24v transformer power all six EIMs?
Asked by Tom 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffdepends on on the amperage rating of the transformer and how many accessories are drawing power from the interface module.
Was this review helpful to you?
Q: Does the Honeywell YTH6320R1001 Wireless FocusPro Thermostat have fan speed control on the wall unit or the remote?
Asked by greg 14 years ago
Add your answer
-
Fan control is on T-Stat
Was this review helpful to you?
-
Nope, no fan speed control. Just fan on or fan off.
Was this review helpful to you?
-
No. The unit toggles between on and AUTO as your options.
Was this review helpful to you?
-
On the remote
Was this review helpful to you?
Q: Can this unit be installed like a traditional thermostat (wired directly) without using the EMI?
Asked by Me 14 years ago
Add your answer
Verified Reply- PexSupply StaffIt cannot. This thermostat requires the EIM in order to function.
Was this review helpful to you?
- Another PexSupply Customer
No it cant be used wired as the thermostat part has no wire terminals on it.
Was this review helpful to you?
Q: Would this system work with a hydronic heat system? I have 5 zones, I'm trying to figure out a way to control all without walking the whole house, will it help with that as well?
Asked by Todd 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis thermostat works in a hydronic heating system, but you'll always need a separate thermostat for every zone. You may want to look at Honeywell's RedLINK Internet Gateway, which is compatible with wireless FocusPRO thermostats and allows you to control up to four separate thermostats over the internet.
Was this review helpful to you?
Q: Will the thermostat automatically reconnect to the Internet after a power outage,or do you have to hit the connect button manually,also will it send an alarm e mail that there is a power outage?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the control will reconnect when power is restored following a power loss. To have e-mails sent out, you would need to go into the settings menu for that account or location. Here you would find the option of being notified should the thermostat lose connection with the Gateway or if the Gateway loses connection with the account. Other selections would include being notified on a regular basis (which is selectable) that there is still a connection issue and/or being notified when the connection has been restored.
Was this review helpful to you?
Q: I need to relocate 7 thermostats all of them all ac/heat gas air but all are different brand names. I want to put them all In my office so my customers can't keep changing or messing up the settings Or freezing up my compressors, So how do I get the temp readings in the 7 rooms. Since they Are all different at all times, can you recommend . A setup this is for a banquet hall in CT.
Asked by G M 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou may want to consider Honeywell VisionPRO thermostats with C7189U1005 indoor sensors. You would need to wire one indoor sensor per thermostat. Using a sensor overrides the thermostat's internal sensor.
Was this review helpful to you?
