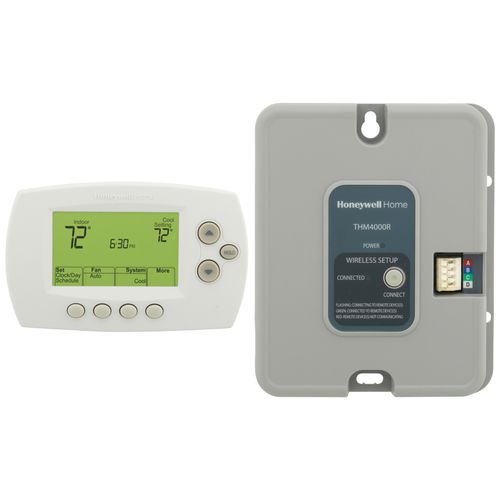

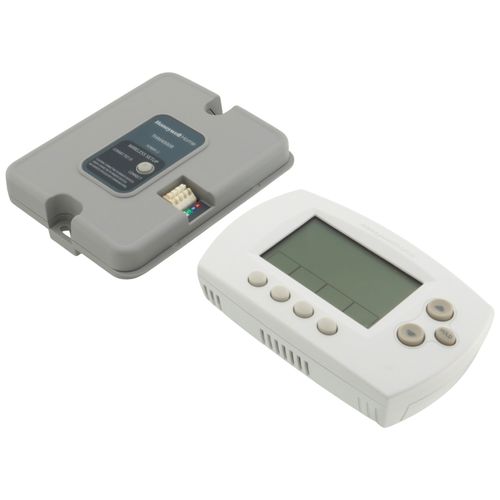

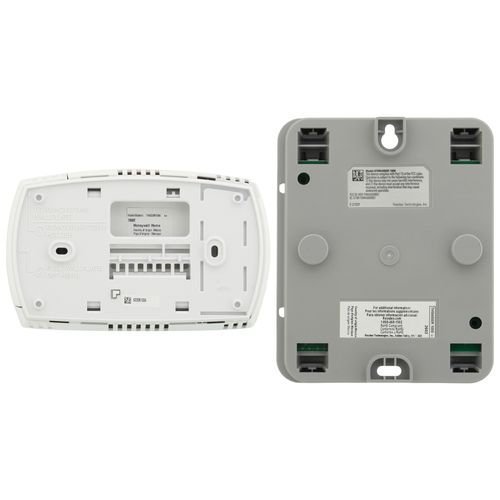

RedLINK Wireless Programmable Zoning Adapter Kit for use with TrueZONE Panels, YTH6320R1023
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (5)
Product Highlights
Description
- Allows you to easily add to a TrueZONE system without running new wires
- Powered by RedLINK reliability
- No interference with other wireless devices in the home
- Choose from programmable or non-programmable kits. Kit Includes: Wireless Adapter
- Allows for wireless zoning when used with HZ432 or HZ322 TrueZONE panels (sold separately)
- Adapter receives communication from all wireless devices. Wireless FocusPRO« Thermostat
- Same great features of the FocusPRO« thermostats - now wireless
- Installs in minutes
- Displays outdoor temperature and humidity (outdoor sensor sold separately)
- 1 year battery life
- 2 month low battery warning
Specs
| Amperage: | 1 |
|---|---|
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
| Stages: | 3 Heat/2 Cool Heat Pump 2 Heat/2 Cool |
| Programmability: | Programmable 5-1-1 Day |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Options: | Auto Changeover Works with Sensor Wireless Fan Control |
| Power Method: | Battery |
| Changeover: | Auto Manual |
| Temperature Range (F): | 40°F - 99°F |
| Voltage: | 24V Low voltage |
| Wattage: | 10.8 to 30 |
| Wiring: | W2-Aux/E W-O/B R Y2 G Rh Rc L RAS C Y |
| Color: | White |
| Wi-Fi: | Yes |
Contact
Happy Independence Day!
Compare Similar Products
Heat Pump
2 Heat/2 Cool
5-1-1 Day
You May Also Need
Product Reviews
Works great
Great product
No problem!
Great product
good product
Product Q&A
7 QuestionsQ: It looks like you can use this with a TrueZONE HZ432 and connect it to a 4 zone taco circulator relay on a boiler. Is this correct?
Asked by Andy 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Andy, thanks for writing in. Yes, this can be used in conjunction with a TrueZONE HZ432 panel and connect to a Taco relay in your boiler system.
Q: Can this thermostat be controlled by I-phone.
Asked by ML 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, this thermostat that does not have Wi-Fi/internet capabilities.
Q: What is included in this kit? One thermostat and one wireless adapter? Can I have the part numbers so that I know how to order? Thanks
Asked by Marco 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffTH6320R1004 Wireless FocusPRO® 5-1-1 Programmable Thermostat; THM4000R1000 Wireless Adapter is what is included.
Q: Is there a clicking noise (like regular wired thermostats) from the thermostat when it activates a stage? I assume not (since there are no wires), but need to know for sure as this thermostat shall be installed in bedrooms and we are very sensitive to any noise. Thank you.
Asked by katjes 13 years ago
Add your answer
We have used several of the wireless thermostats and never had an issue with clicking noise. Just be certain the customer knows how to check for low battery and replace it when needed. Sent on the Sprint® Now Network from my BlackBerry®
No, it doesn't make any noise. I've installed one of these in my bedroom, and one in one of my children's' rooms. I've never heard any noise coming from these, at all. I'm familiar with the click you're describing, as I also have a wired thermo in another zone. This is a stealthy little thermo. It doesn't even beep when you get the occasional "battery low" alarm.
No click, it was one of the main reasons they designed this t-stat.
Q: is the thermostat a zone? if i have no other zones, do i still need a TRUE ZONE panel?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffEvery zone requires an individual thermostat. There is no need for a TrueZONE panel if you only have one zone.
if you only have one thermostat then you have a single zone house there is no need for a true zone panel unless you wish to break your house up into multiple zones
Q: Can this system be used to control multiple heating and air conditioning units ideally what I would like to do is control 4 heating and air conditioning units from one location with one thermostat if possible if not 4 thermostats from one location thanks Rick
Asked by Rick 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis kit is designed to be used with Honeywell's forced air zoning panels such as the HZ432. The YTH6320R1023 allows you to easily add to a TrueZONE system without running new wires. It is not designed for the application you are speaking of.
Q: Will this kit work with a Lenox Harmony III 4 zone system
Asked by Michael 16 years ago
Add your answer
Verified Reply- PexSupply StaffWe are not familiar with the Lennox system. Please confirm with an installer that the wiring will be compatible.
