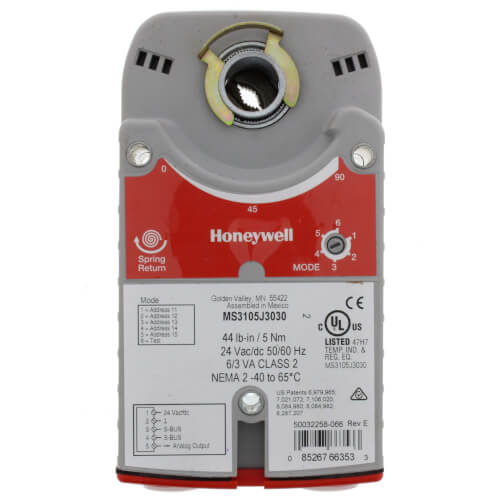

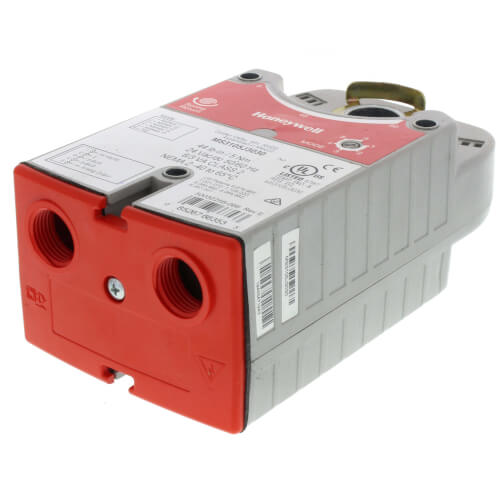

Main product image of Spring Return 44 lb-in. 5 Nm Direct Coupled Actuator
Magnifying glass
Hover image to zoom

Spring Return 44 lb-in. 5 Nm Direct Coupled Actuator

Brand:
Honeywell
SKU:
MS3105J3030
Rating:
(0)
Q&A:
(0)
Spring Return 44 lb-in. 5 Nm Direct Coupled Actuator
Magnifying glass
Hover image to zoom
$340.33 each
In Stock
In Stock
Get 6 Mon, Jun 15
Order by today, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Torque
44 lb-in Torque
Product Highlight: Temperature Range (F)
-40°F to 150°F
Product Highlight: Mount
Direct Coupled

Description

–
The MS3105 is a 44 lb-in (5Nm), spring return direct-coupled, 24 Vac/dc actuator that accepts Sylk-enabled control for use with the JADE Economizer.

Features:
  • Brushless DC submotor with electronic stall protection on all models
  • Self-centering shaft adaptor (shaft coupling) for wide range of shaft sizes
  • Access cover to facilitate connectivity
  • Durable plastic housing with built-in mechanical end limits
  • Spring return direction field selectable
  • Shaft position indicator and scale
  • UL (cUL) listed and CE compliant
  • All models are plenum rated per UL873

    • Specs

    –
    Actuator Type:

    Valve

    Damper

    Product Type:

    Actuator

    Temperature Range (F):

    -40°F to 150°F

    Application:

    HVAC

    Hertz:

    50

    60

    Torque:

    44 lb-in

    Fail Safe Mode:

    Spring Return

    Operating Humidity:

    5 to 95% RH, non-condensing

    Control Signal:

    SPDT

    Mount:

    Direct Coupled
