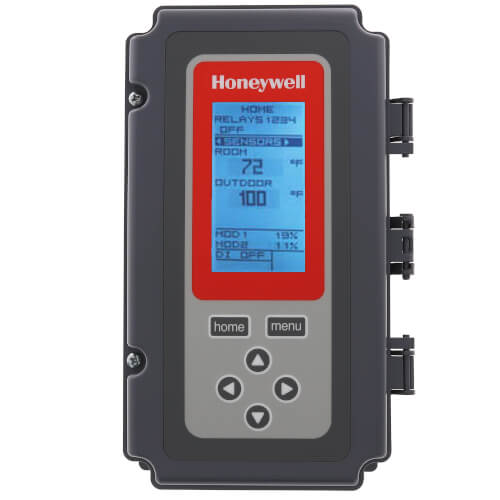

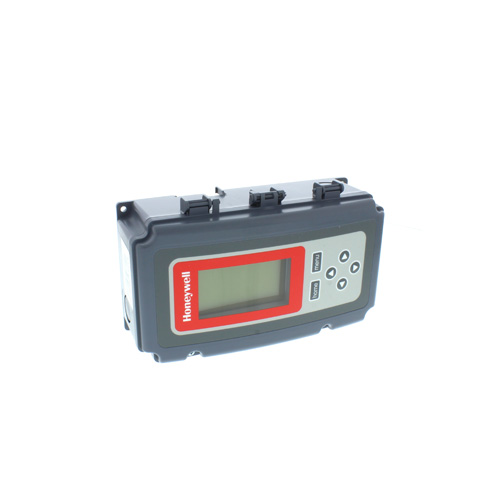

Electronic Temperature Controller with 1 Temperature Input, 1 SPDT Relay, 1 Sensor Included
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$224.11 each
In Stock
Get 26 Thu, Jun 11
Order by today, receive Thursday
MANUALS (2)
This item replaces: T675A1458, T675A1136, T7079A1053, T6031D1031, T775A1001, T7079A1046, T7079A1012, T6031C1058, T7079A1004
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V, 120v, 240v
248°F Max Temp
-40°F Min Temp
8.15625" Height
4-13/32" Width
2-15/16" Depth
Description
–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Features
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Standard-NEMA 1
- Relay Outputs: 1 SPDT
- Sensor Inputs : 1
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 1
- Sensors Included: 50021579-001 (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
- Replaces: T775A1001
Specs
–
| Application: | Electronic Remote Temperature |
|---|---|
| Sensor Inputs: | 1 |
| Output: | Relay SPDT |
| Voltage: | 24V 120v 240v |
| Hertz: | 50 60 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 125 VA Pilot Duty 58.8 ALR 9.8 AFL 1/2 hp |
| Contact Ratings 240v: | 29.4 ALR 1/2 hp 4.9 AFL 125 VA Pilot Duty |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC 50021579-001 |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Temperature Range (F): | -40°F to 248°F |
| Max Temp (F): | 248°F |
| Min Temp (F): | -40°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Ambient Operating Temperature: | -40°F to 125°F @ 50 Hz -40°F to 140°F @ 60 Hz |
| Replaces: | T775A1001 |
| Features: | NEMA-1 Enclosure |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Voltage
Contact Ratings 120v
Contact Ratings 240v
Sensor Type
CURRENT ITEM
Electronic Remote Temperature
24V
120v
240v
120v
240v
125 VA Pilot Duty
58.8 ALR
9.8 AFL
1/2 hp
58.8 ALR
9.8 AFL
1/2 hp
29.4 ALR
1/2 hp
4.9 AFL
125 VA Pilot Duty
1/2 hp
4.9 AFL
125 VA Pilot Duty
1097 ohm @ 77 F PTC
50021579-001
50021579-001
You May Also Need
1 Replacement Part
1097 Ohm Standard Temperature Sensor
SKU: 50021579-001
Honeywell
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 9 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-9 of 9 reviews
Supply House Service
Not only are the prices competitive the service is stellar. When I need certain type of parts or equipment for our farm I look to supplyhouse.com first.
Gant Family Farms
Bandon, Or
12 months ago
Verified Buyer
Was this review helpful to you?
Recommend & would buy again
Needed this type of stat with sensor to control three tube heaters tied together.
Controller worked/working well & was at a good price ++ it was in stock.
RF
Virginia Beach, VA
4 years ago
Verified Buyer
Was this review helpful to you?
Love these
Backlit light and easy to figure out how to automate your refrigeration systems on a schedule
Mark M
Melbourne fl
6 years ago
Verified Buyer
Was this review helpful to you?
I did buy this again.
These are used to control the time/ temperature of pools at Harbin Hot Springs resort, currently under rebuilding. Superior to others we have tried.
Amir
Middletown CA
8 years ago
Verified Buyer
Was this review helpful to you?
The temperature controller is controlling the temperature
Used it for pool heater where the temperature difference can be very noticeable..
Hurk
Westchester, NY
9 years ago
Verified Buyer
Was this review helpful to you?
Great for a grow room
I use this in my grow room. Works amazing, very very accurate. More accurate than a digital WiFi programmable thermostats.
Joe
Detroit
9 years ago
Verified Buyer
Was this review helpful to you?
Works Great
As described. Good price, Fast shipping.
Krieger
Hasitngs, NE
9 years ago
Verified Buyer
Was this review helpful to you?
I am buying this again Very nice product
Simple installation nice features and I know nothing about this field, just using common sense, just make sure to use the accompaning sensor that comes with and your good to go!
Char1ieco
Danbury CT.
15 years ago
Verified Buyer
Was this review helpful to you?
Versatile Thermostat
I have it hooked to my solar panel and two pumps. Works perfectly! With temps above 160 I needed a thermostat that had a remote sensor and a wide temp range. This is the one! My only regret is that I should have purchase a model that can handle additional sensors. The next model up adds a nice differential temp setting.
Sun Dog
Minneapolis MN
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: outdoor infared heater 8000 watts. can it handle this?
Asked by doug 10 years ago
Add your answer
- Joe
It can handle anything, but not directly. This is only a pilot device, made to be connected into a control circuit. If your usage device doesn't have a control circuit where a thermostat could be connected, you would then need to add a contactor. Without more detailed information on the heater that you are trying to control, that's all that I can tell you. Joe
Was this review helpful to you?
Q: Good Day, I have two (2) questions: 1. Can the unit display the temperature in °C and °F? 2. How long is the wire for the probe that is supplied with the unit? Thanks, Trinidad
Asked by Karen 12 years ago
Add your answer
-
Hi: 1) Yes, there is a menu setting that changes the units from Fahrenheit to Centigrade. 2) The sensor supplied with the unit only has a very short piece of wire attached. You can however extend it with low voltage cable, out to 1000’ or so. Joe
Was this review helpful to you?
