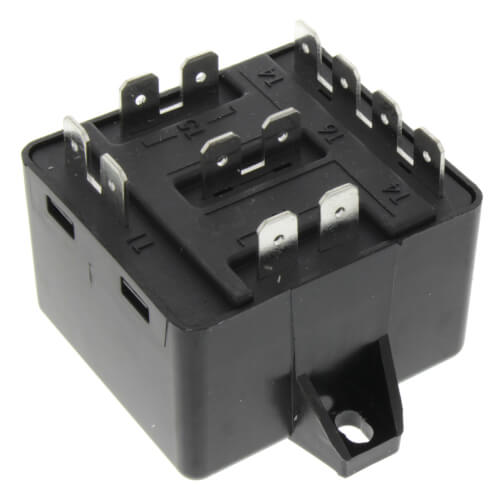

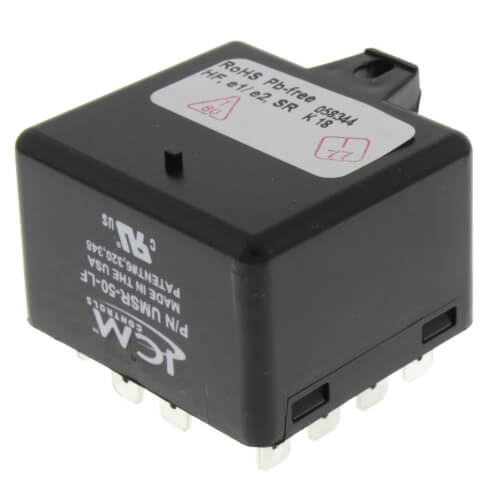

UMSR-50 Universal Motor Starting Relay
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$45.22 each
In Stock
Order by 6PM, receive Monday
This item replaces: UMSR-50
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Class B (130°C); Conforms to IEC 1000-standards (6kV impulse/6kV contact)
Description
–
ICM's Universal Motor Starting Relay incorporates patented differential voltage sensing and a non-positional mounting configuration to offer a single replacement for all standard potential relays. Great way to reduce inventory. Ideal for A/C, commercial refrigeration, heat pump or any single phase motor application up to 10 HP
Features
Features
- Replacement for all standard potential relays
- Patented differential voltage sensing
- No user-adjustments required
- Non-positional mounting configuration
- Intelligent capacitor discharge circuitry (E-Series models only)
- 50A switching capabilities
- Universal mounting bracket for easy installation
- .250" quick connect termination
- Safety timer
Specs
–
| Product Type: | Starting Relay |
|---|---|
| Voltage Rating Input: | 110-270 VAC (Single Phase) |
| Max. Voltage Contact Rating Input: | 502 VAC (absolute) |
| Motor Power Rating: | Up to 10 HP |
| Operating Position: | Non-positional |
| Safety Time Out: | Approx. 1-second per 100 microfareds |
| Insulation: | Class B (130°C); Conforms to IEC 1000-standards (6kV impulse/6kV contact) |
| Consumption: | 5VA max |
| Contact Ratings: | 50A (break only), 400 VAC cos Ø= 0.7 to 0.8 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.71 out of 7 reviews
100% would recommend this product
5 star
86%
4 star
0%
3 star
14%
2 star
0%
1 star
0%
Showing 1-7 of 7 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
No instructions
We use these for phase converters. They previously came with terminals (which we did not use) and wiring instructions, which we did use. Now, we had to go online to get the instructions, which is OK, but Supplyhouse does not have a link. You need to go to a competitive supplier to get them. Shame.
CJ
Missouri
2 days ago
Was this review helpful to you?
Perfect
Perfect replacement for my 30+ year old one that fried
Jim
Port Isabel, Texas
1 years ago
Verified Buyer
Was this review helpful to you?
Quick shipping! Thanks!
Easy to order online.
Ace
Springfield, Ohio
2 years ago
Verified Buyer
Was this review helpful to you?
Works well for my ROC
Built a rotary phase converter and many universal PR's wouldn't work and thankfully this one did without any hesitation or modification. Used this with a 20HP with 40 amp contractor fyi
Gene
Portland, OR
2 years ago
Verified Buyer
Was this review helpful to you?
Quick and no hassle
Quick and no hassle
FErnando CAss
Miami FL
5 years ago
Verified Buyer
Was this review helpful to you?
Definitely buy this again
easy to use and worked great
mc
Wi
6 years ago
Verified Buyer
Was this review helpful to you?
Awesome Service
These were priced well, fast service, helpful customer service.
Sarah
Ashland, OH
6 years ago
Verified Buyer
Was this review helpful to you?
