CS-SS Pre-Packaged Crawl Space Sump System

SKU:
14940655
Rating:
(54)
Q&A:
(5)

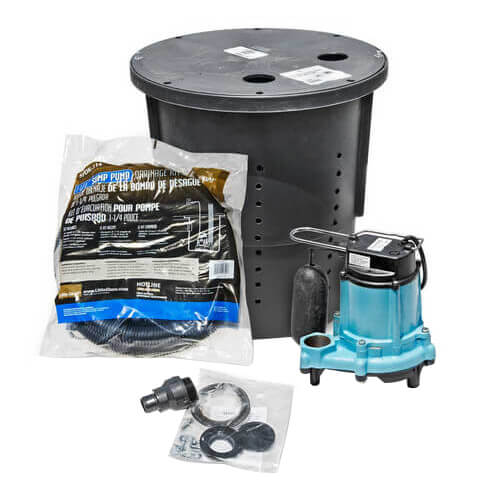

CS-SS Pre-Packaged Crawl Space Sump System
Magnifying glass
Hover image to zoom
$314.16 each
In Stock
In Stock
Get 8 Mon, Jul 20
Order by today, receive Monday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Product Highlight: Horse Power
1/3 HP
Product Highlight: Voltage
115V
Product Highlight: Amperage
10 Amps
Product Highlight: Wattage
750 Watts
Product Highlight: Flow at 5 FT Head
50 GPM
Product Highlight: Discharge
1-1/4" FNPT

Description

An ideal solution to help prevent water and moisture from collecting in the low areas of your crawl space. Removing this moisture aids in prevention of mold and fungus which causes allergies and odors, as well as moisture damage to wood floors, insulation and metal ductwork. Also helps minimize structural damage from freezing water which can cause your foundation to buckle. The CS-SS can also be used to help prevent water from standing in low lying problem areas such as yard, patio, driveway and other areas around your home.

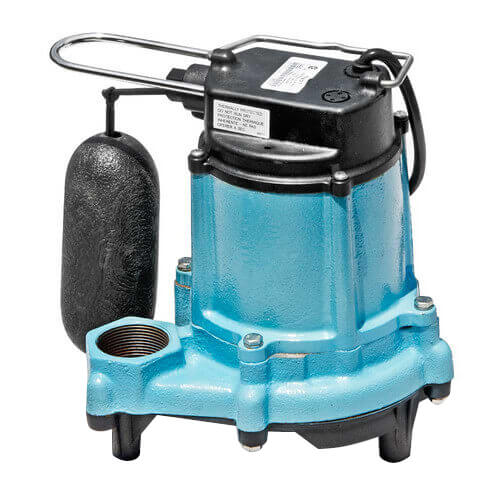

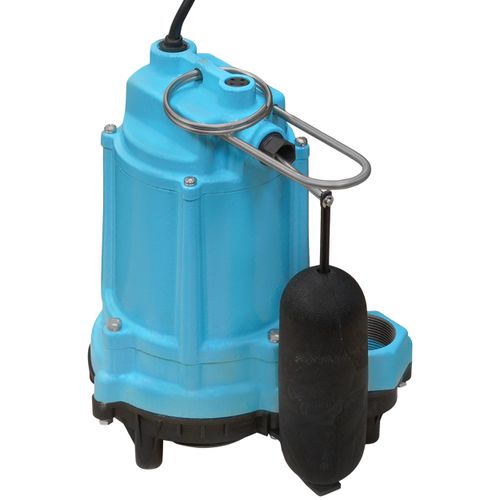

  • Cast iron pump housing with protective epoxy coating for corrosion resistance
  • Handles liquid and solid waste material up to 1/2" dia.
  • 1/3 HP shaded pole motor with thermal overload protection
  • Automatic operation has "on" level at 7"-10" and "off" level at 2"-5"

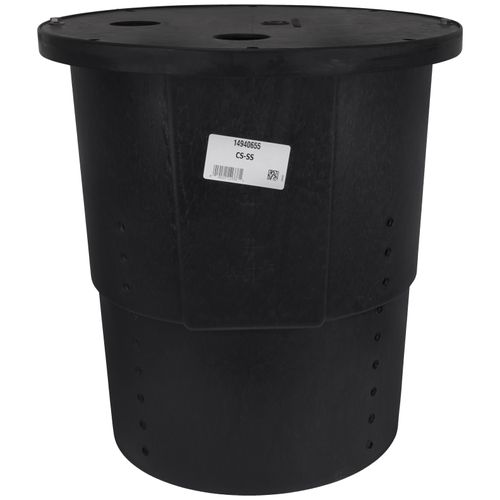

  • Intergal snap action float switch, 21" x 22" perforated basin, light weight and made of corrosion resistant polypropylene
  • Structural foam cover with slip fit flanges

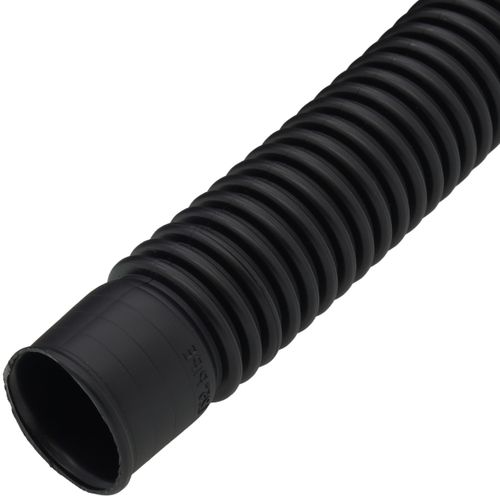

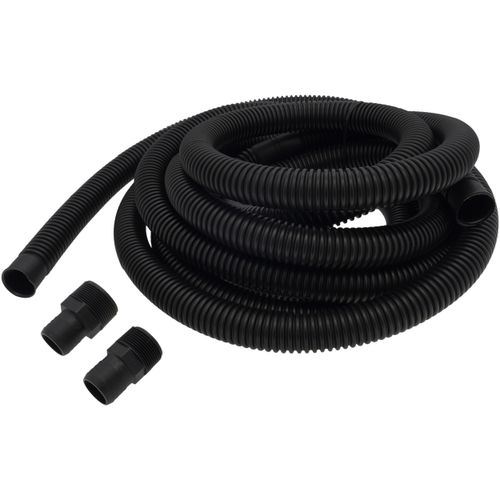

  • 1-1/4" x 24' sump pump discharge hose kit with adaptors and hose clamps

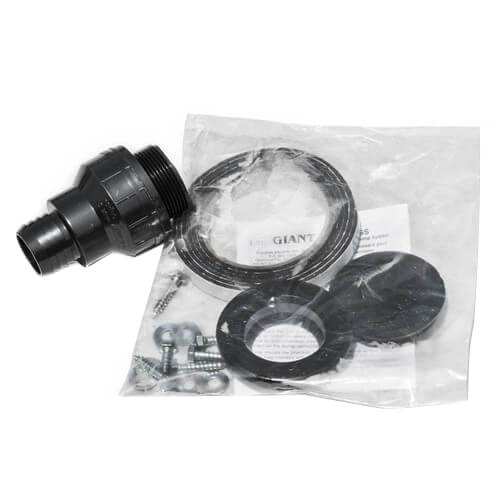

  • 1-1/2" MNPT x 1-1/4" barbed check valve
  • Pump is UL and CSA approved

Specs

Shutoff Head (ft.):

20'

Type:

Automatic

Application:

Plumbing

Horse Power:

1/3

Voltage:

115V

Amperage:

10

Wattage:

750

Flow at 5 FT Head:

50 GPM

Flow at 10 FT Head:

42 GPM

Flow at 15 FT Head:

27 GPM

Approvals:

UL/CSA

Weight (lbs):

27 lbs

Discharge:

1-1/4" FNPT

Solids Size:

1/2" max

Warranty:

2 Year

Contact

Help Face
CALL US
Question? Call or text 888-757-4774
+
Help Face

Questions?

Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
MondayThursday
8am7:45pm
Friday
9am7:45pm
SaturdaySunday
9am5:45pm

Response by Mon

You May Also Need

Product Reviews

4.81 out of 54 reviews
98% would recommend this product
4.81
out of 54 Reviews
98% would recommend this product
WRITE A REVIEW
5 star
87%
4 star
11%
3 star
0%
2 star
0%
1 star
2%
WRITE A REVIEW

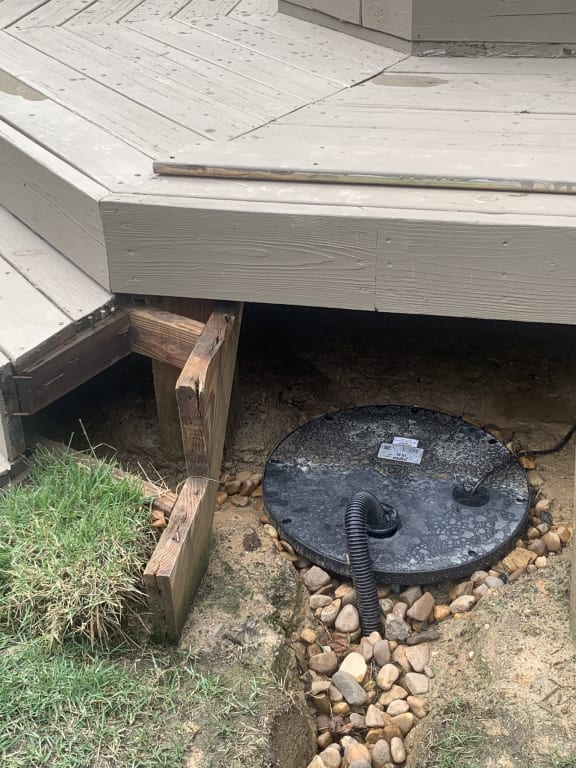

Customer Images

Most Liked Positive Review

Excellent product

So easy! All in one package and works like a champ. I have a very soggy backyard and we have been getting tons of rain this year. The water was running under the house and out into the front yard. I became concerned about my foundation, insulation, mold, etc. so I decided to install a sump pump. I was initially intimidated but watched a few YouTube videos and purchased this kit. As others have said, the hardest part was digging a 2'X2'X2' hole. After digging the hole, which was filling with water as I dug and had to be constantly bailed out, I dropped this unit into the hole, plugged it in, and BAM - all the water was immediately pumped out around the side of my house where I placed the discharge hose. The actual pump is all metal, appears heavy-duty, and is quite heavy. It does a great job of re-directing the water from my low point (foundation) around my house. I couldn't be happier. Also, I tried pricing each part separately and couldn't match this combination.
VS

Most Liked Negative Review

NO!

this is not what I ordered, the bucket is only 16 high and 12 wide, your add says it's 18x22 and perforated, this one is NOT! Highly disappointed, I havent opened it up to see what is inside, I'm afraid I'll really get PISSED Off!
Showing 1-10 of 54 reviews

Good product and value

Good complete kit for a sump pump. High quality pump and basin. The discharge hose is ok, the hose clamps are cheap. For a few bucks you should buy your own stainless clamps. Otherwise, good product and price.
Brad
KY
1 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

I would buy this package again

Comes with everything you need but I hard piped it
Jbconst
Connecticut
2 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

NO!

this is not what I ordered, the bucket is only 16 high and 12 wide, your add says it's 18x22 and perforated, this one is NOT! Highly disappointed, I havent opened it up to see what is inside, I'm afraid I'll really get PISSED Off!
Merchant response
2 years ago
Hello, Thank you for your feedback, we greatly appreciate that you have taken the time to provide a review on this item. We deeply apologize for the inconvenience you experienced on your order with this item. We strive for accuracy in all orders and accuracy on our website so we thank you for bringing this to our attention. If you need any assistance getting the correct item, please contact us and we would be happy to help! Again, we sincerely apologize for any inconvenience this may have caused. If you have any questions feel free to contact our customer care team at 1-888-757-4774 or chat online under “Contact & Support” on our website. Thank you, Danielle D. SupplyHouse.com Team
Harry
Minn
2 years ago
Was this review helpful to you?

Easy Installation and Sturdy Materials

I was quoted nearly $3,000 to install a sump pump in my crawl space- this kit let me install one for 1/10th of the cost. The hardest part was digging the hole, then I placed the basin in, ran the discharge hose, and plugged it in to be done with install (~ 2 hours with 1.5 of them being digging) . I was also impressed with how sturdy all materials were, I am sure the system will last a long time and with a 3 year warranty I do not think you could have more ease of mind!
John
Fredericksburg, VA
2 years ago
Was this review helpful to you?

Affordable and Quality

The shipping was very fast, the pump works very well and the packaging did not result in any damage on shipping. Overall the system is exactly what I needed and has given me the peace of mind I was looking for while being away from my property.
Jules
Providence, RI
2 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

I would buy this product again

Sump in the corner of my basement fast delivery 2 days already installed, great product
Larry
Egg Harbor township New Jersey
2 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Good Product

Basin did not come with holes drilled as described
E-Money
Boston
2 years ago
Was this review helpful to you?

Pretty good with some glitches

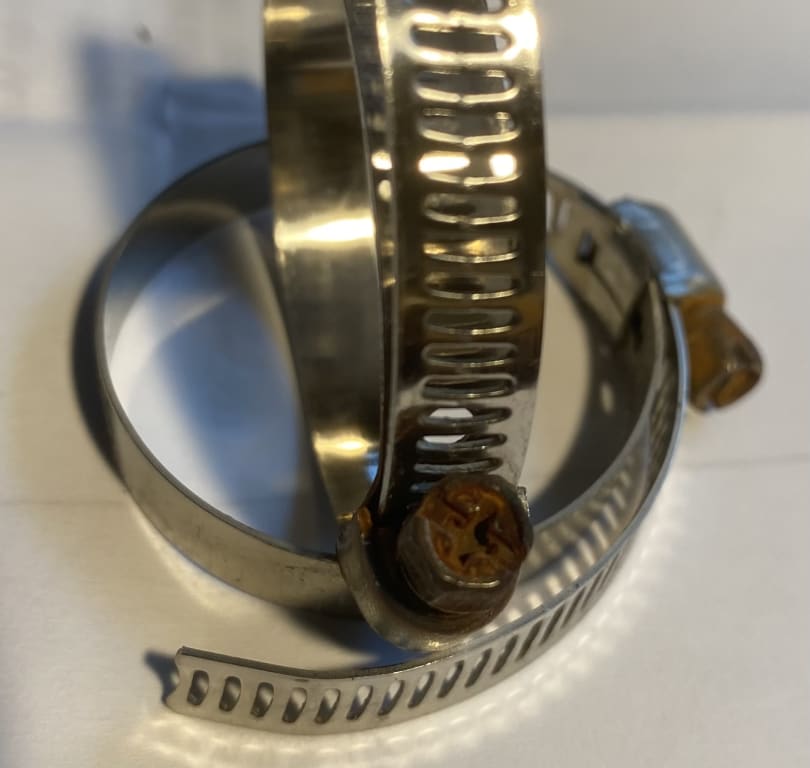

The construction of this unit is robust and solid feeling. I purchased two kits in the midst of record storms in MA, which meant that I had to dig a partial hole and wait until the pumps did their job and I could then resume digging. After a week or so, I removed the pumps and the basin (it was just sitting in the hole with a weight atop it) in order to continue excavation. When I removed the pumps, they looked spotless...except for the clamp that secured the hose to the barbed fitting. The clamp was a zinc plated affair and not the usual stainless and in the space of one week, there was evidence of substantial corrosion- I doubt that it would have lasted a year. Given the power at which this pump discharges water, it is likely that the hose might be dislodged if the clamp failed. I replaced the clamp with a stainless unit and notified SH of the issue. The nature of the problem didn't seem to register- customer service just wanted to know if I wanted to return it (no, I did not). I suggested replacing the clamps in the kits and it didn't appear to be of concern to customer service. The second issue is more of a design adjustment. The plastic drain basin is about 2' deep and tapers slightly as you move closer to the bottom. Given that the unit is going to be installed in a wet environment, there should be a lip at the base for gravel to perch on and prevent the unit shifting from buoyancy. I'm not suggesting that it's going to pop up out of the floor like a cork, rather there is the potential for slow movement of the basin over a longer period of time. I fixed this issue with some sturdy metal (some 1/2" thick scrap I had) that sticks out to catch the gravel surrounding the basin to resist the buoying effect of water. If you purchase this kit, a couple of small changes will make it much more dependable in the long run.
Installer
MA
3 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Excellent company and product

Needed a sump pump, found supply house with google search. Excellent price, great product and quick shipping. Will definitely purchase from them again.
Gene
New Braunfels Texas
3 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Excellent kit! Super fast delivery!

This kit definitely saved the day when our crawl space partly flooded due to unprecedented snow melt. Fast delivery allowed me to install it quickly and prevent any damage. Well done supply house!
Megabyte342
Truckee, CA
3 years ago
Verified Buyer Icon
Verified Buyer
Was this review helpful to you?

Product Q&A

5 Questions
5 Questions
ASK A QUESTION

Q: How long is the electric cord

Asked by Gary 2 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- SupplyHouse

Hello Gary, thanks for writing in. The electric cord is 20 inches.

Was this review helpful to you?

Q: How long is the power cord?

Asked by Bob 9 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply-

The power cord is 20 feet in length.

Was this review helpful to you?

Q: How long is the electrical cord for this pump?

Asked by LockeVS 10 years ago

Add your answer

* Required Field
Verified Author and ReplyVerified Reply- SupplyHouse Staff

The package comes with a 506804 pump, which has a 20' cord.

Was this review helpful to you?

Q: If I install this unit in my yard do I have to have a concrete basin put it first?

Asked by Rodney 10 years ago

Add your answer

* Required Field
-

You should not have to. I installed mine by digging a hole at least 6-12" wider all around, lined that hole with landscaping cloth (to keep dirt and silt out) dropped the plastic basin in, then filled around the basin with coarse gravel (#57s). It has been working well for two years.

Was this review helpful to you?
-

No just put river rocks all around and underneath 4 to 6 inches

Was this review helpful to you?

Q: Is the discharge hose kit 24 inches or 24 feet?

Asked by DIYgal 11 years ago

Add your answer

* Required Field
-

It's totally 24 feet. Not sure if you are just trying to point out this error to the site managers. A 24" discharge hose would be pretty comical. It is a great kit, I have two installed right now - the first one has been running fine without any maintenance for 5 years.

Was this review helpful to you?
-

It's 24 feet

Was this review helpful to you?
