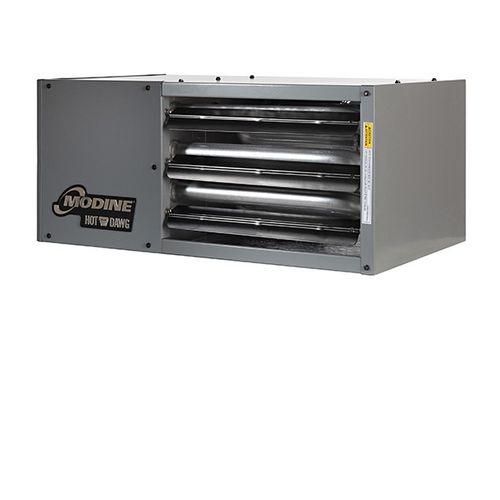

HD100 Hot Dawg LP Power Vented Heater w/ Heat Exchanger (100,000 BTU)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,673.27 each
In Stock
Fuel Type:
Propane
BTU Input:
100000
Stages:
1
Heat Exchanger:
Aluminized Steel
Vent Type:
Power Vent
MANUALS (4)
This item replaces: HD100AS0121FBAN
Lift Gate
–
This product weighs 125 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
80000 Max BTUs
Propane
Power Vent
1/12 HP
1
100000 BTUs
Description
–
HD100 Power Vented Propeller Overview:
- Tubular Power Vented Propeller
- 100,000 BTU/hr input
- Application: Large Garage (more than 3-1/2 cars)
- Heat Exchanger: Aluminum
- Direct Spark Ignition
- 115V, 60 hertz, single phase
- Single Stage, LP
- Hush-puppy quiet operation (see table)
- Right or left hand controls available on all 30-75 units. Gas, electrical and flue connections can be changed by simply flipping the Hot Dawg over
- Uses natural or propane gas
- Lightweight, easily installs 1" from ceiling with only two angle brackets (included on sizes 30-75, accessory for 100, 125)
- Full 10-year warranty on heat exchanger
- Standard power exhaust simplifies side-wall or roof venting with small-diameter vent pipe
- Permanently-lubricated motor for trouble-free dependability
- single stage, direct spark ignition, 100% shut-off with continuous retry
- Low-profile design and neutral color to blend in with decor
- Also available with a blower (model HDB).
Specs
–
| Horse Power: | 1/12 |
|---|---|
| BTU Output: | 80000 |
| Fuel Type: | Propane |
| Stages: | 1 |
| Heat Exchanger: | Aluminized Steel |
| Vent Type: | Power Vent |
| Max Mounting Height (ft): | 12 feet |
| Entering Airflow (CFM) @ 70°F: | 1490 |
| Product Type: | Unit Heater |
| Air Temp. Rise (°F): | 50°F |
| BTU Input: | 100000 |
