Tightens quickly from the front with a Phillips head screwdriver. Has a durable brass interior shielded by nylon exterior to prevent shorting.
Most technicians have encountered the problem of a compressor with pitted or severely corroded spade terminals. The start-up current surge of repeated hot summer cycling eventually destroys the spade connector, sometimes leaving nothing but a corroded round post.

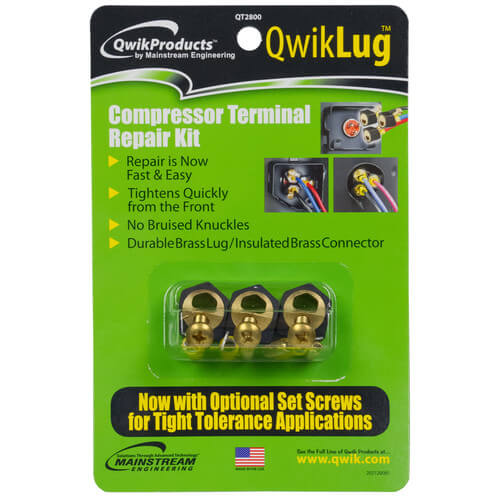

Mainstream has developed a patented product, QwikLug, to solve this problem. QwikLug easily attaches to damaged or corroded spade connectors. We have considered the difficulty in these field installations - the lack of space around these spade terminals - and have developed a solution. Simply push the QwikLug connector on and tighten it from the front with a Phillips screwdriver. QwikLug comes with color coded leads for connecting to existing wiring (Leads not included with QT2800). The outer connector housing is a nylon insulator so the connectors can touch without shorting.
Clean damaged or corroded terminals.
Verify crimped connector is inserted into QwikLug body with spade pressed against the long flat side of the opening. Crimped connector fits between terminal and screw.
Slide QwikLug over terminal and tighten screw with Phillips screwdriver.
Attach QwikLug lead to the unit (leads not included with QT2800).
- Terminal Repair Kit that easily attaches to corroded spade connectors
- Outer connector housing is a nylon insulator so the connectors can touch without shorting
- Enables tight clean connections to damaged or corroded terminals
- Provides a durable brass connection
- Tested for more than 100,000 compressor starts
