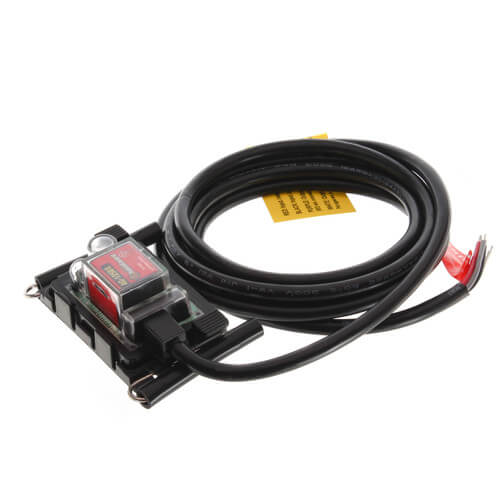

Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
The sensor measures less than 1.4 inches x 2.0 inches (36mm x 50mm) for complete condensate management in any tight space. For HIGH CONDENSATE SENSITIVITY, the AquaGuard AG-1250E can be mounted flat on the BOTTOM of either a metal or plastic secondary drain pan. For LESS CONDENSATE SENSITIVITY, the AquaGuard AG-1250E can be mounted flat on the SIDE of either a metal or plastic secondary drain pan. In addition, the AquaGuard AG-1250E's low profile, water resistant design makes it easy to install and its dependable, rugged construction makes it completely submersible and extremely cost effective. For additional features, the AquaGuard AG-1250E can be combined with our AG-9100 External Audible & Visual Remote Alarm, which can be conveniently located over 250 feet away from the condensate overflow switch.
Features:
- Multipurpose Electronic Condensate Sensor for Metal/Plastic Secondary Drain Pans & Basement Installations
- Versatile Mounting Options Allow Positioning on a HVAC/R Unit, in a Secondary Drain Pan, on a Floor or Even on a Wall
- 5 Amp, 24 Volts AC Solid State Sensor with Water Detection LED Light
- Innovative Mounting Base for Easy Cleaning and Drying of Sensor
- Switch Can Be Normally Open or Normally Closed
- Normally Open 4th Wire for Optional External Alarm, Digital Controller or Energy Management Systems
- 6 Feet of Control Wire Included
- Compact Waterproof Design
- Patents Pending / UL 508 Approved
| Voltage: | 24v |
|---|---|
| Wire Size: | 6' |
| Product Type: | Sensor |
| Amperage: | 5 |
| Position: | Normally Open Normally Closed |
Questions?
Reviewed by 9 customers
Yes
Rated 5 out of 5 starsVerified Buyer
Comments about Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
Exact fit from old one that was buzzing. Installed new one and heat pump working just fine
Yes
Rated 4 out of 5 starsComments about Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
Excellent concept, basically 0/0 water level shuts system down. Old float type can (and did) overflow pan: little off level, little sticking, little age and big problems. Only thing keeping it from 5 stars: wires are fragile, poorly color coded ( is that purple or black). Wiring diagram confusing. Explanation should be simple. Two wires give it power. It needs power. Two wires interrupt HVAC operation, usually on all the time, continuous closed connection when dry, open when wet. The instructions are confusing. Seems to be great product.way better concept than failure prone floats
Drip sensor for HVAC
Rated 5 out of 5 starsVerified Buyer
Comments about Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
Bought this product as required during a home inspection while selling our house. HVAC professional went up to the attic to install it and said there already was one up there but the builder had not connected it to the system. So we plan to use the product on our next house! It's a great product and all air conditioners should have it for safety. Thank you for getting it here SO fast. Really appreciate your help.
Direct replacement for defective one.
Rated 4 out of 5 starsVerified Buyer
Comments about Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
Bought this to replace one exactly like it that would not reset after being tripped. Tried everything to get this thing to stop tripping, dried it, let it sit for two days, applied malitive Force, nothing worked. Bought exact replacement, hopefully this one will be better.
Fantastic Product. Aqua Guard products set the standard.
Rated 5 out of 5 starsComments about Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
Best product I've found for odd installations. Can be used as a water sensor for flat planen or attached to side of drain pan. We use these mostly in rooftop units for code compliance. They are very versitile and effective.
A MUST HAVE PRODUCT
Rated 5 out of 5 starsVerified Buyer
Comments about AquaGuard Magnetic Float Switch System for Metal Secondary Drain Pan
Working in an HVAC company, quality products are important. The techs absolutely believe in this AquaGuard. No other water switch is preferred.
good overall, couple improvement opptys
Rated 4 out of 5 starsVerified Buyer
Comments about Multipurpose Water Sensor for Metal/Plastic Secondary Drain Pans
Like the solid state. Nice wiring options. Needs a test button, and the stranded wires require use of pigtails rather than plugging directly into wireless thermostat receiver push terminals. I also like that it is includes an alcohol patch, self adhesive strip, and notice sticker. Well designed.
Could save our Living Room Ceiling
Rated 5 out of 5 starsVerified Buyer
Comments about AquaGuard Magnetic Float Switch System for Metal Secondary Drain Pan
This product is designed to clamp to the edge of a drain pan and shut-down the AC unit if the overflow pipe is plugged.
Awesome product
Rated 5 out of 5 starsVerified Buyer
Comments about AquaGuard Magnetic Float Switch System for Metal Secondary Drain Pan
This is a great add-on float switch for a secondary pan
