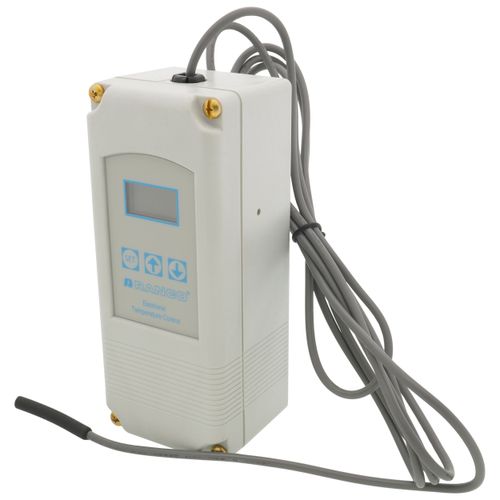

Single Stage Temperature Control w/ Sensor (24V Input)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$115.51 each
In Stock
Get 62 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (2)
This item replaces: ETC-112000
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
1° to 30°F
SPDT
6.52"
2.48" Depth
One
Description
–
Digital Display
Remote Temperature Sensing
Built-In Safety
- Unlike many electronic controls, the ETC is simple to install and set up. One finger is all you need to program it. The standard digital display and keypad allow the user to adjust the temperature settings with 1 degree resolution. Setpoint temperature, differential and mode of operation (heating or cooling) can all be selected using the keypad and display.
When not in the programming mode, the display gives a constant readout of the sensor temperature. Annunciators on the liquid crystal display also indicate when the relay is energized.
Remote Temperature Sensing
- The ETC is capable of remote temperature sensing up to 400 feet away from the control when using standard 22 gauge sensor wire.
Built-In Safety
- Every ETC model is equipped with diagnostic programs that check for hardware, software, or system problems and display different error codes to indicate where the trouble is.
The ETC also has a keyword lockout switch to prevent tampering with the control settings by unauthorized personnel. The switch, which is located inside the enclosure, can be used to disable the keypad function.
Specs
–
| Capillary Length: | 8' |
|---|---|
| Application: | Remote Bulb Temperature |
| Temperature Range: | -30° to 220°F |
| Differential: | 1° to 30°F |
| Voltage: | 24V |
| Sensor Type: | Thermistor |
| Bulb Size: | 2" x 1/4" |
| Operating Temp Range: | -20° to 140°F |
| Enclosure Type: | NEMA-1 |
| Height: | 6.52" |
| Width: | 2.7" |
| Depth: | 2.48" |
| Humidity Range: | 0 to 95% RH (Non Condensing) |
| Switch Action: | SPDT |
| Stages: | One |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
Temperature Sensor For Ranco Control
SKU: 1309007-044
Ranco
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.65 out of 26 reviews
92% would recommend this product
5 star
85%
4 star
4%
3 star
8%
2 star
0%
1 star
4%
Customer Images
Most Liked Positive Review
Excellent control & very easy to use
Much better performance than mechanical controls. Very stable. It just works. Temperature readout is a big plus. I used it to lock out heat pump strip heat - remote sensor makes this easy to install. Used another one to control "misting fans" for spot cooling. Flawless performance.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Nice control if they were only reliable
I bought this control to replace one that failed in less than a year. I have dozens of these in service and the failure rate is unacceptable. Ranco has not responded to my emails.
Showing 1-10 of 26 reviews
It work for hot water tank
My wel McLain hot water tank thermostat failed and replace it with a factory thermostat and fail again in a year. I use this one for 6 years already and still working. Only issue is the temperature setting you need to adjust to what you think is appropriate. The hot water tank supposed to at 120 degrees. I have this set at 90 degrees and the water already hot enough.
Fuji
New York City
1 years ago
Was this review helpful to you?
yes
furnace work
dan
Zanesville, OHIO 43701
1 years ago
Verified Buyer
Was this review helpful to you?
Simple & it just plain works
Always reliable. Use them in outdoor wood boiler applications.
Matt
Minnesota
3 years ago
Verified Buyer
Was this review helpful to you?
Great product!
I use these or 120/240 volt models for many different applications, they always work flawlessly!
dabah
Iowa
3 years ago
Verified Buyer
Was this review helpful to you?
Stop
I used this control on my buffer tank. I was confused for over a week. My tank wouldn't reach certain temp. The probe itself does not provide accurate reading when I compared with other probes. It was off over 10 degrees. Very disappointed.....
Mariotheplumber007
NJ
3 years ago
Was this review helpful to you?
First one lasted 15 years
This is straightforward and versatile. The first one I had lasted 14 years and then quit--started giving an error message. That's not bad, although would be nicer if it lasted even longer. It looks like the circuitry has been modernized, so maybe the new version will last longer.
Charlie
New England
5 years ago
Verified Buyer
Was this review helpful to you?
My 1st Heat control that works great for my application and
I use this to control for three (3) Dayton forced air heaters. One control per heater and this temperature controller is working great. I use a simple on/off toggle switch to turn the sensor on and off. Great product
Bob @ Citrus Packing
Dinuba, California
5 years ago
Verified Buyer
Was this review helpful to you?
Yes
Digital read out and setting on spool heater.works great.
Cmbart
Indian estates Florida
5 years ago
Verified Buyer
Was this review helpful to you?
Great control great value
I control fermentation equipment with these
Easy to use very reliable
Beer chuck
Waynesboro Va
5 years ago
Verified Buyer
Was this review helpful to you?
I like this control better than the original
This is used to control my hot water tank.
Soup
Port Henry NY
6 years ago
Verified Buyer
Was this review helpful to you?
