Product Highlights
–
FNPT x FNPT Connection
Cast Iron
1-1/4"
125 MAX PSI
275°F Max Temp
1-1/4"
Description
–

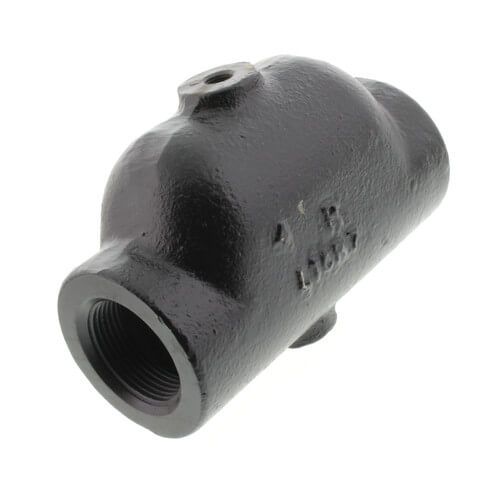

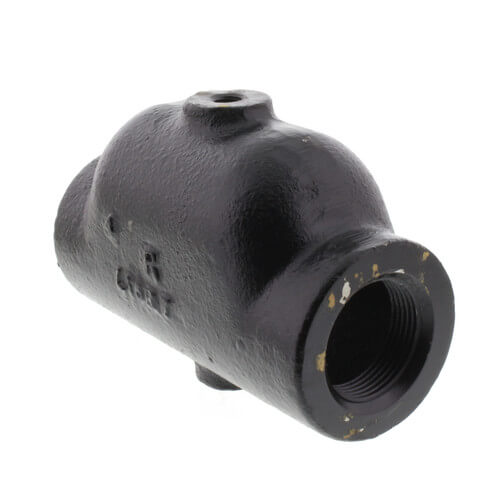

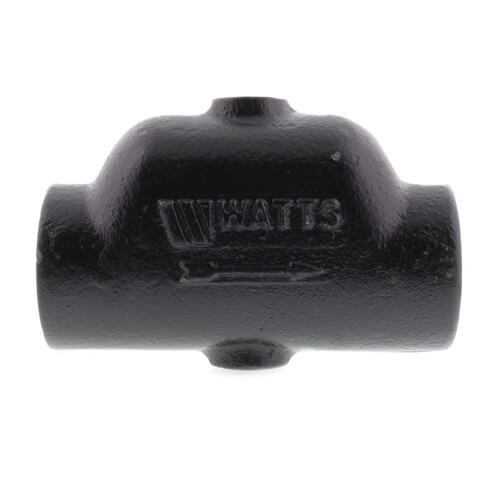

Air Purgers provide efficient separation of air and water in hydroinc heating systems. Heavy duty cast iron construction with tappings for expansion tank and automatic air vent mountings. Removes entrapped air with internal baffle design through continuous recirculation of heating system water with use of air vent. Improves system efficiency, reduces noise and helps extend component life.
Features
Specifications
Features
- Heavy Duty cast iron construction
- 1 inch, 1 1/4 and 1 1/2 inch models (inlet and outlet)
- 1/2 inch bottom tapping for expansion tank mount
- 1/8 inch top tapping for air vent mount
- Directional flow arrow for correct installation
Specifications
- Description: 1 in. NPT Air Purger for closed heating systems
- Application: Closed heating systems
- Connection Type: Female NPT
- Connection Size (inch): Bottom: 1/2 inch; Top: 1/8 inch
- Pipe Size: 1-1/4"
- Max Safe Operating Pressure: 125 psi
- Max Operating Temperature (F): 275 °F
- Dimensions: 6 inch long x 3-3/4 inch high x 2-3/8 inch wide
- Materials: Cast Iron
Specs
–
| Product Type: | Air Scoop |
|---|---|
| Size: | 1-1/4" |
| Inlet Size: | 1-1/4" |
| Outlet Size: | 1-1/4" |
| Max Temp (F): | 275°F |
| Max Pressure (PSI): | 125 |
| Material: | Cast Iron |
| Application: | Heating |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
