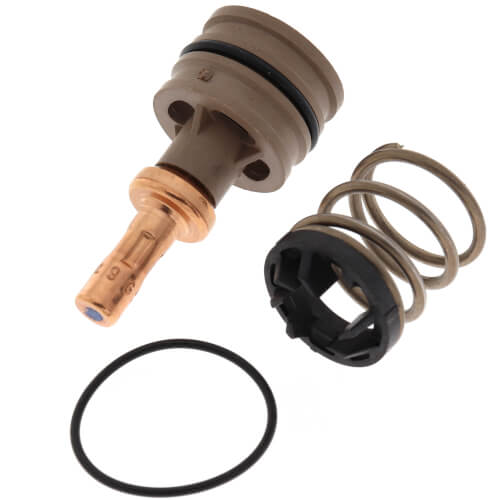

AM-1 Repair Kit, STD and R Models
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$53.24 each
In Stock
Get 8 Tomorrow, Jun 30
Order by 6PM, receive Tomorrow
Used With:
AM-1 Series
'/%3E%3C/svg%3E){kind=small}
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
80°F - 180°F
AM-1 Series
180°F Max Temp
Description
–
Resideo Braukmann AM-1-025RP AM-1 Repair Kit (STD and R Models) is a factory replacement kit for selected Braukmann AM-1 series thermostatic mixing valves, used to restore internal control components on standard (STD) and R model assemblies.
Key Features:
Compatibility & Applications:
Installation & Operation Notes:
Maintenance & Troubleshooting:
Key Features:
- OEM Resideo Braukmann repair kit for AM-1 series mixing valves
- Includes replacement internal cartridge and related components as supplied in the kit
- Designed to restore temperature control performance without replacing the complete valve body
- Compatible with both standard (STD) and R model AM-1 valves identified for this kit
Compatibility & Applications:
- Intended for use on Resideo Braukmann AM-1 series thermostatic mixing valves that list AM-1-025RP in the official parts information
- Suitable for domestic hot water mixing applications where the existing AM-1 valve body remains in good condition
- Used when outlet temperature drift, sluggish response, or internal wear is identified during service
Installation & Operation Notes:
- Isolate the valve from the system and relieve pressure before beginning work
- Follow Resideo Braukmann service instructions for disassembling the AM-1 valve and removing the existing internal cartridge
- Install the new parts from the AM-1-025RP kit in the orientation shown in the manufacturer's literature, then reassemble the valve body
- After reassembly, restore water supply, purge air, and adjust the mixed outlet temperature to the required setting
- Verify stable mixed temperature over several draw cycles before returning the system to normal operation
Maintenance & Troubleshooting:
- Use the repair kit when cleaning cannot restore smooth operation or when the internal components show signs of scaling, wear, or sticking
- Periodically check system strainers and upstream filtration to limit debris that may affect valve performance
- If temperature control issues continue after kit installation, verify inlet temperature and pressure conditions and confirm that the valve is correctly sized for the application
Specs
–
| Type: | Replacement Part |
|---|---|
| Temperature Range (F): | 80°F - 180°F |
| Used With: | AM-1 Series |
| Max Temp (F): | 180°F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.72 out of 39 reviews
91% would recommend this product
5 star
85%
4 star
8%
3 star
5%
2 star
0%
1 star
3%
Most Liked Positive Review
Perfect Fix
This kit is for replacing the internals of a Honeywell AM-1 H/C mixing valve. My valve was letting too much cold water in because one part had failed -- well water. A repair kit is a better option than a complete new valve. All you need to do is shut off the furnace and close off the water supply. Then, open the kitchen faucet to relieve the pressure. Follow the enclosed directions and it will take 30 minutes to eliminate your problem, and a lot less money. Beyond average tools the only additional items you may need is some coffee pot cleaner (scale remover) and a Q-Tip or small stiff brush for the inside of the (existing) valve body. Everything was an exact replacement.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Inconsistent Quality
Identical to original equipment part, arrived well packed, and for a good price. Appeared to be a perfect fix. However replacement part failed to maintain temperature after a couple days. Cleaned, lubricated, and reinstalled without resolution. Replacing entire valve restored consistent service. Failure may have been a defect in housing vs. part - was unable to identify root cause of failure. Noting that even the new Honeywell Sparco mixing valves have inconsistent quality reports, I suspect the same applies to the repair kits. Where these values are great when they work, install easily, and appear to be fully serviceable, the design appears to operate successfully only within very fine tolerances.
Showing 1-10 of 39 reviews
Good quality
We've had an issue with minimal hot water being supplied to our fixtures for years (oil tankless coil boiler). This repair kit fixed the issue. We now have consistent hot water. It didn't come with instructions but between YouTube and forums it wasn't too hard to figure out.
JT
CT
5 months ago
Verified Buyer
Was this review helpful to you?
Works Great - Mixing Valve operating like new!
Replaced the "cartridge" in my 13 year old mixing valve - we were not able to get any real hot water. Now works like new!
mrseklem
Seattle, WA
1 years ago
Verified Buyer
Was this review helpful to you?
Will do order with you again, you're the best!!!
Great salesperson. The best place to do business. Very knowledgeable and friendly.
Kent
Harlan Ky
1 years ago
Verified Buyer
Was this review helpful to you?
5 stars because the cleaning instructions worked
I've put this into storage since the instructions to clean the valve worked. Glad to have it on hand for the next time this valve goes off. Before cleaning, hot water had become occasionally cold while showering and pressure would fluctuate as well. After cleaning with white vinegar performance is solid. Thanks to AM for making this a serviceable valve!
Ex. Sam
Connecticut
1 years ago
Verified Buyer
Was this review helpful to you?
Worked perfectly
Went from Luke warm water no matter which why the valve was set to finally having hot water. Took 15 mins for this gal to complete.
Frankie
Massachusetts
2 years ago
Was this review helpful to you?
I would but this product again.
This product is used to repair the inner workings of a mixing valve (anti-scald valve). This product can be hard to find locally but it is regularly in stock at Supply House, and at competitive pricing.
Solar Assist
Eugene, OR
2 years ago
Verified Buyer
Was this review helpful to you?
Exactly what I needed
I have hard water and I'm not sure if the one in the mixer had failed or if all the build up was not allowing it to function properly. My water was coming out luke warm. no matter how much I adjusted the valve. I replaced this item and in the process cleaned up all the calcium build up and now wonderful hot water again. Make sure to go around and clean all the screens after doing this if you have alot of build up, all my faucets including my clothes washer screens caught so much residue they were barely trickling. Now great pressure and hot water again. You are suppose to clean this unit out once a year, but I never did that with any of my previous mixing valve and the latest one stopped working after 3 years. Perhaps I will clean yearly moving forward.
Nacho
NH
3 years ago
Verified Buyer
Was this review helpful to you?
Shipped quickly and worked great
Fixed the problem in my mix valve
TG
Jackson NJ
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again
Worked perfect and came very quickly. It's 3 weeks later and still no problems.
Mendy
Brooklyn NY
4 years ago
Verified Buyer
Was this review helpful to you?
Using this product for a decade.
Mixing valve cracked 2x and replaced under warranty. The 2nd time I replaced both mixing valve repair kit and Aqua-stat (was no longer holding set temp 130 F. degrees). sink/shower mixed temp set at 120 F.
KO
Northern Maine
5 years ago
Was this review helpful to you?
Product Q&A
9 Questions9 Questions
Q: Re: The product: AM-1 Repair Kit STD and R Models; SKU: AM-1-025RP. I have a mixing valve labeled Honeywell Sparco, AM Series, ASSE 1016-7; ASSI 1017, with a rating 100 - 145 F. Is the AM-1-025 RP kit the proper one for my existing valve? I would much rather just replace the insides than try to replace the entire valve. Would it be useful to get any of the other parts at the same time, such as: AM-1 Gasket Kit for Series Mixing Valve SKU: AMU200-RP or: AM-1 Union Model Check Valve Replacement SKU: AMCU100 I would like to do this only once and do it right so the valve lasts another 24 years. Thanks.
Asked by Roger 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffAM-1-025 RP would be the right kit for AM-1 series valves with a temperature rating of 100-145 like the one you have. The replacement of other parts is totally up to you, the consumer, and whether your valve needs it. I suppose replacing items like gaskets and check valves can't hurt and could be beneficial.
Was this review helpful to you?
Q: Can I use the AM-1-025 RP Park on a AM101-US-1 (this is the on goes up to 120F).
Asked by Savva 10 years ago
Add your answer
Verified Reply- Supply House StaffYes, you can
Was this review helpful to you?
Q: I have a 19 y.o. Sparco AM 102 which leaks. Is this the correct repair kit? Thanks
Asked by Russell 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe Sparco AM102 has two available replacement kits depending on the temperature rating. The C model valve (70-120 degrees) uses the AM-1-020RP replacement kit. The STD model (70-145 degrees) uses the AM-1-025RP kit.
Was this review helpful to you?
Q: I have an AM-1 Series ASSE 1017 mixing valve. It is rated to 212 F and adjustable from 70 F to 145 F. Is this the correct repair kit?
Asked by G 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffdouble check the temp. range, that kit is for 70-130, there is another kit for 110-145.
Was this review helpful to you?
Q: The supply house description says max temp of 130deg but the box and user guide says 180deg. Also it says it is okay to use with "R"series which goes to 180deg. I have two AM102R-US-1 valves and would like to buy this for spare parts, just want to be certain it goes to 180deg
Asked by Garth 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes this will work up to 180deg.
Was this review helpful to you?
Q: Will this kit work for rebuilding my AM101 mixing valve. Thanks Hank.
Asked by Hank 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the AM-1 Series repair kit should work for the AM101 mixing valve.
Was this review helpful to you?
Q: I want to rebuild my mixing valve ( AM101-US-1LF ) that has a loud whistling sound, only when the hot water is on, is this the right repair kit I should be using ? Thanks, Hank.
Asked by Hank 14 years ago
Add your answer
-
Yes, this is the repair kit that will work. Make sure you follow direction exactly and you will have no problems. Paul
Was this review helpful to you?
- Randy the Hydronics Guy
Yes, the standard kit should work for this.
Was this review helpful to you?
-
Yes, that is the correct part.
Was this review helpful to you?
Q: I have the AM100-1 which has a temperature range of 100 to 145 degrees F. Why is the replacement kit 90 to 130 degrees F?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis kit is designed for use with the "STD" & "R" models.
Was this review helpful to you?
Q: I have a Sparco AM102-US 110-145F tempering valve 1". I can no longer adjust the temperature, and the plastic knob seems to be stripped as well. What does the STD and R Model represent? What parts are included in this repair kit? Does it include a new knob?
Asked by scott 16 years ago
Add your answer
Verified Reply- PexSupply StaffSTD means that you can use the kit for heating or plumbing. R products are approved for heating only. This product only contains the element (includes neither knob nor valve body).
Was this review helpful to you?
