Description

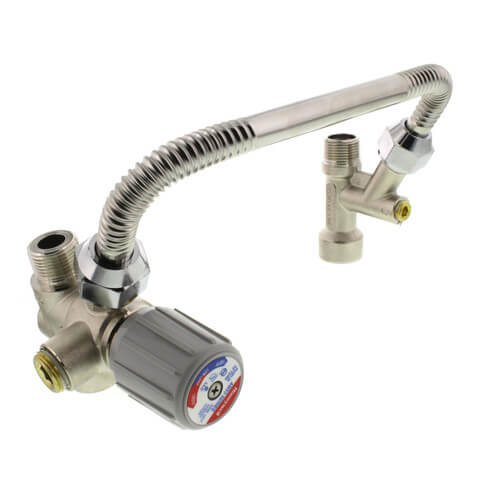

Honeywell AMX300 series DirectConnect™ kits reduce installation time while providing Honeywell's industry-leading mixing valve technology, which offers excellent temperature stability and control and minimizes scalding risk to building occupants.

Features
  • Temperature is adjustable using push-twist-release locking hand wheel design and if cold water supply is interrupted, flow reduction occurs in seconds
  • Kit includes mixing valve, cold water tee fitting and flexible stainless steel connector
  • Recirculation portion option offers fast delivery of heated water to the furthest fixtures, increasing user comfort with more available hot water
  • The alternate hot port bypasses hot water directly from the tank to non-mixed temperature applications
  • Brass/stainless construction with Teflon coated wear surfaces for extended surface
Hide Description
Specs
Application:

Point of Source

Length (Inches):

8"

Connection Type:

MNPT x FNPT

Outlet Type:

MNPT

Inlet Type:

FNPT

Connection Method:

Threaded

Size:

3/4"

Temperature Range (F):

33°F to 80°F (cold water inlet)

Min Temp (F):

100°F

33°F

Max Temp (F):

212°F

80°F

Temperature Range (F):

100°F to 212°F (hot water inlet)

Mixed Water Supply Temperature Range (F):

100 F to 145 F

Minimum Flow Rate (GPM):

0.25 gpm; Recirculation Port: 1/2 in. NPT; Alternate Hot Port: 1/2 in. NPT

Max Pressure (PSI):

150

Flow Capacity (Cv):

2.3

Standards Met:

ASSE 1017

Valve Action:

Mixing

Material:

Brass

Lead Free:

Yes

×
