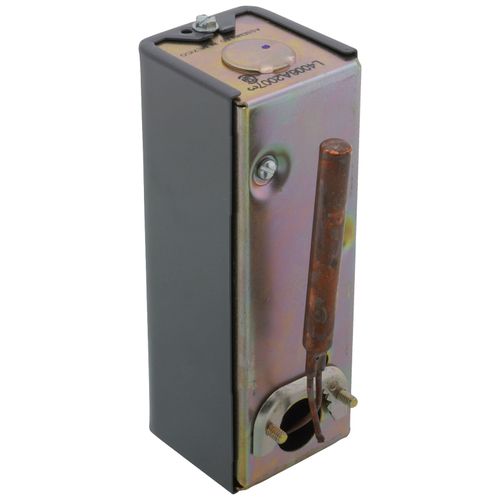

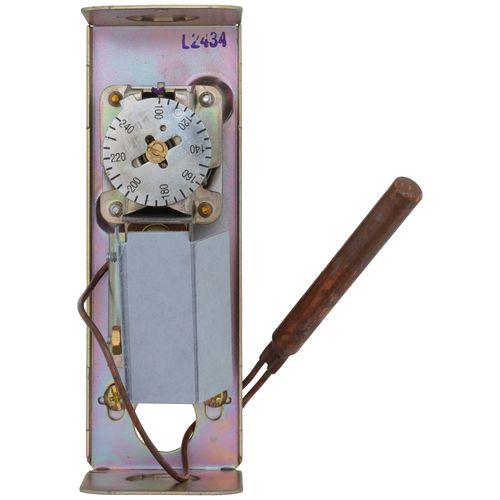

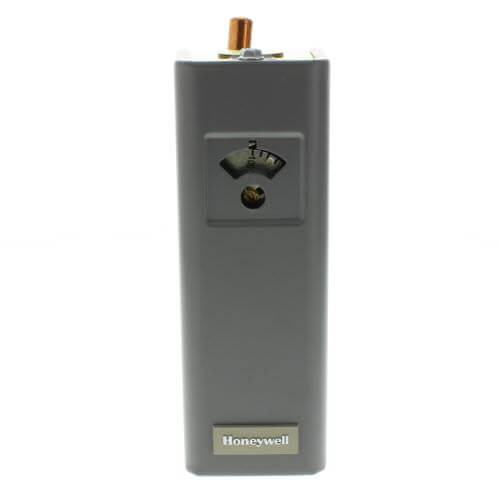

High or Low Limit Aquastat, 100-240-Degree(F) range, 5-30-Degree(F) Adj Differential, L4006A2007
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$154.80 each
In Stock
Get 20 Tomorrow, Jun 19
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.25 A @ 0.25 to 12 Vdc, 8A @ 120 Vac, 5.1A @ 240 Vac
Adjustable, 5° to 30°F
SPST, Contacts Break on Temp Rise
Horizontal, Vertical
100°F to 240°F
5-5/8"
Description
–
Aquastat+ Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks, and other applications where temperature control is required.
Features
Features
- Totally enclosed Micro Switch+ snap-acting switches operate on temperature rise to setpoint.
- Visible control point scale and external adjustment screw permit easy setting.
- Horizontal or vertical insertion of the sensing element.
- Direct or well immersion of the sensing element.
- Models available for strap-on mounting.
- Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications.
- Select models have wells.
Specs
–
| Application: | High Limit Low Limit |
|---|---|
| Bulb Size: | 3/8" x 2-7/8" |
| Capillary Length: | 3" |
| Switch Action: | SPST Contacts Break on Temp Rise |
| Temperature Range (F): | 100°F to 240°F |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc 8A @ 120 Vac 5.1A @ 240 Vac |
| Electrical Ratings (ALR): | 30.6A @ 240 Vac 48A @ 120 Vac |
| Differential: | Adjustable 5° to 30°F |
| Min Temp Differential: | 5°F |
| Max Temp Differential: | 30°F |
| Max Ambient Temp (°F): | 150°F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Well Included: | No |
| Mount: | Horizontal Vertical |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Switch Action
Temperature Range (F)
Electrical Rating
Differential
CURRENT ITEM
High Limit
Low Limit
Low Limit
SPST
Contacts Break on Temp Rise
Contacts Break on Temp Rise
100°F to 240°F
0.25 A @ 0.25 to 12 Vdc
8A @ 120 Vac
5.1A @ 240 Vac
8A @ 120 Vac
5.1A @ 240 Vac
Adjustable
5° to 30°F
5° to 30°F
You May Also Need
Product Reviews
4.93 out of 30 reviews
100% would recommend this product
5 star
93%
4 star
7%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 30 reviews
I would buy this product again
Used for hot water return recirculating system
Thank you for Supply House customer support!
Z
Brooklyn NY
12 months ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
mybe
The opening in the aqastat case did not fit over the heating tank well, I will sending the unit back unused.
Tom
Norwalk, CT
1 years ago
Verified Buyer
Was this review helpful to you?
Same as Honeywell
Used to control woodstove, original Honeywell lost its calibration and wouldn't shut off unless it was set 50 degrees cooler.
They should make it easier to connect stranded wire.
Mike
Elliottsburg, PA
2 years ago
Verified Buyer
Was this review helpful to you?
Would buy again
Great product. setting up directions a little lacking
Boiler
Southwest Va
2 years ago
Verified Buyer
Was this review helpful to you?
YES
Excellent product, easy order & good price
RP
Owosso
2 years ago
Verified Buyer
Was this review helpful to you?
Worked perfectly
This part was just what my brother-in-laws boiler needed. It's up and running again. Great service from this company. Very happy I got it from them.
RLee
North Mankato, MN
3 years ago
Verified Buyer
Was this review helpful to you?
Great costumer service
Had to return. wrong size. Order another size it was perfect
reuben
illinois
3 years ago
Verified Buyer
Was this review helpful to you?
Solved my problem and running fine
Replaced a broken aqua-stat
Craig
Michigan
3 years ago
Verified Buyer
Was this review helpful to you?
Stove is working.
Replaced thermostat on external wood stove. Working great!
Dug
Jackson, MI
4 years ago
Verified Buyer
Was this review helpful to you?
I operate a business, yes, I would buy again
I brought for a customer, it worked out well! Thanks
Herb
Chicaho
4 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
10 Questions10 Questions
Q: Can this unit operate on 24 Volts
Asked by John 8 years ago
Add your answer
Verified Reply- No. That is either 120 volt or 240 volt.
Was this review helpful to you?
Q: I have Aquastat Type L4006A, but can not locate any other info. How can I identify which specific L4006A model it is? It has grown to a continual buzzing sound.
Asked by scot 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffThe rest of the model # is stamped on the bottom of the unit itself.
Was this review helpful to you?
Q: Will this item work with a 3/4" Aquastat Well (SKU-121371B) which I already have installed on the system? Looking to attach the unit directly to the aquastat well. Thanks!
Asked by Steve 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes it will
Was this review helpful to you?
-
Should work fine Peter
Was this review helpful to you?
Q: I am a building contractor and I installed a Super Store Ultra water storage tank as part of a hydronic water and space heating system. I used a Honeywell L4006A2007 aquastat to regulate the water temperature in the Super Stor Ultra tank. Recently the water temperature has not been accurate and the boiler is not being activated when the tank drops below 120 degrees. This is the third aquastat that I have installed in this system since 2009. Is this normal? What is the typical longevity of these units? My owner uses the residence less than half of the year and may be doing something to affect this condition. When he leaves, I believe he adjusts the aquastat to keep the boiler from coming on too often. I would be installing the 4th aquastat in 6 years of operation.
Asked by Bob 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo it is not, we wouldn't know how long these units last. You can try calling Honeywell directly for more information.
Was this review helpful to you?
Q: Can the bulb be directly immersed in ¾ cooper tube hot water line? Does the enclosure need a separate support or can the bulb support it?
Asked by Adolf 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffThe bulb needs to be installed in a well, the enclosure does need to be supported separately, it does have mounting holes in the back to be direct mounted.
Was this review helpful to you?
Q: wanting to install a low-temp shut off for my wood fired boiler. meaning the blower and damper would shut off when the wood is burnt and the water temp gets below a certain temp, and when the temp is above the low temp cutout, the circuit is closed and keeps power to the effected systems. will this unit work for me?
Asked by bob the builder 12 years ago
Add your answer
-
Yes
Was this review helpful to you?
-
yes it will work.
Was this review helpful to you?
Q: how is the Aquastat wired to circulating pump?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou will need to wire the aquastat to a switching relay.
Was this review helpful to you?
- Ken
you need a relay to handle the power load of the circulator
Was this review helpful to you?
- Denton
This switch doesn't need a relay unless your pump is over 8 amp. 120 volts... Just hook it in series before the pump, and power will be supplied until it hits the set point.
Was this review helpful to you?
Q: I currently have a 40gal. indirect fired hot water tank controlled by an older Honeywell L4080B-1295 aquastat, setpoint at 140 degF. with a 15 deg. fixed differential. I would like to be able to reduce the differential to between 5 and 10 deg. to allow the boiler to cycle sooner and regulate the water temp. at approx. between 135-145F. Would the L4006A2007 be the right solution? I'm confused about what "High or Limit" means exactly. My existing aquastat is only High limit. Thanks.
Asked by Bill 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe L4006A2007 aquastat has an adjustable differential between 5°F and 30°F with an operating temperature range of 100°F to 240°F. The "high or low limit" means that the aquastat can activate the device connected to it at either the high or the low set point.
Was this review helpful to you?
Q: I am in need of a new aquastat.(due to short cycling) My current aquastat is obsolete, it is a L4031 D ( I can find no info on this aquastat. The boiler is a gas,tankless boiler.( a remote bulb will be neccesary.( 10") I would like to find a all in one unit, that is a high/diff/circulator. Thank you
Asked by bob 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe replacement for the aquastat you mentioned is model L4031A1008.
Was this review helpful to you?
Q: how do you adjust the temperature differential?
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffSet the differential to correspond with the boiler manufacturer recommendations. To adjust the temperature differential, rotate the wheel on the back of the snap switch until the desired reading is aligned with the V notch in the frame. The wheel provides an adjustment from 5 degrees F to 30 degrees F. Replace the cover on the Aquastat Controller. Adjust the control point to correspond with the boiler manufacturer recommendations. To adjust, inset a screwdriver in the slotted screw type head located beneath the window in the cover. Turn the scale to the desired control point.
