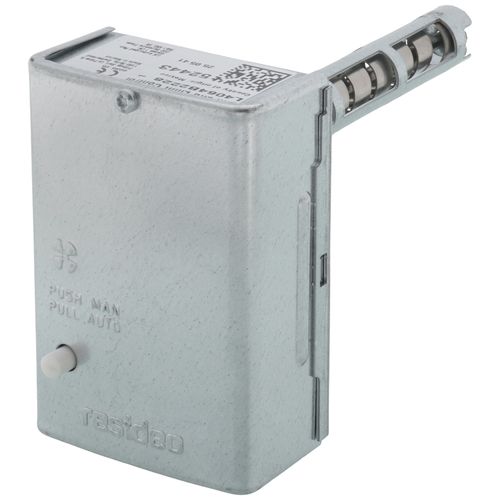

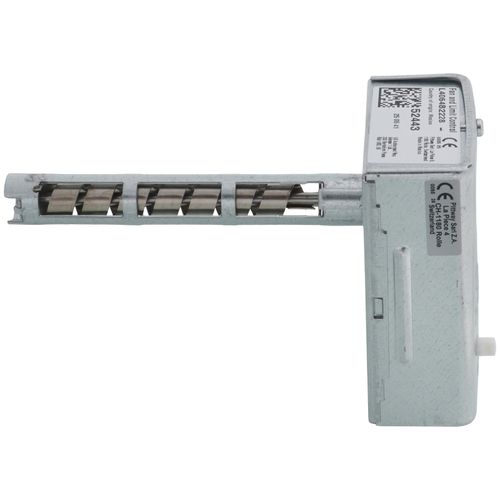

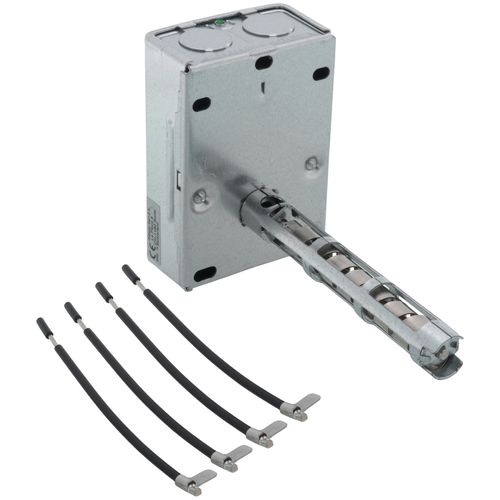

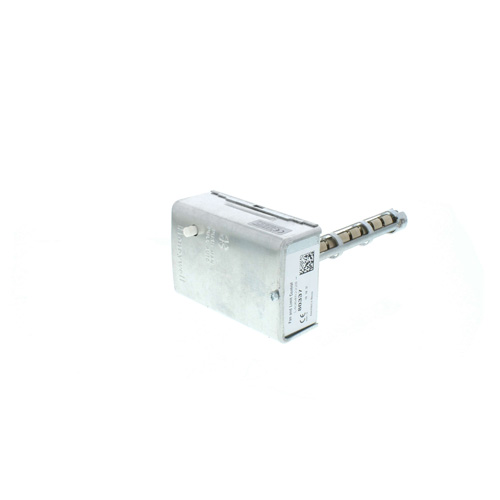

Fan and Limit Controller w/ 125 F fan on/100 F fan off, 200 F high limit, 5" insertion, L4064B2228
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$167.57 each
In Stock
Get 46 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: L4064B1469, R0114944, 626436R
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
100°F to 250°F
Fan switch makes on temp rise, High Limit switch breaks on temp rise
Limit (AFL): 8A @ 120 Vac, Fan (AFL): 14A @ 120 Vac, Fan (AFL): 7 A @ 240 Vac, Limit (AFL): 4 A @ 240 Vac
High Limit: 25°F
Surface
1-19/32" Depth
Description
–
For control of high limit and fan motor in all types of forced air heating systems.
Features
Features
- Three wiring terminal options available for easy installation:
- Push-in receptacles for stripped wire.
- Female receptacles for 1/4 in. male flag connectors.
- Field add-on screw terminals.
- Controls adapt to many competitive mounting holes in replacement applications.
- Available in a variety of fan and high limit setting ranges.
- L4064B,W models have manual fan switch that overrides fan control to keep fan running continuously.
- SUPER TRADELINE models with mounting adapters for easy installation and strain relief bushings to protect wiring from field abuse.
- Application: Forced warm air heating systems
- High Limit Temperature Range (F): 100 to 250 F
- Fan on Range: 65 to 215 F
- Fan off Range: 50 to 200 F
- High Limit Stop: 200 F
- Low Limit Stop: 100 F
- Fan on Stop: 100 F
- Switching Action: Fan switch makes and high limit switch breaks on temperature rise.
- Electrical Rating(AFL): 14 A @ 120 Vac
- Electrical Rating (AFL): 7 A @ 240 Vac
- Electrical Rating (ALR): 84 A @ 120 Vac
- Electrical Rating (ALR): 42 A @ 240 Vac
- Electrical Rating Limit (AFL): 4 A @ 240 Vac
- Electrical Rating Limit (AFL): 8 A @ 120 Vac
- Electrical Rating Limit (ALR): 24 A @ 240 Vac
- Electrical Rating Limit (ALR):48 A @ 120 Vac
- Operating Temperature Range: -40 to 190 F
- Differential Temperature: High limit 25 F
- Maximum Ambient Temperature (F): Switch: 190F; Sensing Element: 350 F
- Comments: Turns fan on and off according to plenum temperature. With helical bimetal sensing element. High limit stop set at 200F (93 C). With manual fan switch. Deluxe cover. Replaces L4064A,B,E.
Specs
–
| Application: | Fan Control Limit Control |
|---|---|
| Temperature Range (F): | 100°F to 250°F |
| Element Length: | 5" |
| Fan Off: | 50°F to 200°F |
| Fan On: | 65°F to 215°F |
| High Limit Stop: | 200°F |
| Fan-Off Stop: | 100°F |
| Fan-On Stop: | 125°F |
| Switch Action: | Fan switch makes on temp rise High Limit switch breaks on temp rise |
| Electrical Rating: | Limit (AFL): 8A @ 120 Vac Fan (AFL): 14A @ 120 Vac Fan (AFL): 7 A @ 240 Vac Limit (AFL): 4 A @ 240 Vac |
| Pilot Duty Rating: | 2A @ 24 Vac 0.25A @ 0.25 to 12 Vdc |
| Differential: | High Limit: 25°F |
| Mount: | Surface |
| Depth (Inches): | 1-19/32" |
| Width: | 3" |
| Height: | 4-9/32" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Application
Temperature Range (F)
Element Length
Switch Action
Differential
CURRENT ITEM
Fan Control
Limit Control
Limit Control
100°F to 250°F
5"
Fan switch makes on temp rise
High Limit switch breaks on temp rise
High Limit switch breaks on temp rise
High Limit: 25°F
You May Also Need
Product Reviews
4.88 out of 25 reviews
96% would recommend this product
5 star
88%
4 star
12%
3 star
0%
2 star
0%
1 star
0%
Showing 1-10 of 25 reviews
Exact fit as described
Exact fit as described
KA
PA
3 months ago
Verified Buyer
Was this review helpful to you?
I would buy again.
Works good.
Emery
Seattle
1 years ago
Verified Buyer
Was this review helpful to you?
Exact replacement for Kestoker Koker Lite Fan Limit Switch
I could not find a fan limit switch locally. Having purchased from Supply House previously, I checked their web site. Indeed they had the exact fan limit switch I needed for my Keystoker Koker Lite coal furnace. I ordered on a Friday and had the fan limit switch by Tuesday. It was a simple matter to remove the existing switch and install the new switch. In this application, three wires are used and the brass tab is not removed.
Assembler Head
Northwestern Pennsylvania
2 years ago
Verified Buyer
Was this review helpful to you?
Perfect fit replacement for my hot blast wood stove
I've kept a spare in the basement since forgetting to close the draft on the stove when lightning once too often and over heating thus requiring a replacement. The one I got from supply house worked perfectly so I ordered a second for future needs. Recently I was sure I'd fried the one in the stove so ordered a replacement prior to installing the spare I'd been keeping only to find someone had flipped the switch upstairs that supplied power to the fan. So in addition to the one I installed several years ago now being a resilient product the return policy was completely painless.
Always be prepared
Canandaigua ny
2 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
Used on my furnace
Blush
Osceola iowa
3 years ago
Verified Buyer
Was this review helpful to you?
Good quality product
Worked great. Allowed the fan to come on when it should.
Burnerman
Chicopee, Ma
3 years ago
Verified Buyer
Was this review helpful to you?
Worked right out of the box.
I had this installed immediately and it worked perfectly. I will definitely purchase from SupplyHouse.com in the future.
Heat
Parlier, CA
5 years ago
Verified Buyer
Was this review helpful to you?
1st quit working, Exchange return was Awesome!
1st one quit working in the start of new heating season. I always thought the thing came on/off at the wrong points even though the numbers were set correctly. It failed and would only come on if I touched (not pushed) the white manual fan switch.
Warranty replacement by SupplyHouse was GREAT!
stufine
Cincinnati, Ohio
5 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
For the gas furnace
Tony
Fairfield ct
5 years ago
Verified Buyer
Was this review helpful to you?
Fixed my problem
My furnace was not running as should. Someone told me to change the fan limit controller to increase heat out put which did.
Larry the fixer
Illinois
5 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Do you have a picture of this item with the cover off?
Asked by k 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo we do not, there is more information here: http://s3.supplyhouse.com/manuals/1259864034499/20009_PROD_FILE.pdf
