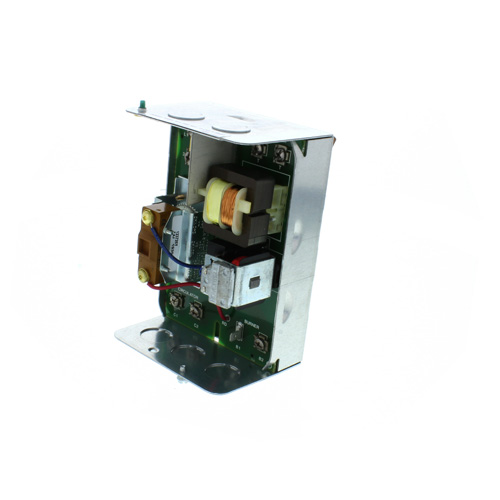

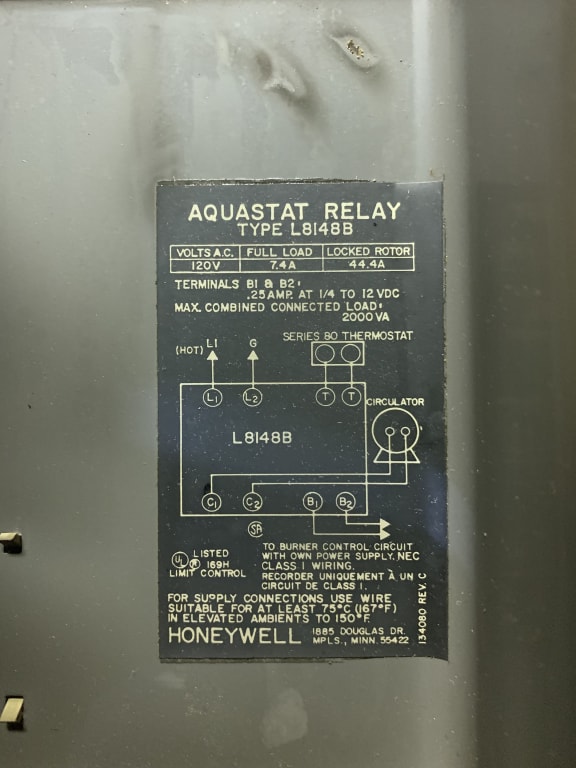

High Limit Horizontal Mount Aquastat Relay, 8-Degree(F) differential, L8148A1017
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Features:
- High limit opens burner circuit only.
- Include transformer and accessory terminals for adding a remote low limit controller.
- Case available for horizontal or vertical mounting.
- Requires a 24 Vac thermostat with heat anticipator set at 0.2A.
Specifications:
- High Limit Aquastat Relay with 8 F fixed differential
- Operating Range, High Limit (C): 54 C to 116 C
- Insulation Depth (in.): 1-1/2 in. to 3 in. less well.
- Insulation Depth (mm): 38 mm to 76 mm less well
- Maximum Ambient Temperature (C): 66 C with 1.2 A 24 V load; 25 C with 1.4A, 24V load
- Electrical Ratings, Burner: At Full Load-- Low Voltage: 0.8 A max. @ 24 Vac: Line Voltage: 7.4 A @ 120 Vac: 3.7 A @ 240 Vac; At Locked Rotor-- Line Voltage: 44.4 A @ 120 Vac: 22.7 A @ 240 Vac
- Approvals, Underwriters Laboratories Inc : UL Listed: File No. MP466, Vol. 13, Sec. 2, Guide No. MBPR2.
- Approvals, Canadian Standards Association: Certified: File No. LR1620, Guide No. 400-E-O
Specs
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Application: | High Limit |
| Temperature Range (F): | 140°F to 240°F |
| Switch Action: | SPST |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc Circulator: 7.4 A @ 120 Vac Circulator: 3.7 A @ 240 Vac Burner: 7.4 A @ 120 Vac Burner: 3.7 A @ 240 Vac |
| Electrical Ratings (ALR): | Burner: 22.2 A @ 240 Vac Burner: 44.4 A @ 120 Vac Circulator: 44.4 A @ 120 Vac Circulator: 22.2 A @ 240 Vac |
| Differential: | Fixed 8°F |
| Height: | 4-1/8" |
| Width: | 6-1/8" |
| Depth (Inches): | 3-1/8" |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Max Pressure (PSI): | 255 (Immersion Well) |
| Mount: | Horizontal |
| Max Ambient Temp (°F): | 150F with 1.2A 24V Load 77F with 1.4A 24V Load |
| Connection Type: | Quick-Connect |
| Capillary Length: | 4-1/2" |
| Anticipator Rating: | 0.2 A |
| Setpoint Temp Range: | 240 F |
| Voltage: | 120v |
