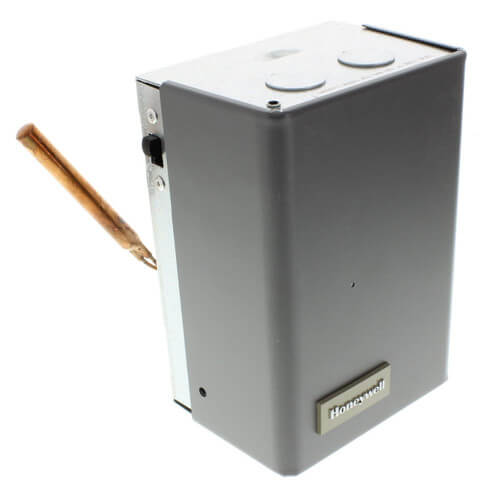

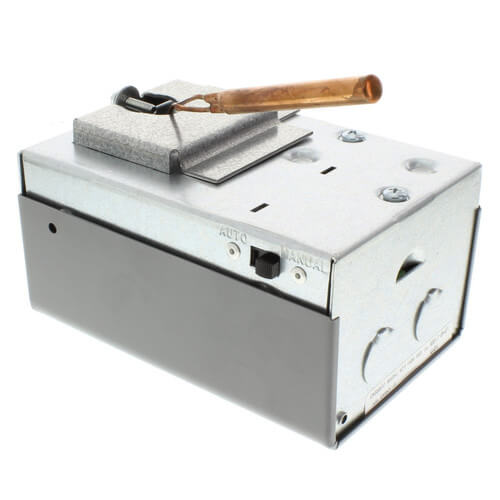

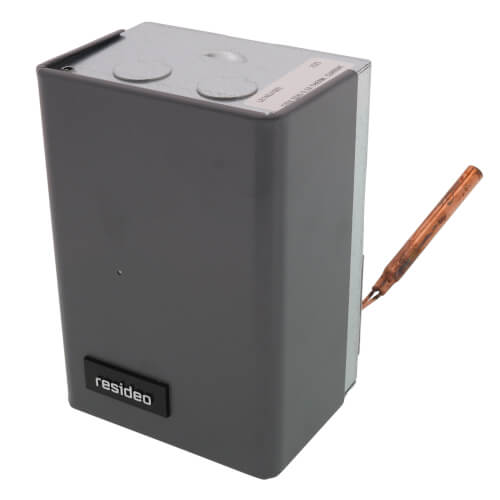

Aquastat Relay, 8-Degree(F) Differential
Hover image to zoom
$274.44 each
In Stock
In Stock
Get 284 Mon, Apr 3
More Available
Fast Track Logo
Order by 4PM, receive Monday
This item replaces: 8J48A-209, 415-510-000, 410-538-000
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Electrical Rating icon
Burner: 3.7 A @ 240 Vac, Burner: 7.4 A @ 120 Vac, Circulator: 7.4 A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc, Circulator: 3.7 A @ 240 Vac
Differential icon
Fixed, 8°F
Switch Action icon
SPST
Mount icon
Vertical, Horizontal
Temperature Range (F) icon
120°F to 240°F
Height icon
6-1/8"

Description

–
Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors.

Features
  • High limit opens burner circuit only.

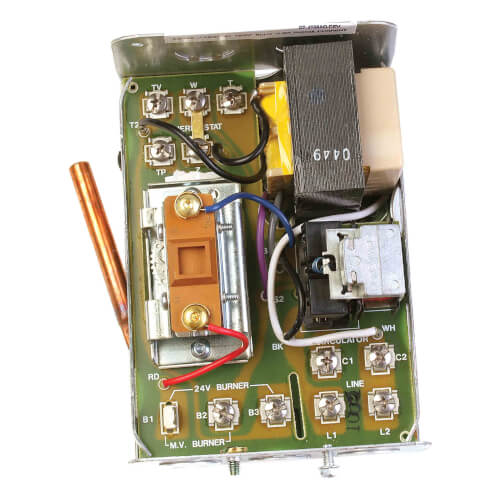

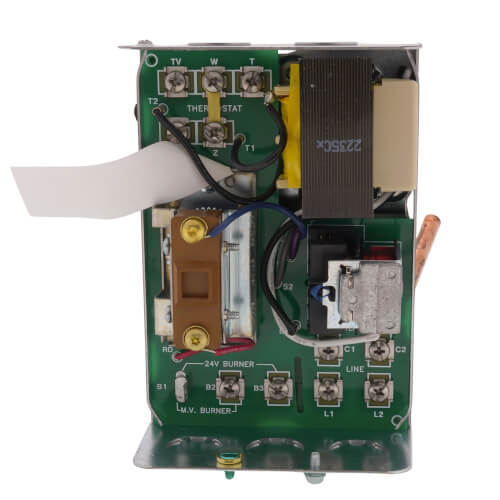

  • Include transformer and accessory terminals for adding a remote low limit controller.

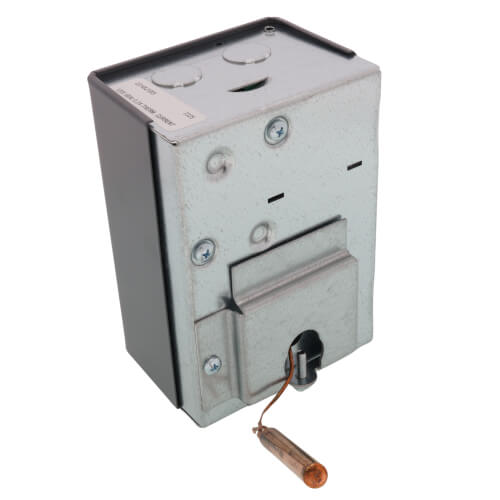

  • Case available for horizontal or vertical mounting.
  • Requires a 24 Vac thermostat with heat anticipator set at 0.2A.

    • Specs

    –
    Application:

    High Limit

    Switch Action:

    SPST

    Electrical Rating:

    Burner: 3.7 A @ 240 Vac

    Burner: 7.4 A @ 120 Vac

    Circulator: 7.4 A @ 120 Vac

    0.25 A @ 0.25 to 12 Vdc

    Circulator: 3.7 A @ 240 Vac

    Electrical Ratings (ALR):

    Burner: 22.2 A @ 240 Vac

    Circulator: 22.2 A @ 240 Vac

    Burner: 44.4 A @ 120 Vac

    Circulator: 44.4 A @ 120 Vac

    Temperature Range (F):

    120°F to 240°F

    Differential:

    Fixed

    8°F

    Height:

    6-1/8"

    Width:

    4-3/8"

    Depth (Inches):

    3-1/8"

    Operating Humidity:

    0% to 95% (non-condensing)

    Mount:

    Vertical

    Horizontal

    Max Ambient Temp (°F):

    77F with 1.4A 24V Load

    150F with 1.2A 24V Load

    Connection Type:

    Quick-Connect

    Capillary Length:

    4-1/2"

    Anticipator Rating:

    0.2 A

    Voltage:

    120v

    Frequency:

    60 Hz

    Max Pressure (PSI):

    255 (Immersion Well)
