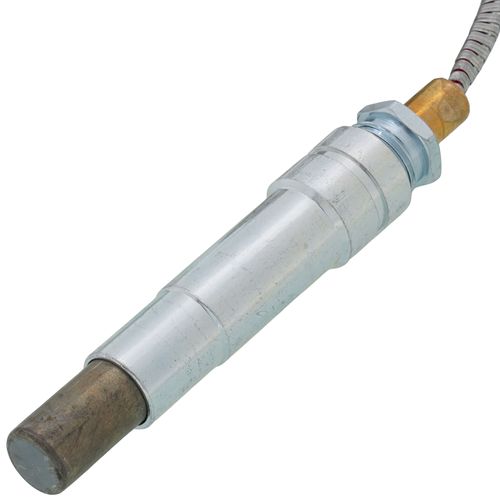

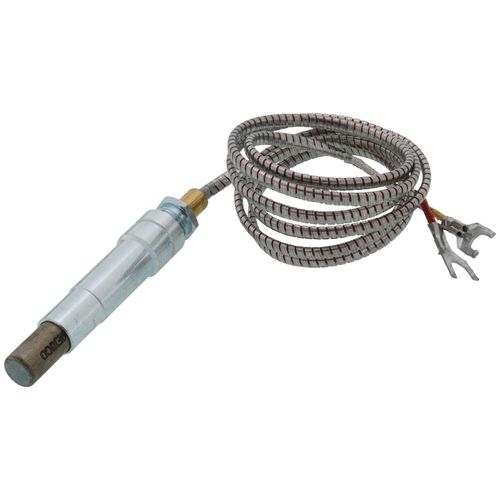

35" Thermopile Generator w/ PG9 Adapter (750 mV), Q313A1170
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$77.89 each
In Stock
Get 34 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
35" Length
750mV
Spade Terminals Connection
Q327 Pilot Burners, Q379 Pilot Burners, Q314 Pilot Burner, Q377 Pilot Burners, Q324 Pilot Burners, Q382 Pilot Burners
Description
–
Q313 Thermopile Generator contains multiple thermocouples connected in series to increase the millivoltage output. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Specifications
Features
Specifications
- Voltage: 750 mV

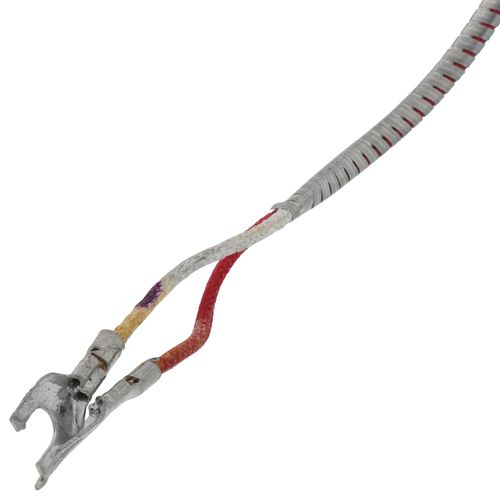

- Connection Type: Spade Terminals
- Lead Length (in.): 35 in.
- Open Circuit Output (mV): 600 mV to 750 mV
- Resistance: 2.89 ohm
- Temperature Ratings (F): Hot Junction 1400 F
- Temperature Ratings (F)
- Includes:PG9 adapter (part no. 393948) and 1/2 in. thermopile attaching nut
- Used With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
Features
- Push-in clip, split nut, and adapter assembly for easy pilot burner installation
- Spade or quick-connect terminals available for millivolt gas control connections
- Male nut connector for Pilotstat safety control power units
- Available in a variety of lead lengths
Specs
–
| Length (Inches): | 35" |
|---|---|
| Voltage: | 750mV |
| Connection Type: | Spade Terminals |
| Open Circuit Output: | 600 mV to 750 mV |
| Resistance : | 2.89 ohms |
| Temperature Rating: | Cold Junction: 780 F Hot Junction: 1400 F |
| Includes: | 1/2" Thermopile Attaching Nut PG9 Adapter |
| Used With: | Q327 Pilot Burners Q379 Pilot Burners Q314 Pilot Burner Q377 Pilot Burners Q324 Pilot Burners Q382 Pilot Burners |
