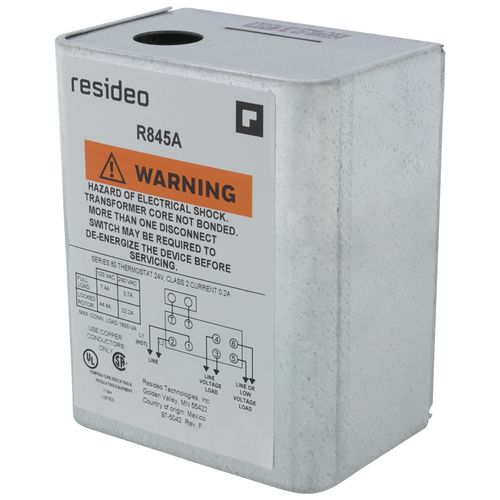

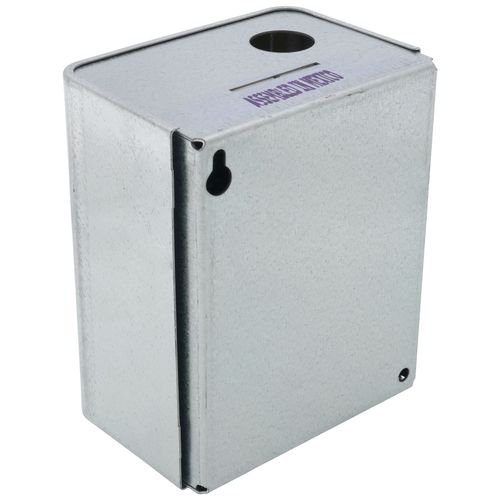

Switching Relay w/ Internal Transformer DPST Line Voltage Relays, R845A1030
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$125.00 each
In Stock
Get 24 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120V
DPST, one pole line voltage, the other line or low voltage
2
5-1/4"
7.4 Amps
120v
Description
–
Switching Relay provides DPST switching for hydronic zone controlled heating systems or SPST control of two separate loads. The R845A may be directly controlled by any 2-wire series 80 thermostat.
Description
Switching relay with internal transformer, provides Dpst switching for hot water zone control systems, or spst control of two separate loads.
Application
Description
Switching relay with internal transformer, provides Dpst switching for hot water zone control systems, or spst control of two separate loads.
Application
- Provide intermediate switching of a line voltage device form a low voltage controller.
- Switching Action DPST
- One pole line voltage, the other line or low voltage Coil Ratings
- Current 0.4A
- Coil Ratings Voltage, 24 Vac
- Transformer Primary Rating, 120 Vac, 50/60 Hz
- Transformer Secondary Rating, 24 Vac
- Temperature Range (F): 115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz.
- Temperature Range (C) 46 C maximum ambient for 60 Hz. 41 C maximum ambient for 50 Hz.
- Thermostat Compatibility: Low voltage (Class 2) 2-wire
- Dimensions (in.) 5-1/4" high x 4-1/4" wide x 2-5/16" deep
- Dimensions (mm) 133 mm high x 108 mm wide x 59 mm deep
- Electrical Ratings - Primary Voltage 120V. 50/60 Hz
- Electrical Connections (Control Circuit) 2-Wire
- Approvals, Underwriters Laboratories Inc, Listed: File No. E4436, Guide No. XAPX
- Approvals, Canadian Standards Association, Certified: File No. LR1620
- Includes Integral transformer, enclosure
- Tradeline Value: Tradeline
- Electrical Ratings (Maximum Input) 5.0 W
- Electrical Ratings (Primary Voltage) 120V, 50/60 Hz
- Contacts Electrical Rating Main Contacts 120 Vac: 7.4A AFL. 44.4A ALR. 10A Resistive
- Contacts Electrical Rating Secondary Contacts 120 Vac: 3A ALF. 18A ALR
- Contacts Electrical Rating Main Contacts 240 Vac: 3.7A ALF. 22.2A ALR. 6.0A Resistive
- Contacts Electrical Rating Secondary Contacts 240 Vac: 2A AFL. 12A ALR
- Contacts Electrical Rating Secondary Contacts Pilot Duty Rat 50 VA @ 24V
- Contacts Electrical Rating Contacts Max. Connected Load 2000 VA (120 Vac to 240 Vac)
- Electrical Rating: Maximum Input 5.0W
Specs
–
| Application: | Zoning |
|---|---|
| Number of Zones: | 2 |
| Width: | 4-1/4" |
| Height: | 5-1/4" |
| Amperage: | 7.4 |
| Power Method: | 120V |
| Voltage: | 120v |
| Depth (Inches): | 2-5/16" |
| Ambient Conditions: | 115 F max for 60 Hz 105°-115°F Max 105 F Max for 50 Hz |
| Relays: | Dpst Line Voltage |
| Switch Action: | DPST, one pole line voltage, the other line or low voltage |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Number of Zones
CURRENT ITEM
2
You May Also Need
Product Reviews
4.94 out of 16 reviews
100% would recommend this product
5 star
94%
4 star
6%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 16 reviews
Exactly what I needed

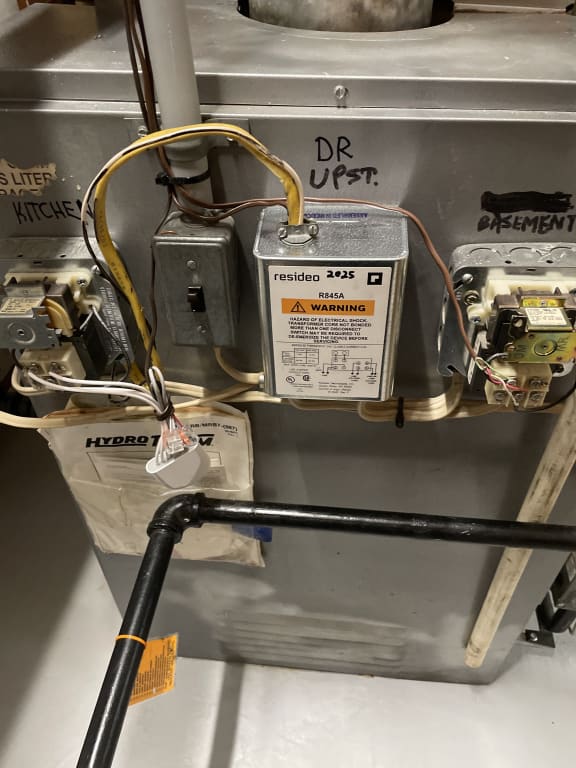

This replaced a 40 year old Honeywell relay/transformer that had failed. Works perfectly. Main difference is they now use a circuit board rather than simply wires. Probably could have gone with an alternative three wire LV solution for the wifi thermostat but was able to modify this to provide the constant power needed. Next time.
Bill
Washington DC
7 months ago
Verified Buyer
Was this review helpful to you?
I bought 2
Works very good
Dave
Brooklyn NY
1 years ago
Verified Buyer
Was this review helpful to you?
I bought 2
Very good
Dave
Brooklyn NY
1 years ago
Verified Buyer
Was this review helpful to you?
Exact Match!!!
This valve is an exact match to the other two zone valves I already had installed on my system. I was thrilled to not only find it, but that the price was the best around. Thank you so much from a very satisfied customer!!!
Rob
Binghamton, NY
2 years ago
Verified Buyer
Was this review helpful to you?
Fast service, great price.
This parts order saved me a bundle on not having to replace an older boiler in the middle of winter. Thanks!!
GH
Toms River, NJ
2 years ago
Verified Buyer
Was this review helpful to you?
Perfect zone control for hydronic heat
Perfect
Heaterman
VA
3 years ago
Verified Buyer
Was this review helpful to you?
Correct item fair price
Correct item fair price fast shipping
A-1st
Connecticut
4 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy this product again if it lives longer this time
this was an identical replacement for a unit that lasted 4 -5 years which I feel should have lasted a lot longer. The dead unit failed because of a bad solder joint on the printed circuit board. I soldered that & now it works fine. So it's now a back-up for the new one I just got or others in the system.
Mike
Shelburne, VT
9 years ago
Verified Buyer
Was this review helpful to you?
The Product was a replacement, and it was very Cost Saving!
I found this relay on your online site and very much cost savings, PLUS the next day delivery was outstanding. I ordered on a Thursday and it was shipped (UPS) that night and arrived the next afternoon before 6PM..OUTSTANDING!!
I have your online store in my Favorites.
Thanks for helping and I will definitely call again when I need your help.
Dave
... Sterling, NY
9 years ago
Verified Buyer
Was this review helpful to you?
All of the parts were perfect
Perfect
Cocono del Norte
Santa Fe NM
9 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: I have a multi-zone oil baseboard heating system with five zones. Each zone has an RA845A and a circulator. The RA845A 1030 relay connected to one of the zones will intermittently kick on and off even when the thermostat for the zone is turned off. I think that it could be a bad relay but is there any other potential cause that should be checked before I purchase a replacement RA845A? Any guidance would be appreciated. Thanks
Asked by Tom 13 years ago
Add your answer
Verified Reply- PexSupply StaffYou might want to double check the wiring to make sure nothing is wrong. If the wiring is all correct, the relay may require replacement.
Was this review helpful to you?
-
Try switching the T-T wires and the pump wires with another zone, see if the problem stays with that relay or stays with that zone, in which case there is probably something going on the thermostat or its wires. Henry
Was this review helpful to you?
-
I suggest that you replace the relay.
Was this review helpful to you?
Q: Are the r845 new or used
Asked by Tom 14 years ago
Add your answer
-
Brand new in original box. Sent from my iPhone
Was this review helpful to you?
-
New -John
Was this review helpful to you?
