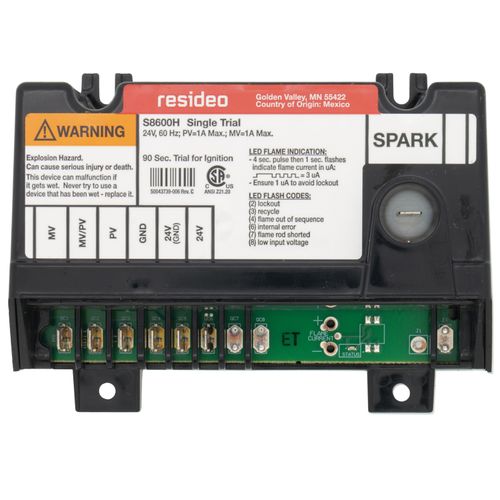

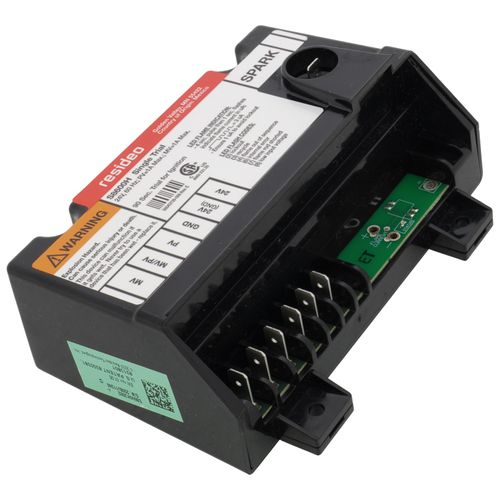

Intermittent Pilot Control for LP & NG (90 Second Trial Time & Lockout)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$164.06 each
In Stock
Get 14 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
This item replaces: 412-808-000, 7747007839
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Intermittent Pilot
Description
–
These ignition modules provide ignition sequence, flame monitoring and safety shutoff for intermittent pilot central furnaces and heating appliances.
Features:
Technical Specifications:
Features:
- Provide up to 1.0 A pilot and 1.0 main valve current rating.
- Use a separate igniter and sensor (Q179C with igniter and sensor mounted on one bracket, or Q354 sensor with Q345, Q346, Q348, Q362 or Q381 igniter-sensor recommended.)
- Can be used on natural on LP gas; they provide 100 percent shutoff on ignition failure.
- Lock out on shutoff.
- Manual reset is required.
Technical Specifications:
- Ignition System Type: Intermittent Pilot
- Ignition Sequence: Lockout
- Typical Gas Control: VR8204, VR8304
- Type of Gas: Natural or LP
- Flame Sense: Single Rod
- Ignition Source: Internal high voltage spark generator
- PrePurge: None
- Ignition Trials To Lockout: 1
- Lockout Timing: 90 seconds
- Ignition Trial Time (sec): 90 sec
- Maximum Valve Load @ 24 Vac (Amps): 1A Pilot, 1A Main @ 24Vac
- Typical Ignition Hardware: Q345, Q3451
- Dimensions: 3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Approvals, CSA: Design Certified
- Flame Failure Response Time (sec): 2 seconds maximum
Specs
–
| Ignition Type: | Intermittent Pilot |
|---|
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Ignition Type
CURRENT ITEM
Intermittent Pilot
You May Also Need
Product Reviews
4.67 out of 9 reviews
89% would recommend this product
5 star
89%
4 star
0%
3 star
0%
2 star
11%
1 star
0%
Showing 1-9 of 9 reviews
Worked exactly as should
This was exactly what we needed, at a fraction of the cost as anywhere else, Thanks for that!
Grimrebel
Lolo, MT
1 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I wouldn't buy this product again
It was represented to be a direct replacement for the Honeywell S8600H but it didn't have the vent control module or the extra Th-W contact that the Honeywell unit had.
Mike
Oklahoma
3 years ago
Verified Buyer
Was this review helpful to you?
Perfect
Basically plug and go. Perfect replacement
B
Ohio
3 years ago
Verified Buyer
Was this review helpful to you?
Great buy
It was the right part we needed. It came quickly. The manual on the website was the type we needed to fix our heater it was very helpful and affordable fix. Holding up great.
Inesa
Fort Worth, TX
3 years ago
Verified Buyer
Was this review helpful to you?
Prompt Delivery
Supply House is my go-to source for hvac parts. Good pricing and prompt delivery.
Dan
Alabama
4 years ago
Verified Buyer
Was this review helpful to you?
Great replacement part
Easy web site, perfect fit, quality part at reasonable price.
Bob
Stamford, ct.
6 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
For my boiler working as should
VG
Erie PA
7 years ago
Verified Buyer
Was this review helpful to you?
Exact
This was match to the OEM part.
BSP
Poughkeepsie
8 years ago
Verified Buyer
Was this review helpful to you?
Exact to OEM part
Identical to OEM part at twice the price
Mr Parts
Massapequa, NY
10 years ago
Verified Buyer
Was this review helpful to you?
