Electronic Fan Timer with Adjustable Heat
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$139.22 each
In Stock
Get 193 Wed, Dec 13
More Available
Order by 4PM, receive Wednesday
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Will this part work with my unit?
Click to see if this part is compatible with your unit.Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
18 to 30 Vac
Description
–
Specifications
Features
- Electronic Fan Timer with adjustable heat fan on and off and fixed 0 sec cool fan on and off

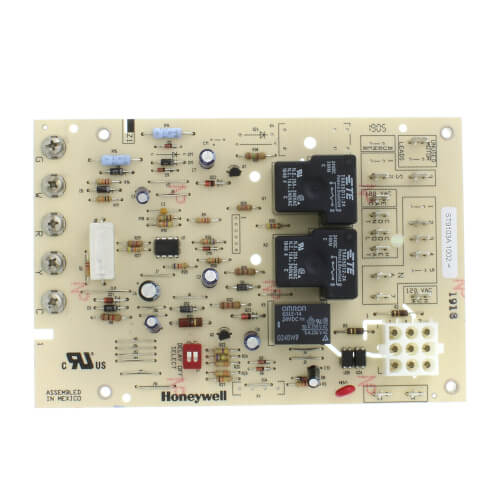

- Application: A single circuit board providing combustion air blower control, two speed circulating air blower control, oil primary control, limit circuit inputs, thermostat wiring terminations, & a central appliance wiring point for an oil fixed furnace.
- Temperature Range, Ambient (F): -40 F to 150 F
- Replaces: ST9103A1002
Features
- Central appliance wiring point simplifies appliance assembly and service.
- Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.
- Delay On: 30 seconds, fixed.
- Delay Off: 60, 90, 120, 150 seconds, field-adjustable.
- Timing Tolerance: larger of ±20% or 5 seconds
Specs
–
| Application: | Fan Control |
|---|---|
| Electrical Rating: | 18 to 30 Vac |
| Frequency: | 50 Hz 60 Hz |
| Heat Blower ON Delay: | 30 Seconds |
| Heat Blower OFF Delay: | 120 Seconds 90 Seconds 60 Seconds 150 Seconds |
| Cool Blower OFF Delay: | 0 Seconds |
| Cool Blower ON Delay: | 30 Seconds |
| Features: | Adjustable Temperature |
