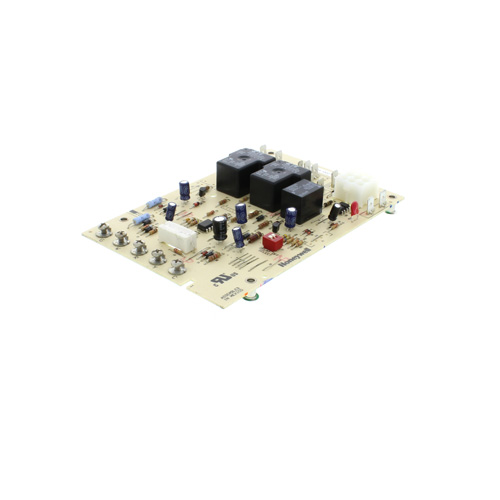

Electronic Fan Timer with Adjustable Heat, ST9103A1002
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$158.10 each
In Stock
Get 14 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
18 to 30 Vac
Description
–
Specifications
Features
- Electronic Fan Timer with adjustable heat fan on and off and fixed 0 sec cool fan on and off
- Application: A single circuit board providing combustion air blower control, two speed circulating air blower control, oil primary control, limit circuit inputs, thermostat wiring terminations, & a central appliance wiring point for an oil fixed furnace.
- Temperature Range, Ambient (F): -40 F to 150 F
- Replaces: ST9103A1002
Features
- Central appliance wiring point simplifies appliance assembly and service.
- Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.
- Delay On: 30 seconds, fixed.
- Delay Off: 60, 90, 120, 150 seconds, field-adjustable.
- Timing Tolerance: larger of ±20% or 5 seconds
Specs
–
| Application: | Fan Control |
|---|---|
| Electrical Rating: | 18 to 30 Vac |
| Frequency: | 50 Hz 60 Hz |
| Heat Blower ON Delay: | 30 Seconds |
| Heat Blower OFF Delay: | 90 Seconds 150 Seconds 120 Seconds 60 Seconds |
| Cool Blower OFF Delay: | 0 Seconds |
| Cool Blower ON Delay: | 30 Seconds |
| Features: | Adjustable Temperature |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.89 out of 66 reviews
100% would recommend this product
5 star
91%
4 star
8%
3 star
2%
2 star
0%
1 star
0%
Most Liked Positive Review
worked perfectly
My local AC repair man was going to charge 180 for the board and 180 to install. the item was shipped to me within a few business days. Came w instructions although i recommend removing one wire at a time in order to not mess anything up. I never even looked at installation book and I am no electrician. Just make sure you electric breaker is off. I paid a few more dollars for quicker shipping but for [$] I am elated. It been working for me for 1 month now but I hope it goes for years. Good luck.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
heater blower motor board
the produst worked great [...] went right in and i had heat again
Showing 1-10 of 66 reviews
of course
it works as designed , great product.
George
va.
3 years ago
Verified Buyer
Was this review helpful to you?
HVAC supplies
It's hard too write a review when this company has everything I need and never one time did I have to send anything back. They a great company and my local suppliers can't or even have my items in stock so yes these people are the best my go too supplier when in need. Thank you, Chuck
Chuck
York, Pennsylvania
3 years ago
Verified Buyer
Was this review helpful to you?
Replacment for ST9103A 1069
Supply House delivered this in one day (amazing). Added a 5 amp inline fuse between power line from 120-24 transformer and the board. Perfect replacement to the much more expensive ST9103A 1069.
PA1018
Philadelphia, PA
3 years ago
Was this review helpful to you?
Worked well even tough I needed a -1069 model
The difference between the ST9103A-1002 and -1069 (Trane version) was a 5A fuse . My choice was to add a 5A fuse with the supply on Pin 2, or remove the fuse from my old board and solder it onto the new board (and to remove the wire jumper across F1 pads. I could have bought the correct board, was it was a few hundred bucks more.
Worked fine in the furnace.
LArry
Boston
3 years ago
Verified Buyer
Was this review helpful to you?
Resideo electronic fan timer for my furnace.
The first one I ordered was defective. That took a while for my serviceman to arrive and diagnose it. The supply House team was very efficient and sent me a new one right away. I got a prompt response. They didn't charge me for the extra shipping.
Steve C
Steve C.
New Milford NJ
4 years ago
Verified Buyer
Was this review helpful to you?
would buy again
exact replacement
William
Markham, Il
4 years ago
Verified Buyer
Was this review helpful to you?
Easy fast and fit
👍
Bob
Newtown square, pa.
4 years ago
Verified Buyer
Was this review helpful to you?
I would purchase again
Fit perfect,
patrick
Ohio
4 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again.
Yes
Pattie
Brookhaven,PA
4 years ago
Verified Buyer
Was this review helpful to you?
I hope I dont half too
The product was the RIGHT ONE and you sent it to me FAST. Thank you for your help getting the right product toooo.
wayneo
mystic,ct
5 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: I replaced st9103a1036 with st9103a1002. The blower turns on now without thermostat calling for heat. Runs for a while, then rests and then turns itself on.
Asked by Eva 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe direct replacement that your old part calls for seems to be part R99G004, not st9103a1002. This could be where your problem lies.
Was this review helpful to you?
Q: will the st9103a 1002 replace the st9103a 1028 and work
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, part ST9103A1002 replaces the obsolete ST9103A1028.
Was this review helpful to you?
