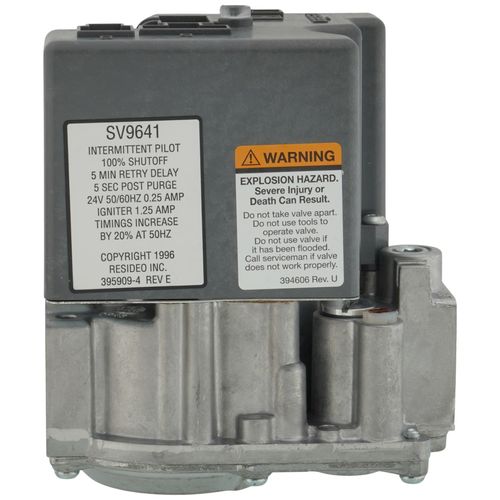

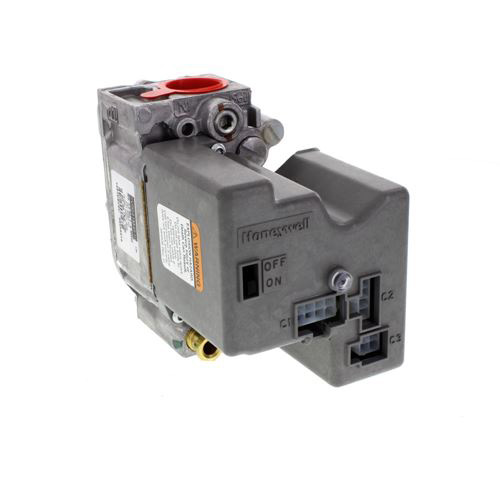

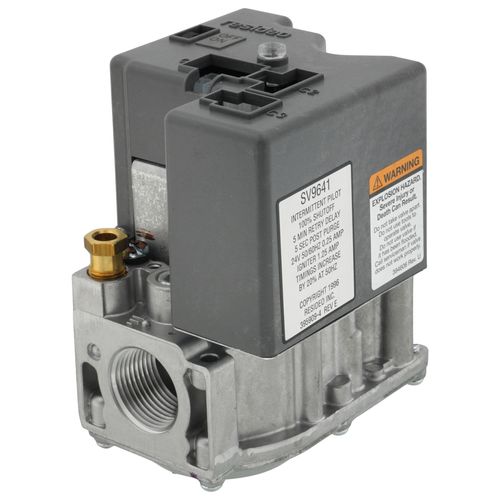

3/4" NPT Intermittent Hot Surface Pilot Ignition SmartValve, SV9641M4510
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Licensed Contractor Required
Product Highlights
Description

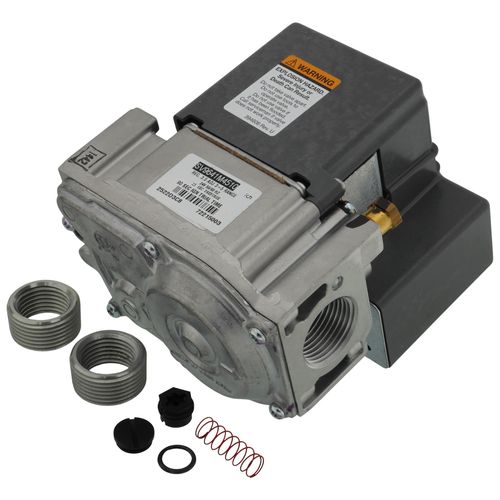

Includes: (2) 3/4" x 1/2" reducer bushings and an LP conversion kit.
Features
- These controls communicate directly with an electronic fan timer (ST9160 Electronic Fan Timer for single stage applications; ST9162 Electronic Fan Timer for two-stage applications) in typical forced warm air furnace applications.
- They also interface with the 208907 Terminal Board, providing compatibility with power stealing thermostats. Or, they directly interface with the appropriate power supplies and a system thermostat for additional appliance applications.
- When controlled directly by a thermostat, these controls do not provide a postpurge function, because power to the control is removed when the thermostat call for heat ends.
- The SV9541 and SV9641 Systems are suitable for a wide range of fan-assisted combustion gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances.
- Flame Sense: Two Rod
- Type of Gas: Natural
- Ignition System Type: Intermittent Hot Surface Pilot Ignition
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Ignition Trials To Lockout: Continuous retry
- PrePurge: 15 seconds
- Body Pattern: Straight-through
- Opening Characteristics (standard, step): Standard Opening
- Control Voltage (Thermostat or other call for heat): 24 Vac
- Ignition Trial Time (sec): 90 Sec
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Flame Failure Response Time (sec): 1.6 sec @ 3 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Dimensions (in.): 3.2 in. wide x 4.9 in. high x 4.1 in. long
- Dimensions (mm): 81 mm wide x 124 mm high x 104 mm long
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Inlet/Outlet Size (in.): 3/4 in. NPT x 3/4 in. NPT.
- Maximum Capacity (ft³/hr): 415 ft³/hr
- Maximum Capacity (m³/hr): 11.8 m³/hr
- Minimum Capacity (ft³/hr): 30 ft³/hr
- Minimum Capacity (m³/hr): 0.8 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 300 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 8.5 m³/hr
- Pressure Tapping: 1/8 in. - NPT
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
- Pilot Gas Outlet: Yes
- Tradeline Value: Super Tradeline
Specs
| Replaces: | SV9640M4124 SV9540M2229 SV9640M4116 SV9640M3126 SV9640M4132 SV9540M2260 SV9541M2094 SV9540M2245 SV9540M2278 |
|---|---|
| Fuel Type: | Natural Gas |
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Ignition Trial Time: | 90 sec |
| Inlet Size: | 3/4" |
| Outlet Size: | 3/4" |
| Ignition Type: | Direct Hot Surface Pilot |
| Ignition Trials to Lockout: | Continuous Retry |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
Most Liked Positive Review
Awsome
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Defective From Stock
Worked great!
Have bought several items
Works perfectly, easy install
I would buy this again if the need arises.
Just what was needed!
Quick shipping
Great service and product
Great Service
Works great! As advertised.
Superseded Gas Valves
Product Q&A
5 QuestionsQ: I am wondering if the SV9541M4510 is a direct replacement for the SV9541M2094? I see on your list that it says it is. I also see that the SV9541m2094 has 1/2" inlets and outlets. The SV9541M4510 has 3/4" with 1/2" bushings. I replaced my original valve 2 years ago with the original part and am just concerned that this is not a direct replacement and would like a verification. Thanks!
Asked by Jason 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it is.
Old smart valve part number: SV9541M2094 New smart valve part number: SV9641M4510 I have a comfortmaker heating system and the old smart valve part number was the above: SV9541M2094. When googling this part number and going to honeywells website, that is where I found the the old smart valve numbe SV9541M2094 was replaced by the new smart valve part number: SV9641M4510. Both the old valve that was on my system and the new valve that I received from Pexsupply.com has a 3/4 " thread that directly hooks onto my propane gas line. The new 3/4" smart valve that I received from Pexsupply.com is working great and have had no problems. Hope this answers your question.
I think if you could get a look at the instructions with the new valve it pobably says whitch valves it will replace. Maybe Pexsupply could scan it and forward...sorry I can't find mine... strange it needs to be changed again...mine got water in it that froze. dickc
Q: Can you tell me approximately how long it takes to install this product and How do I install this?
Asked by Sherry 14 years ago
Add your answer
First of all I must tell you I'm not a furnace repair Tech. I am in the greenhouse business and use 8 natural gas furnaces so over the years I've learned to make my own repairs. It should take no more than an hour to make the change if there are no complications. My Installation procedure would be as follows (remember I'm no tech.) 1) turn off the gas service going to the furnace. 2) turn of the power going to the furnace. 3) Unplug the two wire harnesses going to the valve making sure you know where they go back. 4) Very carefully remove the gas line connecting the pilot light. then carefully move the line out of your way. 5) disconnect the pipe connecting the valve to the main gas line, hopefully you have a union close to the valve. 6) Now carefully remove the gas valve from the furnace and then remove any of the fittings from the valve you will need to connect the new valve. 7) check all your fittings to be sure they are in good condition. 8) Now you pretty much just need to reverse the procedure to reinstall the new valve. I use tephlon tape on the fittings when I reinstall. This is how I do it. If your not sure about it I would let a repair man do it, remember how expensive the item is your dealing with. Be sure to check for leaks before using the furnace.
30 min + -, it's mounted by threading onto the gas piping, so disassembling/ reassembleing the supply side may be the most work, be sure to have the right pipe wrenches, wrenches, etc as holdin the vavle correctly is important not to cause damge. Use good thead sealant an check for leaks. time and methodes will vary due to diffrent make/model furnaces . I replaced a valve that had water freezing damage.
The Pex Supply company was first of all helpful in getting me the right part because the model numbers are easy to get wrong. This job can be done by a non-pro who feels confident in their abilities in about half an hour or so. You will need adjustable pipe wrenches, sealant tape for use with gas lines (plumbing tape is no good), and some screwdrivers. Don't start this in cold weather if you can't finish it. Your gas supply will be opened and you won't be able to turn it on until its hooked up again. I would start by taking pictures of your valve in place before you start and any connection wires in case of any question later. Turn off gas and electric supply to heater and you can remove the valve. Not much to it. The replacement comes with adapters for supply line size in case they are different. Use sealant tape on threads when putting fittings on. Reconnect wiring and turn power and gas on again. Check for gas leaks and you should be fine. An hour is more than enough time to do this. Again, don't try this if you're unsure, especially in cold weather. Take pictures before you start of everything connected to valve for reference later. If you're not doing this in cold weather give the heater a test run.
20min
I got the part through Pexsupply.com at a cheaper price than what my heating company was going to charge me ( About $ 400.00 difference). I had a heating tech that works for a heating company install it on the side. I did not install it. Sorry.
It took about an hour from time I started until the furnace. Unless you have HVAC experience, I wouldn't recommend doing it otherwise. I do recommend PexSupply.com to purchase this valve! Sent from my iPad
Q: I installed this product. I ran the test and had ignition. now when unit calls for heat, ignigtor glows, but it get no pilot light gas. Any suggestions?
Asked by Eric 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe voltage going to the gas valve may be bad or it is possible the valve itself is defective.
Check For Gas at line, you might have to wait until all the air purges from line. If you have any other problem it is more than likely the gas valve!.
Make certain that the sensor can tell that the heater is glowing. I heard that these wires sometimes get dirty and need to be cleaned carefully with sandpaper. After cleaning try the test again the gas should turn on after a few seconds.
Q: I have a non-functioning SV9541M2094 on my furnace. Is the SV9641M4510 valve a direct replacement and updated model of the SV9541M2094? I have heard that the 9541 likes to stop working after 5 years or so. So was wondering if the 9641 is more reliable.
Asked by Red 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe SV9541M2094 is replaced by the SV9641M4510. While we cannot confirm whether this part is more reliable, it is the direct replacement and the only SmartValve that is compatible with the old control.
Q: looking for lp conversion kit for this valve
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe LP conversion kit is included in the SV9641M4510 box.
