Description

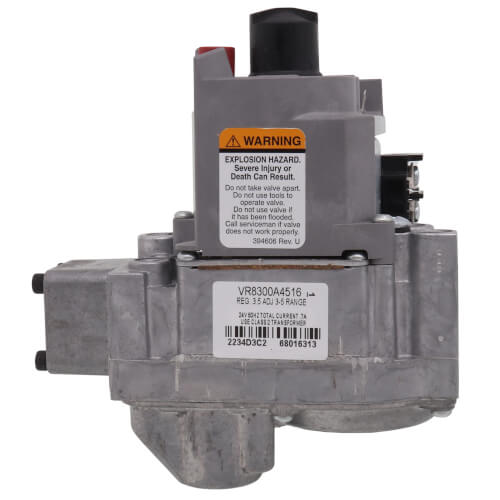

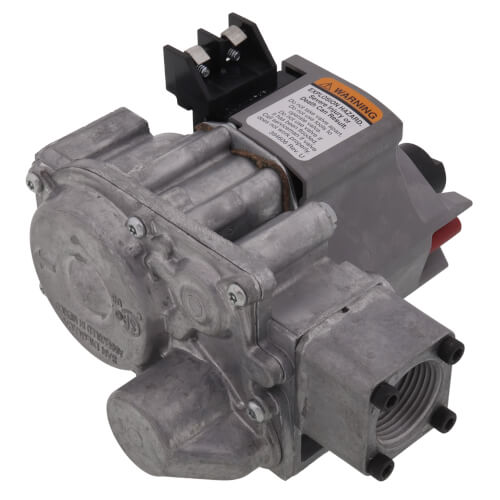

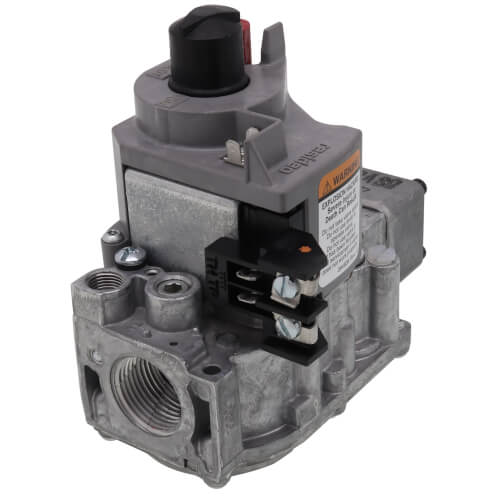

24 Vac Dual Standing Pilot Gas Valve with 3/4" x 3/4" inlet\outlet, standard opening and 3.5" wc pressure regulator setting

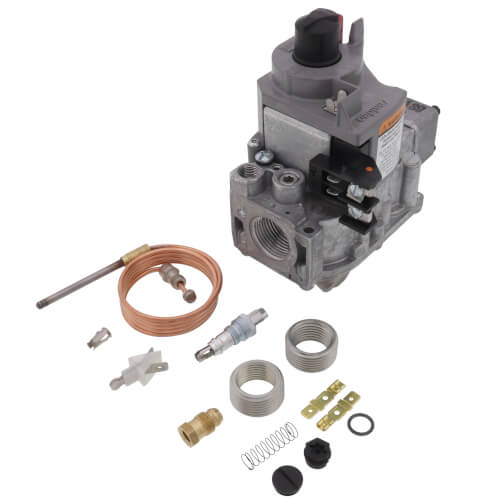

Includes: Two 3/4 x 1/2" reducer bushing; 393200 ECO adapter; Q340 (36") thermocouple with adapters; 393691 Natural to LP gas conversion kit.

Features
  • Combination gas control for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

  • Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.

  • Compact size.

  • Provide two automatic valves.

  • Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.

  • Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.

  • Meet codes requiring dual safety shutoff.

  • Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.

  • LITE-RITE (OFF-PILOT-ON) lighting sequence.

  • All adjustments, wiring connections and pilot outlet are accessible from top of control.

  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.

  • Compatible with ECO connector.

Product Specifications
    Type: Single Stage
    Ignition Type: Standing Pilot
    Type of Gas: Natural
    Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
    Body Pattern: Straight through with integral tapping; with flange
    Opening Characteristics (standard, step): Standard
    Capacity @ 1 in. p.d.: 200,000 BTU/hr; 30,000 BTU/hr minimum
    Pressure Ratings: ½ psi, or 3.5 kPa
    Pressure Regulator Setting: 3.5 in. wc (psi), or 0.87 kPa
    Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
    Pressure Tapping: 1/8 in. NPT with plug
    Electrical Connections: 1/4 in. quick-connect male terminals
    Electrical Ratings: 24 Vac
    Frequency: 60 Hz
    Anticipator Setting: 0.7 A
    Temperature Range: 0° to 175°F, or -18° to +79°C
    Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
    Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
    Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
    Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006.
    Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025006.

Read more
Specs
Fuel Type:
Natural Gas
Gas Type:
Natural Gas
Body Pattern:
Straight-Through with Flange
Voltage:
24v
Capacity (BTU):
200000
Inlet Size:
3/4"
Outlet Size:
3/4"
Ignition Type:
Standing Pilot
×
