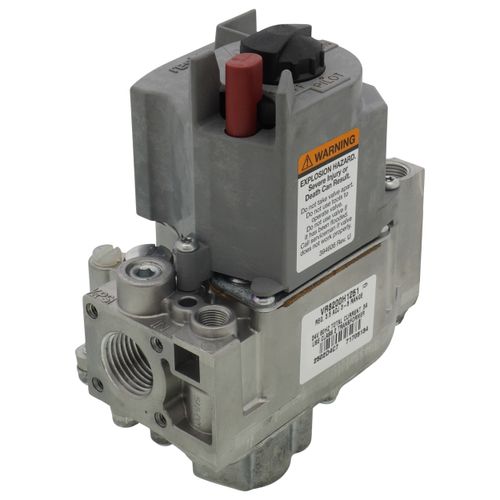

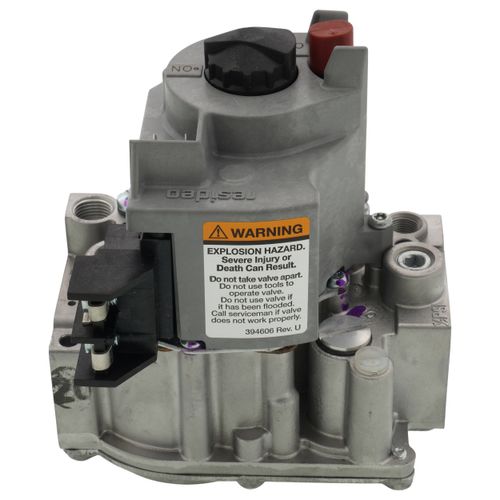

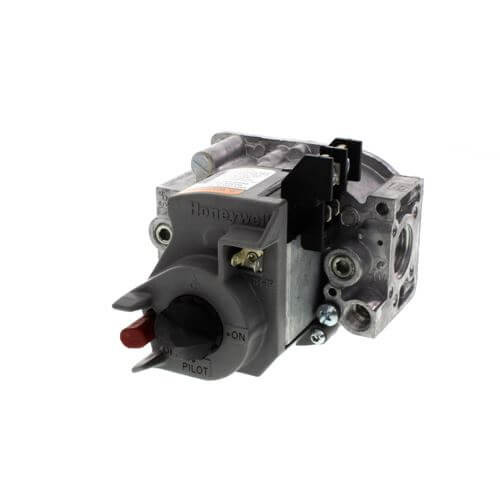

1/2", 24 Vac Standing Pilot Gas Valve - Slow Opening, VR8200H1251
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$180.07 each
In Stock
Get 37 Thu, Jun 25
Order by today, receive Thursday
MANUALS (3)
This item replaces: VR8200H2002
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2", 1/2" NPT
1/2"
24V
Standing Pilot
Straight-Through
Description
–
24 Vac Dual Standing Pilot Gas Valve with 1/2 in. x 1/2 in. inlet\outlet, slow opening and 3.5 in. wc pressure regulator setting

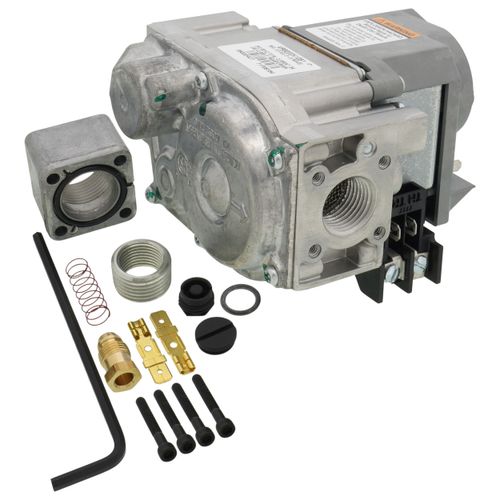

Includes: Natural to LP Conversion Kit, One 1/2" x 3/8" reducer bushing, One 3/4" straight flange
Features
Product Specifications
Includes: Natural to LP Conversion Kit, One 1/2" x 3/8" reducer bushing, One 3/4" straight flange
Features
- Combination gas controls for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh.
- Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
- Compact size.
- Provide two automatic valves.
- Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
- Meet codes requiring dual safety shutoff.
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
- All adjustments, wiring connections and pilot outlet are accessible from top of control.
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
- Compatible with ECO connector.
Product Specifications
- Type: Single Stage
Ignition Type: Standing Pilot
Type of Gas: Natural
Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
Body Pattern: Straight-through
Opening Characteristics (standard, step): Slow Opening
Capacity @ 1 in. p.d.: 130,000 BTU/hr; 20,000 BTU/hr minimum
Pressure Ratings: ½ psi, or 3.5 kPa
Pressure Regulator Setting: 3.5 in. wc (psi), or 0.87 kPa
Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
Pressure Tapping: 1/8 in. NPT with plug
Electrical Connections: Combination screw and 1/4 in. male quick connects
Electrical Ratings: 24 Vac
Frequency: 60 Hz
Anticipator Setting: 0.5 A
Temperature Range: 0° to 175°F, or -18° to +79°C
Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
Approvals, American Gas Association IAS: AGA Design Certified: File no. L2025006; CGA Design Certified: File no. L2025006; UL Component Recognized: File no. MH5323
Approvals, Canadian Gas Association: UL Component Recognized: MH5323
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Inlet Size: | 1/2" 1/2" NPT |
| Outlet Size: | 1/2" |
| Ignition Type: | Standing Pilot |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.81 out of 32 reviews
97% would recommend this product
5 star
94%
4 star
0%
3 star
3%
2 star
0%
1 star
3%
Customer Images
Most Liked Positive Review
Product Fit Great!
My original furnace gas valve gave out so I found this updated replacement. I installed it myself, I know it was done right and no need to wait and pay for a furnace repairman.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Unit Received was Missing the Ground Connector
The unit received was missing the ground wire connector and I had to fabricate a ground connection by reusing the old brass connector and very carefully threaded the rivet hole where it appears that a rivet is supposed to fasten the brass connector.
Fast forward an hour of my time loss - mostly looking for a suitably sized brass machine screw, I was able to complete the installation and valve tested out and was functioning as intended.
No complaints with price, ordering/order fulfillment/shipping at SupplyHouse.com and will consider ordering again from here in the future.
Showing 1-10 of 32 reviews
Perfect fit.
I used this gas valve to get an old school standing pilot furnace heating again. I ordered it on Friday evening and it was here Saturday. Fast shipping and packaged well. Thanks!
Old hvac tech
Ennis, TX
4 months ago
Verified Buyer
Was this review helpful to you?
Do Not Buy This! Not Slow Opening!
There is a reason I removed all Honeywell gas valves from my service stock. I purchased this for a specific job. They either leak, don't work at all or malfunction right out of the box. This valve is fast opening and dangerous to use on a atmospheric boiler with a large combustion chamber. You will be punished, burned if you use this valve in a application that you need slow opening. 37 years in business. 36,000 service calls.
Sir Joe
Southampton, NY
7 months ago
Was this review helpful to you?
I would buy from SupplyHouse again. They are great.
They are helpful on the phone. Very friendly. Purchase and return are both easy.
Lee
DC
7 months ago
Verified Buyer
Was this review helpful to you?
I would use this company again.
Fast delivery
New product, not used.
Valve came with instructions and extra parts for other applications
My pilot light would not stay lit, this solved the problem
Max
Brookfield IL
2 years ago
Verified Buyer
Was this review helpful to you?
I will comes again
Works great.Delivery fast. Thank you
Aleks
N. Chicago
5 years ago
Verified Buyer
Was this review helpful to you?
What a good deal!
Exactly as advertised. The right product, at the right price. Fast shipping, I was amazed!
JC
Mi.
6 years ago
Verified Buyer
Was this review helpful to you?
Unit Received was Missing the Ground Connector
The unit received was missing the ground wire connector and I had to fabricate a ground connection by reusing the old brass connector and very carefully threaded the rivet hole where it appears that a rivet is supposed to fasten the brass connector.
Fast forward an hour of my time loss - mostly looking for a suitably sized brass machine screw, I was able to complete the installation and valve tested out and was functioning as intended.
No complaints with price, ordering/order fulfillment/shipping at SupplyHouse.com and will consider ordering again from here in the future.
MasterJ
Chicago, IL
7 years ago
Verified Buyer
Was this review helpful to you?
1/2", 24 Vac Standing Pilot Gas Valve - Slow Opening
Installed and was perfectly factory adjusted. Working perfect.
Joseph
Bartlett,IL
7 years ago
Verified Buyer
Was this review helpful to you?
gas valve
Just wanted to thank Melanie for her help in the purchase of the gas valve part. She was extremely helpful and polite, so kudos to your customer support team at Supply House.
(And yes, I received the part the following day!!!)
Again thank you,
Ray
Ray
New York
7 years ago
Verified Buyer
Was this review helpful to you?
Part number was Superceded
This gas valve has replaces the version I had. The Honeywell sites are mostly not functional for me, but the Supply House description, rating, and FAQ's allowed me to arrive at the correct replacement. Works great!
Cold no more
UT
8 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
8 Questions8 Questions
Q: Is this product able to replace Utica-Dunkirk part VG-003.05?
Asked by Steve 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffWe can not cross reference OEM part #s, and the VG-003.05 is still a valid part.
Was this review helpful to you?
Q: Do you have the propane conversion for this valve?
Asked by Steveo 14 years ago
Add your answer
Verified Reply- PexSupply StaffPart 393691 is the NG to LP conversion kit for this valve. It comes with the valve but can be ordered separately if it is lost or needs to be replaced.
Was this review helpful to you?
- Another PexSupply Customer
In response to Steveo's question: The illustrations appears to be of a Honeywell VR8200H gas control. If so, yes, it can be used on Propane but requires installation of the Honeywell 393691 LP Conversion Kit. Detailed information and instructions are included in Honeywell document Number 68-0046-4 (.pdf). Pex is an excellent supplier. Hope this helps. Stu33
Was this review helpful to you?
Q: Can this part replace VR8200H1129
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffYork Controls part S1-026-31241-700 is the current part number for VR8200H1129.
Was this review helpful to you?
Q: does this part replace honeywell VR8200H 1012
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the manufacturer lists VR8200H1251 as a functional replacement for the obsolete VR8200H1012.
Was this review helpful to you?
Q: Can this product replace VR8200H1004
Asked by koenig66 15 years ago
Add your answer
Verified Reply- PexSupply StaffRheem part 60-22174-02 is the recommended replacement for VR8200H1004.
Was this review helpful to you?
- Master of none
Yes,My valve that I replaced was a vr8200h1004.The vr8200h1251 was the exact same valve.
Was this review helpful to you?
Q: Will this replace the VR8200H 2002?
Asked by steve 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, part VR8200H1251 is the replacement for VR8200H2002.
Was this review helpful to you?
Q: can this product replace vr8200h1228
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, according to the manufacturer, this is a direct replacement of VR8200H1228.
Was this review helpful to you?
Q: CAN THIS REPLACE VR8200J
Asked by VEE 16 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, you can use VR8200H1251 to replace VR8200J.
Was this review helpful to you?
