Product Highlights
Description

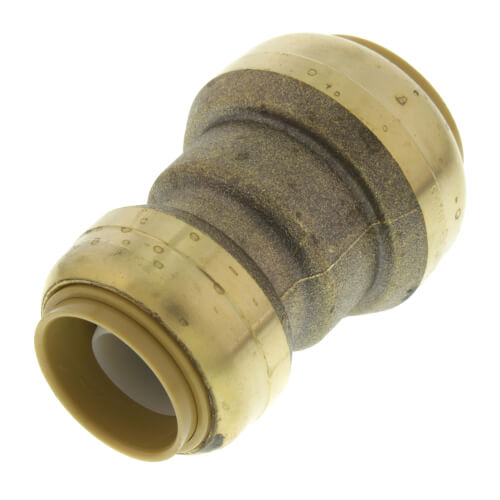

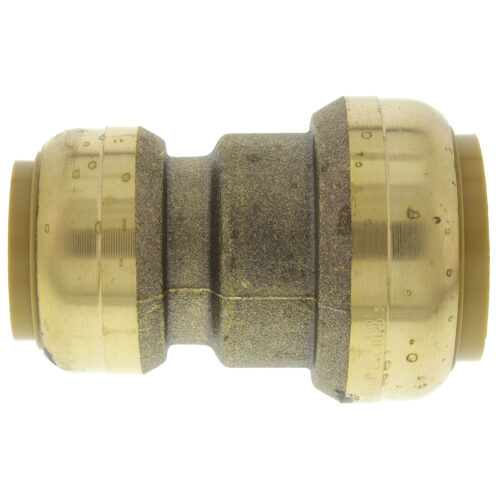

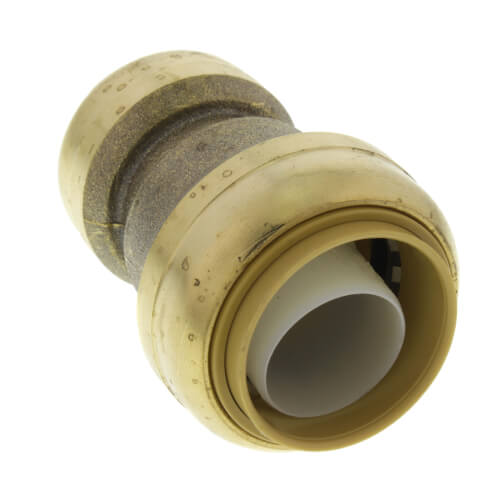

Designed to simplify pipe installation. Instant push-fit connection for increased ease-of-use- no soldering required. Fittings certified to 200 PSI and 200 degrees F (93 degrees C). Fits OD controlled copper, CPVC, or PEX pipe. Design certified and agency listed. Compact, corrosion resistant, robust DZR brass body. Design certified to ANSI/NSF-61 product standard for use in potable water systems. No loose components, integrated design. Approved to be used underground and behind walls without access panels. Designed for hydronic heating as well as potable water distribution. Designed certified to IGC 188. Listed by IAPMO and are certified for potable and hydronic heating water distribution. Certified for underground applications and as a manufactured joint without access panels and they meet UPC, IPC, and cUPC requirements.
Specs
| Size: | 1" x 3/4" |
|---|---|
| Material: | Brass |
| PEX Size: | 1" 3/4" |
| Insertion Depth: | 1-5/16" 1-1/8" |
| Application: | Heating |
| Max Pressure (PSI): | 200 |
| Warranty: | 25 Year |
| Standards Met: | NSF |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | OD Controlled Copper PEX CPVC |
| Max Temp (F): | 200°F |
Questions?
Compare Similar Products
3/4"
You May Also Need
Product Reviews
Used for spigot connections
Easy fix for going from 3/4 to 1/2
Best price
Product worked great!!
I would buy this product again
Hard to find SharkBite, worked perfect
Worked perfect, will buy again
Worked great for my application
Will purchase again
Great experience
Product Q&A
4 QuestionsQ: Looking to connect new 3/4" pex to old 1/2" copper is this the correct coupling to use? Does it not matter if it is copper or pex that is being connected for these couplings to work?
Asked by Jeff 11 years ago
Add your answer
Yes, it doesn't matter if it's copper or PEX. Tubing is measured on the outside diameter (OD). So half inch cooper is the same OD as half inch PEX, and that's how these fittings seal--on the OD of the tubing. Just remember to wiggle the white plastic ID support (meant for the PEX tubing) out of the fitting before inserting the cooper tubing. Hal
Yes that fitting is what you are looking for Sent from my Verizon Wireless 4G LTE smartphone
Q: I'm wondering if this could convert my 3/4" copper water main to 1" pex. My reason for doing so is to maintain a wider inside diameter to my water heater. From what iI can tell is 3/4" copper is about the same I.D. as 1" Aquapex. Maybe I'm over thinking this, but 3/4" pex seems a bit restrictive to service my entire home.
Asked by Neil 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis fitting will allow you to connect 1" PEX to 3/4" copper, but would not be able to adapt directly to your water meter. 3/4" copper has a .75" ID, while 1" PEX has a .862" ID and 3/4" PEX has a .671" ID.
The sharkbite fitting can be used for this conversion. They fit both copper and pex. IE 3/4" sharkbites fit both 3/4 pex and 3/4 copper. I have 3/4 pex connected to my main water supply to form a manifold, and 1/2 pex running from the manifold to all endpoints. The pressure/volume seems just fine. You might lose pressure if you convert to 1" even though you gain volume. I'm far from being a plumber but just my thoughts.
You could use this coupler to convert from copper to pex with out a problem. As far as supply goes. As long as your pressure is good from the street you would be fine replacing your main trunks inside your home with 1” or ¾” you would probably not notice a difference between the two except in price. Most homes are run in ½ pex with a 3/4” trunk. 1” would be overkill in my opinion. If your pressure is not good you can add booster pumps and reservoirs. PEX is the future of plumbing especially with the copper prices rising and theft. Hope this helps..
Q: Is there a Shark Bite fitting that will fit over a 3/4 Galvinized pipe and convert to 3/4 copper?
Asked by Tom 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou would need to use a threaded SharkBite fitting to connect to threads on the galvanized pipe. The copper could connect to the SharkBite portion of the fitting.
In short, no. Galvanized pipe isn't generally uniform enough for Shark Bites and you need to use a dielectric union to avoid galvanic corrosion. Sent from my iPad
Q: how do i check to see what size tubing this will fit
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis part will fit 1" copper, PEX, or CPVC on one side and 3/4" copper, PEX, or CPVC on the other side.
