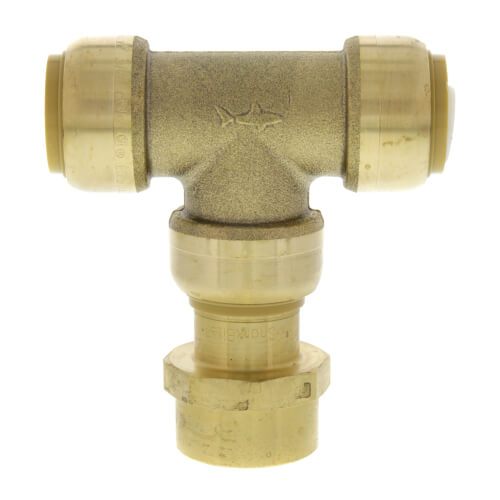

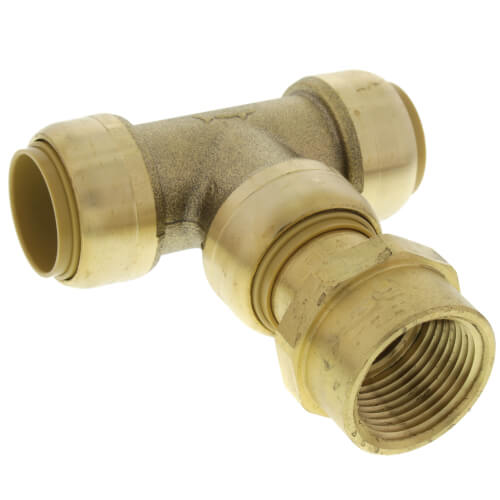

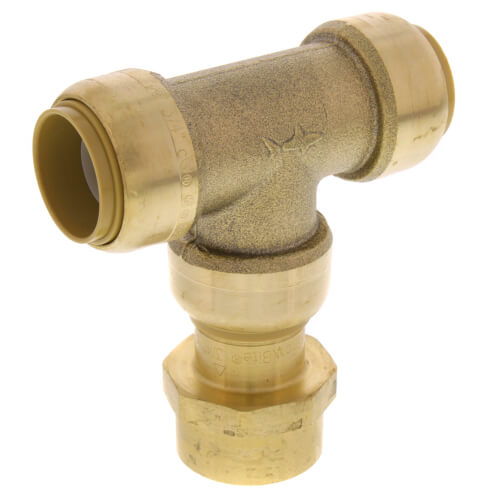

3/4" Sharkbite x 3/4" Sharkbite x 3/4" FNPT Tee (Lead Free)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Product Highlights
Description
Designed to simplify pipe installation. Instant push-fit connection for increased ease-of-use- no soldering required. Fittings certified to 200 PSI and 200 degrees F (93 degrees C). Fits OD controlled copper, CPVC, or PEX pipe. Design certified and agency listed. Compact, corrosion resistant, robust DZR brass body. Design certified to ANSI/NSF-61 product standard for use in potable water systems. No loose components, integrated design. Approved to be used underground and behind walls without access panels. Designed for hydronic heating as well as potable water distribution. Designed certified to IGC 188. Listed by IAPMO and are certified for potable and hydronic heating water distribution. Certified for underground applications and as a manufactured joint without access panels and they meet UPC, IPC, and cUPC requirements.
Specs
| PEX Size: | 3/4" |
|---|---|
| Size: | 3/4" x 3/4" |
| Lead Free: | Yes |
| Warranty: | 25 Year |
| Insertion Depth: | 1-1/8" |
Contact
Happy Independence Day!
Compare Similar Products
You May Also Need
Product Reviews
Great Sharkbite Fitting
Fitting
Specialty fitting
Hard to find item that's easy to use
I would buy these again.
Great quality
Perfect Fit
Product Q&A
6 QuestionsQ: the threaded part - will this allow me to connect to PVC pipes? I have 1" PEX pipe running from well. need to adapt it to existing PVC under house
Asked by Stu 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Stu, thanks for writing in. The threaded end of this tee is 1" female NPT and will accept a 1" male NPT thread, although you should not thread PVC into brass directly.
Q: Is the FNPT adapter permanent, or can it be moved to one of the other positions? In other words, can I make this into a 3/4" FNPT x 3/4" Sharkbite x 3/4" Sharkbit Tee?
Asked by PenultimateHero 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe FNPT piece is removable, but there is not a lot of space to get the disconnect clip in. The tongs may work better but it could still be tough to get it released.
Q: Can you connect a hot water heater expansion tank in the horizontal position to the threaded part of the tee ?
Asked by Jim 13 years ago
Add your answer
If the expansion tank has the same size NPT thread, that would make for an extremely easy connection.
Q: The image of this product does not show a threaded connection. Is the T threaded? Also, Is this suitable for PEX or copper only? Is this a lead free item for potable water? Thanks, Adam
Asked by Adam 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis "Female Centre" tee (part U462) has 3/4" SharkBite connections on the two ends with 3/4" female threads in the middle port, which is slightly off-center.
Adam, The "T" is not threaded, it is a shark bite fitting where the pipe (pex or copper) is simply pushed into the fitting. It is safe for potable water.
I have used this and it's not threaded. Will accept led tubing or copper. I used it for potable water. Sent from my iPhone
The tee is threaded on the branch and you can thread anything into the female threads. I used one (with a bushing to 1/4") to install an icemaker supply line and it worked great.
It is not threaded. It is used for copper pipe only. It is leas free. Sent from my Kindle Fire
hi adam You will receive a tee like the one shown along with a threaded insert. They also sell the threaded inserts separately which i found them very useful. They can be used for pex or copper. These fittings come with little plastic inserts also which you should remove if using them with copper. As far as my knowlege goes, these do contain lead, yet can still be used for potable water. I don't think the lead has any way of leaching into the water. eric
Q: So is this threaded on just the one end of the T or all three ends?
Asked by Ken 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis is threaded only on the tee (bullnose).
Q: What is FNPT stand for?
Asked by Rhals1 16 years ago
Add your answer
Verified Reply- PexSupply StaffFNPT stands for female nominal pipe thread. This is threaded on the inside of the fitting.
F(emale) N(ational) P(ipe) T(hread)
