MANUALS (2)
This item replaces: 10188019, 88019, SB0141
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1-1/2"
Brass
PEX, CPVC, Copper
Push Fit
Push-Fit x Push-Fit Connection
Description
–
Note: A
SBTL41 Insert is required when making a connection to PEX. A PEX to PEX connection requires (2) SBTL41 Inserts, one for each end. This insert is sold separately.
Underground burial of SharkBite brass fittings requires that the fitting be wrapped using silicone wrap (25406A).

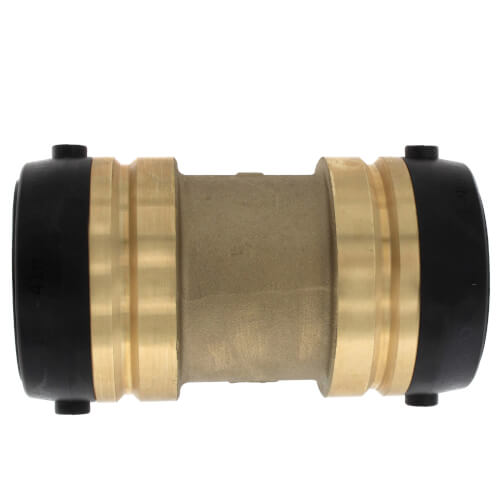

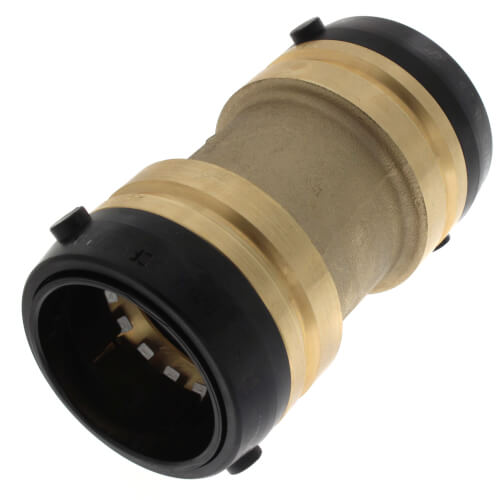

The SharkBite Large Diameter straight coupling is the easiest plumbing fitting to join any combination of Copper, CPVC, PEX, PE-RT, and HDPE tubing together. With no soldering, clamps, unions or glue required, it’s as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200°F and 200 psi. Large Diameter PEX Stiffeners are required when connecting to Large Diameter PEX tubing.
Features:
Underground burial of SharkBite brass fittings requires that the fitting be wrapped using silicone wrap (25406A).
The SharkBite Large Diameter straight coupling is the easiest plumbing fitting to join any combination of Copper, CPVC, PEX, PE-RT, and HDPE tubing together. With no soldering, clamps, unions or glue required, it’s as simple as inserting the pipe into the fitting deep enough to be sealed by our specially-formulated O-ring. Once inserted, the stainless steel teeth bite down and grip the pipe. This push-to-connect fitting is designed for potable water and radiant heating (including underground or behind-the-wall) applications with no access panels required. It is rated up to 200°F and 200 psi. Large Diameter PEX Stiffeners are required when connecting to Large Diameter PEX tubing.
Features:
- Quick Connect & Disconnect
- SAFE-Recessed Release Collar
- Easy Installation
- Provides Piping Support Against Lateral Pipe Forces
- Lead Free DZR Brass Material
- Environmentally Friendly
Specs
–
| Size: | 1-1/2" |
|---|---|
| Material: | Brass |
| Application: | Heating Plumbing |
| Fitting System Compatibility: | Push Fit |
| Tubing Compatibility: | PEX CPVC Copper |
| Connection Type: | Push-Fit x Push-Fit |
| Insertion Depth: | 2-1/4" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Great Product, Good Price
We had to complete a repair to a hot water line in the attic space above a daycare classroom. Using these fittings made it possible to complete the repair without having to use a torch to solder the large connections which would send odors all over the entire daycare. Awesome product!!!
Facilities Manager
North Little Rock, AR
6 years ago
Verified Buyer
