Mini 6-2, Point-of-Use, Tankless Electric Water Heater
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (5)
Product Highlights
Description
Stiebel Eltron has been a world leader in advanced water heating technology for almost 90 years. Our engineering excellence and high-quality manufacturing results in products fulfilling the highest expectations of performance & reliability. Mini Series tankless models are ideal for residential and commercial point-of-use hand-washing sink applications including: bathrooms, cabins, offices, stores, warehouses, and restaurants. Minis are 99% efficient, heating water instantaneously and endlessly and, unlike tank water heaters, have no stand-by energy losses. No venting is necessary. The sleek, super-compact design allows installation with the unit visible. The temperature of the water delivered by a Mini depends on the incoming cold water temperature, the water flow through the unit, and the size of the Mini model that is installed. Mini models excel at supplying water at a constant temperature but must be carefully matched to the flow rate of the sink being plumbed to operate properly.
- Professional installation recommended
- Can be mounted with fittings pointed up or down

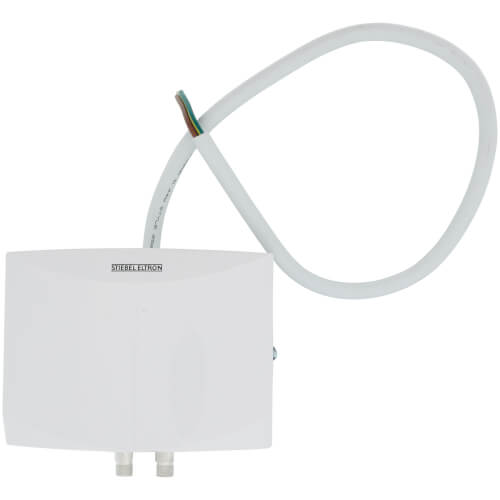

- Pre-wired pigtail included
- Refer to the Mini Sizing Guide to determine which size you need; call Stiebel Eltron at 800.582.8423 with any sizing questions
- Mini 6-2 tankless electric water heaters are designed to provide warm water around 100 degrees F / 38 degrees C for hand washing at 1 high-flow (1.0 gpm) sink
- Mini 6-2 models require 240 or 208 volt electric service, 1 dedicated 30 amp breaker, 10 gauge copper wiring, and have 3/8" plumbing connections
- Mini Series tankless water heaters were meticulously engineered in Germany and are manufactured in the US with great care and with the best available materials to provide years of trouble-free service
- The Nichrome (nickel-chromium) Direct Coil heating element in all Mini Series models is controlled by a flow switch to prevent dry-firing and failure, and is additionally equipped with a safety high-limit with manual reset
Specs
| Fuel Type: | Electric |
|---|---|
| Application: | 1 Sink Point of Use |
| Wire Size: | 10 |
| Breaker: | 25 |
| Amps (240V): | 23.8 |
| Amps (208V): | 20.6 |
| KW (240V): | 5.7 |
| KW (208V): | 4.3 |
| Min Flow (GPM): | .77 |
| Max Flow (GPM): | 2 |
| Voltage: | 208V 240v |
| Height (Inches): | 6.5" |
| Width (Inches): | 7-1/2" |
| Depth (Inches): | 3-1/4" |
| Warranty: | 10 Year Limited/3 Year Parts |
| Water Connection: | 3/8" |
Contact
Happy Independence Day!
You May Also Need
Product Reviews
Be the first to write a review.
Product Q&A
2 QuestionsQ: I just need to know if this is plug in ready or is it hard wired requiring an electrician?
Asked by Jim 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe unit needs to be hardwired.
Q: I have pex 1/2" tubing in my shope floor and want info on heater , pump and thermostat. This is what i was looking @ sku 59896155 and 51960 and amtrol 102-1-#30 and sku mini 6 electric tankless. Will this work my space is 20 x 30 and 375 ft of tubing. Thanks Mike
Asked by Mike 13 years ago
Add your answer
Verified Reply- PexSupply StaffStiebel Eltron does not recommend the use of their electric tankless water heaters for space heating applications. Using one for such an application would void the manufacturer warranty.
