Description

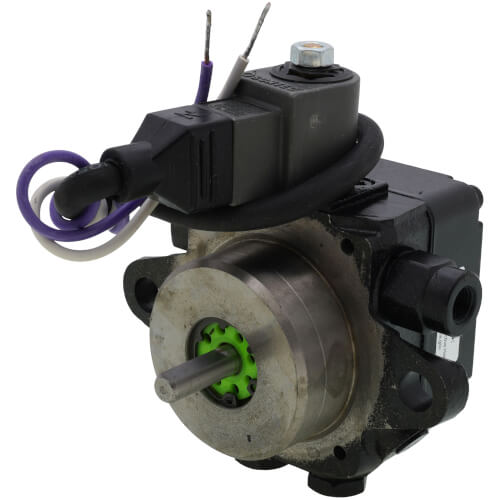

The A2VA-3006-B model has a unique circuit that contains two separate cut-on and cutoff mechanisms :

  • The cone valve – diaphragm valve circuit gives a high speed cut-on regardless of type of control used.
  • The solenoid bypassing circuit can be used to achieve cut-on and cut-off at full operation speed. It provides cut-off at full operating speed regardless of which type of control is used.
  • The pump circuit contains a positive displacement involute gear set and four controlling valves. This model is specially engineered for B20 use (Viton O-rings and lip seal, special materials for piston and diaphragm valve)


Applications:
  • Fuel oil #2 and lighter, B6-B20 (blends from 6% up to 20% biodiesel, per ASTM D396) or fuel oil #4.
  • One pipe system (two-pipe system possible).
Hide Description
Manuals (1)
Specs
Flow Rate (GPH):

4.0 GPH

Type:

1 Stage Oil Pump w/ Solenoid

Rotation:

R.H.

Nozzle Location:

R.H.

Application:

Heating

Max Pressure (PSI):

200

RPM:

3450

×
