Note: Full flange-to-flange three-year warranty on all 00 Series circulators.
Performance Data
Flow Range: 0-50 GPM
Head Range: 0-14.5 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 1-1/2"

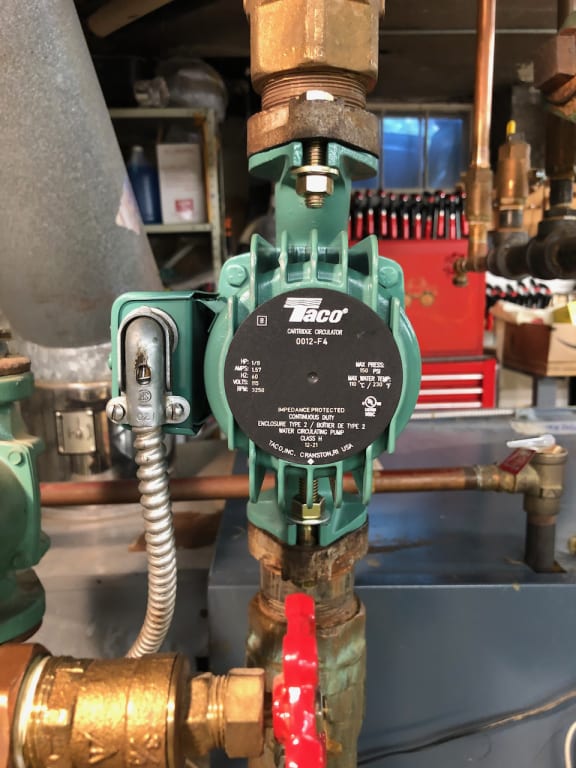

The High Velocity Series Taco 0012 Cartridge Circulator is specifically designed for high-flow/medium-head applications in large residential/light commercial systems. Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs. Available in cast iron or bronze construction. Bronze can be used on open-loop systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Universal flange-to-flange dimensions and orientation allow the 0012 to easily replace other models. 0012-F4 is a direct replacement for the HV Series.
Features
Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow-Protects motor windings against condensate buildup
High Velocity Performance Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free
Universal Flange-to-Flange Dimensions
Cast Iron or Bronze Construction
Packed with 1-1/2" Flanges (194-1542F)
Typical Applications
Large BTUH Boilers
Primary/Secondary Loops
Commercial Water Heaters Light Commercial Heating and Cooling Systems
Replacement Parts List:
Casing O-Ring: 0012-006RP
Flange Gasket Set: 0012-020RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 0012-011RP
Material: | Cast Iron |
---|---|
Amperage: | 1.33 |
Application: | Heating |
Voltage: | 115V |
Max Pressure (PSI): | 125 |
Type: | Pump |
Horse Power: | 1/8 |
Connection Size: | 1-1/2" |
Flow Range (GPM): | 0-50 |
Max Flow (GPM): | 50 |
Max Head (Ft): | 14.5 |
Head Range (ft.): | 0-14.5 |
Hertz: | 60 |
Phase: | 1 |
RPM: | 3250 |
Temperature Range (F): | 40°F to 230°F |
Connection Type: | Flanged x Flanged |
Warranty: | 3 Year |
