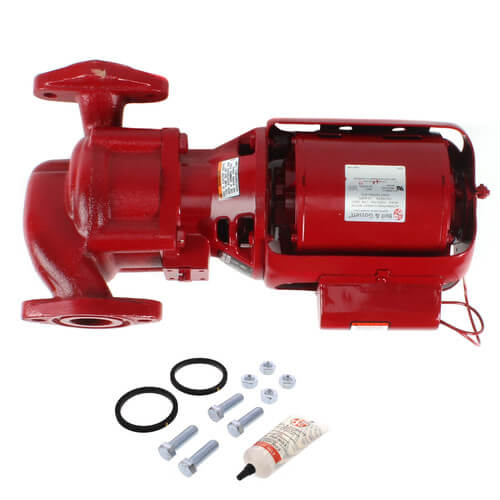

1/6 HP, HV NFI Circulator Pump
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,297.10 each
In Stock
Get 5 Thu, Jul 2
Order by today, receive Thursday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/6 HP
Flanged x Flanged Connection
40 MAX GPM
125 MAX PSI
Cast Iron
Description
–
Overview
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data:
The Series 100 is a leader in applications such as hydronic heating and domestic hot water circulation, with over 10 million units installed. Series 100's three-piece, oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced. The Series 100 oil lubricated motor is specifically designed for the Series 100, and its resilient mounting provides quiet, dependable service with minimum annual lubrication. UL and CSA listings are standard. The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to overcome system related noise caused by valves, fittings, or piping.
Operating Data:
- Features 1/6 HP and 115V
- Maximum working pressure: 125 psi (8.6 bar)
- Maximum operating temperature
- Standard Seal: 225°F (107°C) continuous
- Special Seals: 250°F (121°C) continuous
- Applications: Reliable Circulators for Residential Heating Systems.
Specs
–
| Material: | Cast Iron |
|---|---|
| Amperage: | 1.9 |
| Application: | Heating |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/6 |
| Connection Size: | 1" 1-1/4" 1-1/2" |
| Flow Range (GPM): | 0-40 |
| Max Flow (GPM): | 40 |
| Max Head (Ft): | 12 |
| Head Range (ft.): | 0-12 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 1725 |
| Max Temp (F): | 225°F |
| Connection Type: | Flanged x Flanged |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Voltage
Max Pressure (PSI)
Type
Max Flow (GPM)
You May Also Need
13 Replacement Parts
Body (HV CI)
SKU: 189124
Bell & Gossett
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.58 out of 12 reviews
91% would recommend this product
5 star
83%
4 star
8%
3 star
0%
2 star
0%
1 star
8%
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would purchase this again. Supply House did a great job.
I replaced a Bell and Gossett Pump that was 53 years old. It was making noise, and probably only needed a new coupler and rubber motor supports, as indicated on the Bell and Gossett web site.
However, given the age, I elected to buy an entire new pump.
I also purchased a coupler and rubber motor mounting rings to rebuild my old pump to use as a spare.
The new unit was made in China. The motor was smaller, and had what looked like a run capacitor. It might be more efficient, but that's a moot point in my case, as the waste heat from the motor goes into the same area that is presently heated by resistive heating elements.
It was an easy replacement, as the mounting flanges matched the original ones from 50 years ago.
However, I don't know if the new unit will last 53 years without failure, as the previous unit did.
VS
Most Liked Negative Review
Damaged pump / like I was sold a returned item .
Part came damaged , it looked like someone else returned it . Re taped box This was no heat call and I really needed the part. I had to wait another week for them to receive the old part back before they would send out the new part. The new part came in and was fine. I just wish I wouldn't have to wait so long for the turnaround.
Showing 1-10 of 12 reviews
Product received is exactly as advertised
Had never purchased a pump from this vendor and to compound things, the pump I was replacing was in a 60 year old system. Pump came in well packed and fit perfectly into the suction & discharge flanges. It was a good experience.
Boiler Bill
Independence, MO
7 months ago
Verified Buyer
Was this review helpful to you?
Damaged pump / like I was sold a returned item .
Part came damaged , it looked like someone else returned it . Re taped box This was no heat call and I really needed the part. I had to wait another week for them to receive the old part back before they would send out the new part. The new part came in and was fine. I just wish I wouldn't have to wait so long for the turnaround.
Jack Frost
Indiana
2 years ago
Verified Buyer
Was this review helpful to you?
I recommend and would buy this product again.
Great replacement. Installed easily
PK
Newark, Ohio
5 years ago
Verified Buyer
Was this review helpful to you?
Good reliable product
Well built and reliable.
Could improve with an anticorrosion material at the propeller housing.
Mike
Palm Springs CA
5 years ago
Verified Buyer
Was this review helpful to you?
I have been buying this product repeatedly
We have these pumps installed in hot water systems. When I need one, the price and delivery are aces.
Fritter
San Jacinto, CA
6 years ago
Verified Buyer
Was this review helpful to you?
yes
This was an exact fit and had no issues when installing.
Don
Warner Robins, GA
6 years ago
Verified Buyer
Was this review helpful to you?
would buy again
great company and pumps worked great
myshea
macon ga
7 years ago
Verified Buyer
Was this review helpful to you?
I would purchase this again. Supply House did a great job.
I replaced a Bell and Gossett Pump that was 53 years old. It was making noise, and probably only needed a new coupler and rubber motor supports, as indicated on the Bell and Gossett web site.
However, given the age, I elected to buy an entire new pump.
I also purchased a coupler and rubber motor mounting rings to rebuild my old pump to use as a spare.
The new unit was made in China. The motor was smaller, and had what looked like a run capacitor. It might be more efficient, but that's a moot point in my case, as the waste heat from the motor goes into the same area that is presently heated by resistive heating elements.
It was an easy replacement, as the mounting flanges matched the original ones from 50 years ago.
However, I don't know if the new unit will last 53 years without failure, as the previous unit did.
Wayde
Washington
7 years ago
Verified Buyer
Was this review helpful to you?
Great products and great service
Fast delivery and right product.
V
Mountain home , AR
9 years ago
Verified Buyer
Was this review helpful to you?
Right product at a very cold time
Our furnace went out in sub freezing temps, local repair wanted 1K to furnish and replace, ordered this, came in a day or so, installed that night and we were warm again. All pieces needed to get up and running right away were supplied. We do a lot of DIY so that helped a lot with the little plumbing needed to complete the job
midwestR
Il
9 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: is this an 8.5 inch pump?
Asked by Scott 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, the flange to flange distance is 8.5" for this pump.
Was this review helpful to you?
Q: What seal kit fits this pump?
Asked by tom 12 years ago
Add your answer
Verified Reply- AnonymousThe seal kit listed for this pump is part 118681LF : http://www.pexsupply.com/Bell-Gossett-118681LF-Seal-Kit-No-7-Lead-Free-Buna
Was this review helpful to you?
Q: How long is the warranty on this unit?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis product is covered by a 1-year warranty.
