Product Highlights
Description

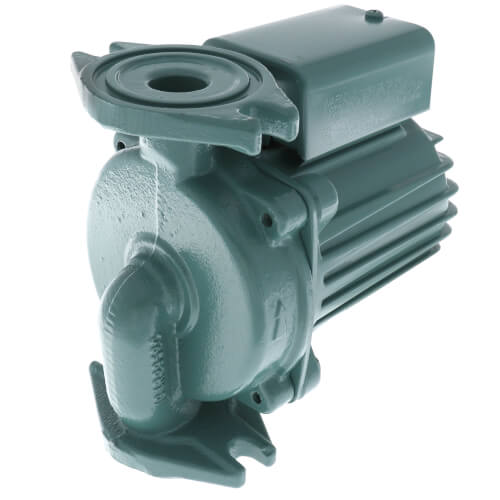

The High Velocity series Taco 009-F5 Circulator Pump is designed for use in high head and low flow applications in hydronic heating and radiant heating. Features a field-serviceable cartridge which allows to replace the cartrigde without replacing the entire circulator. The Taco 009-F5 maintenance free design provides unmatched reliability.
Features:
- Standard High Capacity Output
- Unique Replaceable Cartridge Design ? Field Serviceable
- Direct Drive-Low Power Consumption
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability - Maintenance Free
- Universal Flange-to-Flange Dimensions
- Cast Iron Construction
Applications:
- Hydronic Heating/Cooling
- Radiant Heating
- Applications with High Pressure Drop (High Head)
- Wood Boilers / Furnaces
- Hydro-Air Fan Coils
- And others
Specs
| Application: | Zoning |
|---|---|
| Material: | Cast Iron |
| Amperage: | 1.4 |
| Voltage: | 115V |
| Max Pressure (PSI): | 125 |
| Type: | Pump |
| Horse Power: | 1/8 |
| Connection Size: | 3/4" 1" 1-1/2" 1-1/4" |
| Max Flow (GPM): | 10 |
| Flow Range (GPM): | 0-10 |
| Max Head (Ft): | 35 |
| Head Range (ft.): | 0-35 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3250 |
| Temperature Range (F): | 40°F to 230°F |
| Connection Type: | Flanged x Flanged |
| Warranty: | 3 Year |
Questions?
Compare Similar Products
You May Also Need
5 Replacement Parts
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
Supply House is great!
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would never buy anything else from this place
I would never buy anything else from this place
I'd buy this product again just because I need this size.
I'd buy this product again
Pump purchase
Pump works great,thank you for expediting
One stop shopping for all my needs
Supply House is great to work with
I would buy this product again
YES
Best service ever!
Product Q&A
14 QuestionsQ: Can I replace a 009-BF2 pump with the 009-F5?
Asked by bill 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffYou should replace it with 009-SF5. The 009-F5 is made of cast iron and would rust in a plumbing application. 009-SF5 is made of stainless steel to prevent it from rusting.
Q: I want to circulate and heat swimming pool water using Taco 009 SF5. Is cast iron ok with pool water with chlorine? What is the best pump material? Stainless has stress cracking with Chloride? thanks
Asked by tom 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffno its not, you should contact Taco to see what they suggest. Chlorine is not good for most metals.
Q: Which flange do I need to connect to this pump?
Asked by Don 12 years ago
Add your answer
most likely the 110-251F but it depends on your pipe size. Make sure it fits 00 pumps
Hey Don, I use a 3/4 flange for my 009-F5. The website shows that 1 1/4 and 1 1/2 are options as well. I use this pump to circulate a water/propylene glycol solution from my basement to the roof-solar panels for heating my domestic hot water. The overall height is between 30 and 35 feet. The pump does well and I have had no problems or complaints. From April unitl late October, it runs constantly when the sun is up. It is a good little pump and very quiet. Hope this helps. Doug, Prince George, VA
Q: My 009-f5 has gone thru 5 winters and the cartridge was replaced 2 years ago. Sometime last winter I started hearing a ratling sound from the pump. However the circulation is still good. What is wrong? Its on an outdoor furnace.
Asked by Dan 13 years ago
Add your answer
I've occasionally found that when I take my pump apart there is a small bit of something stuck in the impeller which I can push out with a toothpick or wire. When this happens, the pump starts working asymetrically and it causes a rattling sound. As long as it is not too clogged, it is still moving the water so the pump doesn't burn up. -Steve
You might have some foreign material being caught up in the impeller like solder.
Q: Do the gaskets come with pump
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, flange gaskets are included.
Q: I the model 009-SF5 the same as 009-F5?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThey are the same, other than the fact that the 009-SF5 is stainless steel (necessary to prevent rusting in open systems).
Q: what is head range, i see 0 to 34 feet, from the outdoor furance to house is about 65 feet and outside furance is about 10 feet up a small hill. is this the right pump for this system, plus the water boiler in the house is in the basement, there is about 15 feet in height differance of the two boilers
Asked by taz 15 years ago
Add your answer
Verified Reply- PexSupply StaffHead range refers to the amount of friction that the pump can overcome in order to keep the water moving through the system. It does not actually have anything to do with the distance of the piping. For more information on head loss and sizing circulator pumps, please refer to the following guide from the manufacturer: http://s3.pexsupply.com/manuals/1289252668477/41390_PROD_FILE.pdf
Q: i wish to use this unit in a solar water heater application, is there a temperature on off switch available for this pump?
Asked by Joe 15 years ago
Add your answer
Verified Reply- PexSupply StaffThere is not. We do not carry any pumps with such an accessory.
Q: How do i specify that I need 1 inch connection?
Asked by Arun 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou will need to order 1" flanges. They are not included with the pump.
Q: why is the impeller not holding up and can i buy just this impeller
Asked by lefty from pa. 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe impeller could be having problems for any number of reasons, including the ball bearing getting locked up and a rock or piece of solder jamming it. You cannot buy the impeller by itself, but you can get replacement cartridge part 009-021RP.
