Product Highlights
Description

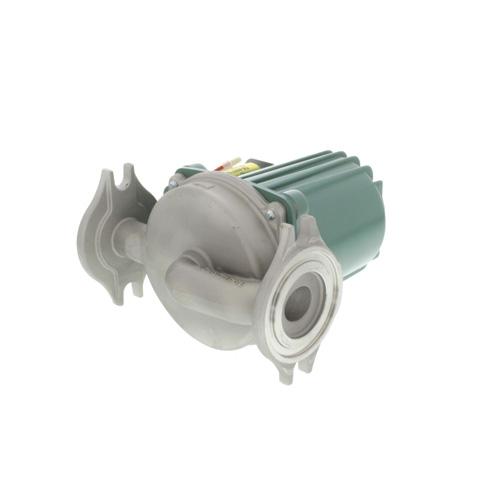

The High Velocity Series Taco 009 Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head/lower-flow water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head /lower-flow heat recovery, open-loop solar heating and light commercial/domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
Performance Data
Flow Range: 0-10 GPM
Head Range: 0-35 Feet
Minimum Fluid Temperature: 40 degrees F (4 degrees C)
Maximum Fluid Temperature: 230 degrees F (110 degrees C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged
Features
Standard High Capacity Output-Compact Design
Quiet, Efficient Operation
Unique Replaceable Cartridge Design-Field Serviceable
Direct Drive-Low Power Consumption
Self-Lubricating
No Mechanical Seal
Unmatched Reliability --Maintenance Free Universal
Flange-to-Flange Dimensions
Cast Iron or Stainless Construction
Typical Applications
Hydronic Heating
Radiant In-Floor/Panel Heating
Closed-Loop Solar Heating Systems
Replacement Parts List:
Casing O-Ring: 009-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 009-018RP
Cartridge Assembly Complete: 009-022RP
Specs
| Material: | Stainless Steel |
|---|---|
| Application: | Heating |
| Amperage: | 1.4 |
| Horse Power: | 1/8 |
| RPM: | 3250 |
| Voltage: | 115V |
| Hertz: | 60 |
| Phase: | 1 |
| Max Pressure (PSI): | 125 |
| Connection Type: | Flanged x Flanged |
| Connection Size: | 1-1/2" 1-1/4" 3/4" 1" |
| Type: | Pump |
| Head Range (ft.): | 0-35 |
| Max Head (Ft): | 35 |
| Max Flow (GPM): | 10 |
| Flow Range (GPM): | 0-10 |
| Temperature Range (F): | 40°F to 230°F |
| Warranty: | 3 Year |
Questions?
You May Also Need
5 Replacement Parts
Need help finding a replacement part?
Product Reviews
worth every penny
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
A good circulator with lots of head pressure
Great pump
I HAVE PURHASE SEVERAL OF THESE PUMPS.
Worth the extra $$
Taco pumps 009 stainless steel
Excellent Buy!!!!
Product Q&A
4 QuestionsQ: How do you adjust the flow rate on this Taco pump? Is there a adjustment screw?
Asked by Channing 11 years ago
Add your answer
I don't think it is adjustable.
There is no adjustment for flow unless you get the variable flow version of the pump. There are several diiferent options for delta T (temperature) or delta P (pressure) Otherwise you can use a flow valve but be carefull to keep within the flow parameters of the pump or you could run the risk of overloading the pump
Q: what is the part # for the replacement cartridge for this circulator (009 sf5)
Asked by diner 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe replacement cartridge assembly kit is 009-022RP ; http://www.pexsupply.com/Taco-009-022RP-Taco-Pump-Replacement-Cartridge-TAC009-022RP-for-009-Bronze-4124000-p
Q: MY 009 PUMP DOESN'T GET WATER TO MY SOLAR COLLECTOR AT 21 FOOT HEAD. SHOULD THE PUMP BE MOUNTED IN THE VERTICAL POSITION? I NOW HAVE IT WITH THE INLET/OUTLET IN A HORIZONTAL POSITION AND THE MOTOR OFF TO THE SIDE IN A HORIZONTAL POSITION. DOES THAT MAKE A DIFFERENCE?.
Asked by TOM 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe position of the pump is likely not the problem. Chances are you're either trying to push more than 5 GPM through the pump, the pump is defective, or you're calculating head pressure incorrectly. See the document linked below for information on circulator sizing. http://s3.pexsupply.com/manuals/1289252668477/41390_PROD_FILE.pdf
No horizontal mounting should NOT make the difference. There is another issue. Need more info. Todd Hoitsma Liquid Solar Sent from my iphone
With a drain back system, mine is in the vertical position to let any air get out of the pump, with flooded suction to the pump, and it is doing about 30 feet vertically to my panels. In my experience with these small pumps, its real important to get any air out and to make sure you have flooded suction to the pump. I E if you open a bleed valve just above the pump, water flows out with the pump off. Also, I get any air out by opening valve and momentarily turn on pump. If you have a closed system there should not be any issues unless you have air in the lines that needs to be removed. I also put a gate swing check valve above the pump with a 3/16 hole drilled in the brass flapper so the when the system drains back it does it slowly and does not pull new air into the pump every time it shuts down. Please do not consider this Engineering Advice. Hope it helps. Also, you might check to make sure that there is no teflon tape, or other debris on the impellor by carefully looking into the end of the pump when you have it out of the installation and unplugged and slowly turning it with whatever you can, as if your system is drainback, with the high head you are trying to push against, almost any blockage of the tiney impeller with trash its performance. William Turner
Q: wiring diagram
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the following Instruction Sheet: http://www.pexsupply.com/Taco-009-SF5-009-Stainless-Steel-Circulator-1-8-HP-15056000-p
