Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

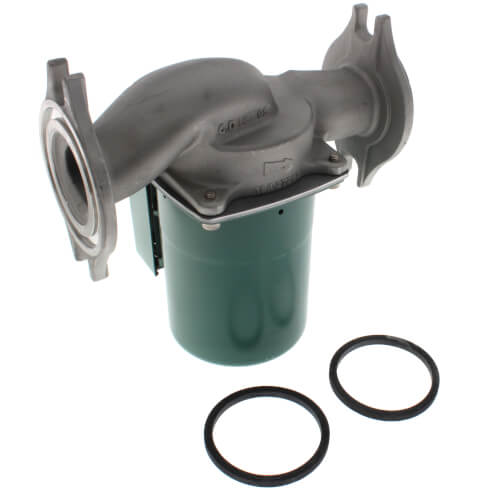

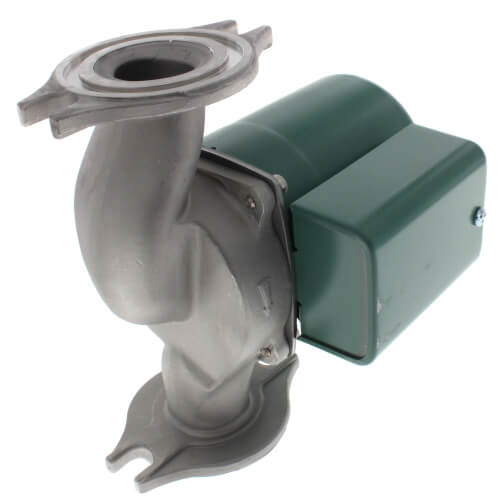

Stainless Steel Taco 007-SF5 Circulator Pump is one of the most popular hydronic circulators sold today. Features a field serviceable cartridge design and provides a quiet, efficient operation and unmatched reliability. It has a self-lubricating, maintenance free design and it's flow parameters make it an ideal circulator for a wide range of open and closed loop hydronic heating, radiant heating, solar heating and many other applications.

Taco 007-SF5 circulator pump is a cartridge style, wet-rotor, in-line, single stage circulator pump. It is designed for quiet operation in Hydronic heating, Radiant heating, Hydro-Air fan coils, Indirect water heaters, Chilled fresh water, and Domestic Water Recirculation systems.

Applications:
  • Open or Closed Loop Radiant Heating
  • Hydronic Heating / Cooling
  • Indirect Water Heaters
  • Domestic Water Recirculation
  • Solar Systems
  • Fan Coils

Replacement Parts List:
  • Casing O-Ring: 008-005RP
  • Flange Gasket Set: 007-007RP
  • Capacitor or PC Board: 007-002RP
  • Cartridge Assembly Complete: 007-045RP
Hide Description
Specs
Material:

Stainless Steel

Application:

Heating

Amperage:

0.76

Horse Power:

1/25

RPM:

3250

Voltage:

115v

Hertz:

60

Phase:

1

Max Pressure (PSI):

125

Connection Size:

3/4"

1-1/4"

1-1/2"

1"

Connection Type:

Flanged x Flanged

Flow Range (GPM):

0-23

Max Flow (GPM):

23

Max Head (Ft):

10

Head Range (ft.):

0-10

Type:

Pump

Temperature Range (F):

40°F to 230°F

Warranty:

3 Year

Replaces:

007-BF5

×
