$702.00 each
In Stock
Get 23 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (4)
This item replaces: 650
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Programmable
32°F to 95°F (Melting)
Description
–
Overview

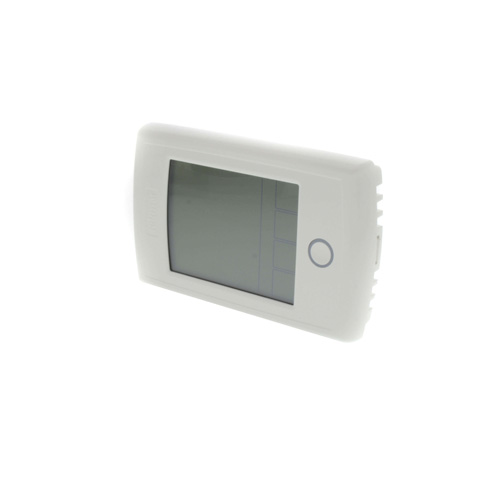

The Snow Melting Control 654 is designed to operate electric or hydronic equipment to melt snow or ice from any surface including driveways, walkways, patios, business entrances, parking ramps, loading docks, hospital entrances, helipads or car wash bays. The surface temperature for snow melting is controlled automatically to reduce operating energy costs. The 654 has an automatic start and stop function when used with the Snow/Ice Sensor 090 or 094. Automatic start with a timed stop is available when used with the Snow Sensor 095. The 654 can operate a dedicated hydronic boiler or a mixing device. Isolation relays are required to operate line voltage pumps. Electric systems require a separate GFCI and electrical relay contactor.
Features
The Snow Melting Control 654 is designed to operate electric or hydronic equipment to melt snow or ice from any surface including driveways, walkways, patios, business entrances, parking ramps, loading docks, hospital entrances, helipads or car wash bays. The surface temperature for snow melting is controlled automatically to reduce operating energy costs. The 654 has an automatic start and stop function when used with the Snow/Ice Sensor 090 or 094. Automatic start with a timed stop is available when used with the Snow Sensor 095. The 654 can operate a dedicated hydronic boiler or a mixing device. Isolation relays are required to operate line voltage pumps. Electric systems require a separate GFCI and electrical relay contactor.
Features
- Automatic Snow / Ice Detection
- Supports Both Inslab & Retrofit Aerial
- Sensors
- Manual Start With Timer
- Programmable Schedule
- tekmarNet® Communication Compatible
- Warm Weather Shut Down
- Cold Weather Cut Out
- Idling
- Snow Melt Zoning With Priority
- Tandem Snow / Ice Detection
- Slab Protection
- Storm
- EconoMelt
- Manual Override
- Snow Melt Zone Tracking
- Scenes
- Away Key
- Exercising
- Alert Output
Specs
–
| Type: | Snow Melting Control |
|---|---|
| Application: | Snow Melt |
| Enclosure Type: | NEMA-1 |
| Programmability: | Programmable |
| User Interface: | Push Button |
| Ambient Conditions: | -4 to 122°F, < 90% RH non-condensing |
| Power Supply: | 24 V (ac) Class 2 |
| Control: | Microprocessor Control |
| Temperature Range (F): | 32°F to 95°F (Melting) |
| Includes: | 070 Sensor 082 Sensor |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Type
Application
Programmability
User Interface
Ambient Conditions
CURRENT ITEM
Snow Melting Control
Snow Melt
Programmable
Push Button
-4 to 122°F, < 90% RH non-condensing
You May Also Need
Product Q&A
1 Question1 Question
Q: i have 4 zone sensors. do i have to use a control for each snowmelt sensor?
Asked by Andy 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, each snow melt zone with a sensor would require a 654 control.
