Product Highlights
Description
**Note: This item contains zero lead.

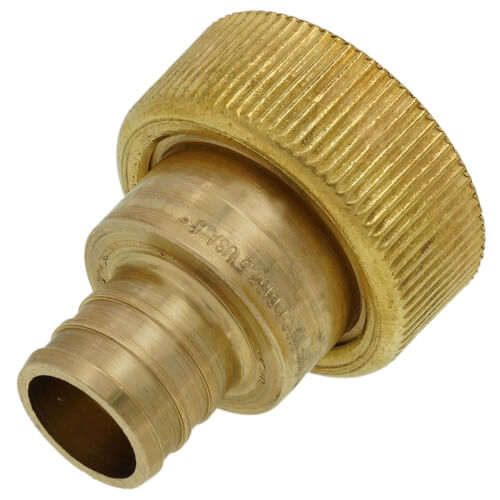

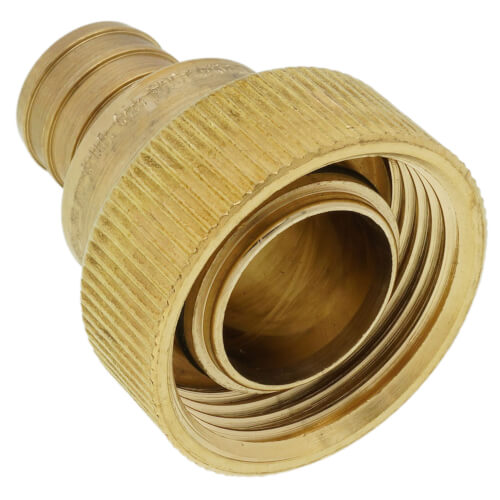

MANABLOC supply adapters connect supply lines to the MANABLOC. They allow easy connection of PEX tubing to the MANABLOC using either the Press or Crimp connection system.
Specs
| Size: | 3/4" |
|---|---|
| Connection Type: | PEX Crimp |
| Material: | Brass |
| Application: | Plumbing |
| Max Pressure (PSI): | 200 |
| Warranty: | 5 Year |
| Standards Met: | NSF ASTM F877 |
| Tubing Compatibility: | PEX |
| Manifold Compatibility: | Manabloc |
| Max Temp (F): | 200°F |
Questions?
You May Also Need
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
REQUIRED for Installation
Most Liked Negative Review
overpriced
Supply House has fair prices on all PEX accessories
I would buy this product again
An absolute pleasure to do business with!!
Should be included with manifold but < shrug>
Great product
Product came ontime and the order was correct
Yes
FAST, EFFICIENT, KNOWLEDGEABLE, & FRIENDLY
Good quality at a fair price.
Worked great
Product Q&A
13 QuestionsQ: We have 3/4 " lines plumbed throughout our project. Do you sell a 3/4 " threaded x 3/4 " crimp fitting to connect to the feed valves of the manifold. Or alternatively, do you sell a 1/2 " threaded x 3/4 " crimp connector?
Asked by Compatibility guy 3 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello, thanks for writing in. The Manabloc supply adapters have proprietary threading on them that will only fit the Manabloc supply inlets. For a 3/4" NPT x 3/4" PEX crimp adapter, please see SKU: PXF075-DZR - https://www.supplyhouse.com/Bluefin-PXF075-DZR-3-4-PEX-x-3-4-NPT-DZR-Brass-Female-Adapter-Lead-Free
Q: Can 1" PEX Crimp Manabloc supply adapter work with Clamp instead of crimp?
Asked by Snehal 13 years ago
Add your answer
Verified Reply- PexSupply StaffYes, crimp supply adapters are compatible with stainless steel PEX clamp fittings.
Q: can this supply adapter be installed on the bottom supply port to use as a drain if needed. I will use the top two ports for hot & cold
Asked by jake 13 years ago
Add your answer
Sure. You could hook it up to a valve for easy draining of the cold side only I believe. I've yet to have to use mine to drain the system ever.
Yes, I believe that is correct. I put a pressure gauge on mine there. Just take the fitting to your plumbing supply store and match up the threads. I think it's 1" MIP if I remember correctly. https://www.dropbox.com/s/1q07kfajuez35le/2014-01-20%2016.51.44.jpg Take Care. Greg K. Cooper Huntsville, Alabama
Actually, Jake, I'm not quite sure I understand your question. I remember buying some of these adapters because they did not come with my Manabloc, but I needed them. My recollection is that the 3/4" supply fittings at the bottom of the Manablock feed water in. Drain? Sorry, don't know. Jeff
The bottom port is your supply port. The top ports are outlet for hot and cold. I don'i really know if you can drain it. Pex tubing is able to expand a little. We just had the cokdest night of the year a week ago. It got down to 32 degrees for two hours. We don't worry about drains in S Texas.
Q: My manablock has the one inch screw on connections for supply and im using 3/4 PEX is SKU 46414 the proper end? Kinda disappointed with the thread being proprietary that the unit didnt come with supply fittings.
Asked by mikeb 13 years ago
Add your answer
Yes. This is the correct fitting for the supply lines.
I understand your disappointment about the supply fittings. If your planning on using ¾” PEX for you manifold supply with crimp connector, then the SKU 46414 is correct. You may want to consider the poly fitting, which is about half price. Good Luck, WKM
Q: Can you use any other type hook up on the threads ?
Asked by hannibaljim 13 years ago
Add your answer
No those adaptors are only designed for pex crimp. However there are other adaptors available.
No, has to be Pex Hookups its not a standard thread
No, the adapter has a male o-ring specifically designed for the manabloc. If you must adapter I would try another fitting all together.
The short answer is NO. Sorry. WKM
Q: I just ordered 2-1/2" six port Miniblocs and forgot to order the supply adapters. This adapter (46414) may work. Can you confirm that the stainless steel clamps will work with this unit?
Asked by Ben 14 years ago
Add your answer
Verified Reply- PexSupply StaffStainless steel clamps will not work. The copper crimp rings will. Compression style is also an option.
Q: will the ProPex expander system work with this adapter??
Asked by Brian 14 years ago
Add your answer
Verified Reply- PexSupply StaffNo, this adapter can only be secured to 3/4" PEX with a crimp or clamp fitting connection. If you want to make a 3/4" ProPEX connection at MANABLOC supplies, use parts 46646 and LF4577575.
No, I don't believe it will. The manablock adapter is designed for use with the crimp style attachments. I'm not as familiar with the expansion style Pex installation; however, if the product is not specifically designed for it, I'd use the crimp rings.
Easy, no it will not work. As stated in the ad, only crimp or stainless steel clamps will work. I don't know of any propex type adapter available for the manabloc that will work with the expander tool. That said, you might want to invest in the stainless steel clamp tool. One thing that is not published about this tool is that when you turn it 90 deg. you can use it to cut off the clamp and reuse the fitting. Very cool. The fittings for crimp or stainless steel clamps are distinctly different than the propex fittings. Be careful when you buy fittings that you get the right ones. Also, it is best to use pexA pipe for the propex. It stretches better and will not fail like the pexB and Pex C pipe. All in all, the most flexible and least expensive system to invest in is the stainless steel clamp system. One tool with no need for any changes for use with pipe size and clamps from 3/8-1". and it works with any kind of pex pipe.
No it would not. The crimp connectors' OD is just right to slip inside standard PEX (which includes UPONOR) without expanding the PEX at all, with the expectation of being crimped smaller with the standard copper ring & crimp tool. The ProPex expander system expands the PEX before you slip it onto a larger diameter fitting, and it shrinks down for a tight fit (aided by the plastic ring placed around the joint before expanding). ProPex being proprietary to UPONOR, Viega doesn't offer compatible fittings. But you can use the ProPex system everywhere else and get a crimper & rings for the connections to the manifold.
Q: do i use this on the main suply line or the branches comming off?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis fitting is for the supply lines. Fittings for the distribution loop branches are included with MANABLOCs/MINIBLOCs and only come in 1/2" and 3/8" sizes.
Q: How can I use a 1/2 supply line to the manabloc manafold
Asked by abe 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe MANABLOC uses supply adapters with unique thread (i.e. nothing else will work). They are only available in 3/4" and 1" sizes. Therefore, it is impossible to connect a 1/2" line directly to the MANABLOC, although you could adapt in-line near the manifold or to the threaded adapter. That said, we would not recommend feeding the MANABLOC with 1/2" because it would not give you adequate flow.
Q: does this 3/4" unit use a conventional crimping tool like all the other 3/4" piping in my house?
Asked by doodah 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe 3/4" crimp MANABLOC Supply Adapter (part 46414) is compatible with standard crimping rings and crimping tools.
Yes, I used the same crimping tool for all my 3/4" Pex connections.
