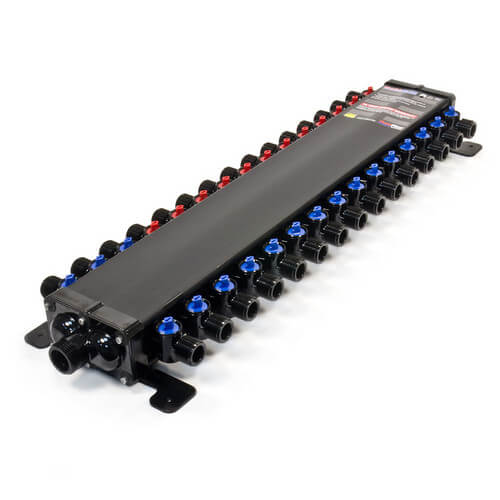

30 Port Polymer 1/2" PEX Crimp MANABLOC Package (Crimp Supply)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
**Requires Crimping Tool**
This Convenient Complete Viega MANABLOC Plumbing Package with Port Adapters Includes the Following:
- (1) 49625: 30 Port MANABLOC (12 Hot, 18 Cold)
- (30) 50133: 1/2 PolyAlloy Crimp x MANABLOC Port Adapter (Lead Free)
- (2) 50141: Zero Lead PolyAlloy 3/4" PEX Crimp x MANABLOC Supply Adapter
- (1) 53601: MANABLOC Supply End Cap
- (1) 45716: Set of 2 Mounting Straps
- (1) Additional 50601: Valve T-Handle (1 comes with MANABLOC)
**Important**
- The MANABLOC plumbing system carries a maximum pressure/temperature rating of 100 psi @ 180°F. Excessive pressure to the MANABLOC will cause leaks.
- Do not allow chemicals such as PVC glues or solder flux to come into contact with the MANABLOC. They will compromise the integrity of the MANABLOC and cause leaks.
- Please consult the MANABLOC install instructions for a more comprehensive list of chemical materials that will cause harm to the MANABLOC plumbing system.
Specs
| Port Size: | 1/2" |
|---|---|
| Number of Outlets: | 30 |
| Number of Outlets (Cold): | 18 |
| Number of Outlets (Hot): | 12 |
| Application: | Plumbing |
| Type: | MANABLOC Package |
| Outlet Type: | PEX |
| Tubing Compatibility: | PEX |
| Material: | Plastic |
| Fitting System Compatibility: | Crimp Clamp |
| Manifold Compatibility: | Manabloc |
| Inlet Type: | PEX Crimp |
| Inlet Size: | 3/4" |
| Supply Connection: | Crimp |
| Loop Connection: | PEX Crimp |
| Warranty: | 10 Year |
Questions?
You May Also Need
2 Replacement Parts
Need help finding a replacement part?
Product Reviews
Best product for plumbing
Easy Installation and Usage
Great Product!!
Manabloc is good
PEX Tube, as expected
just about perfect
Definitely a DIY Project!
Magnificent
Easy, flexible system
Love It!
Product Q&A
24 QuestionsQ: Is there a way to convert one or two cold water connections to hot water?
Asked by Mark 9 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, there is no way to convert cold water connections to hot water connections or vice versa. If you need more hot ports you would need to get a larger size MANABLOC and use MANABLOC Port Caps (36204 for 3/8" or 36205 for 1/2") to cap off any unused ports.
Q: Item CRIS-50143 says 14 port polymer pex crimp, I saw the question asked before but the answer was unclear. Are the port connectors made of brass(sku 46634), aka Brass Pex Crimp?
Asked by pex noob 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe included port fittings are polymer (plastic). The brass manabloc fittings are being discontinued.
Q: What parts would I need if I'm running 3/4" copper in for the incoming water line so that it can connect directly to the manifold?
Asked by Russell 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffwe would need more info, what type manifold, piping type and connection type
Q: Can this item be used as a manifold for a radiant floor with 6 loops -feeding the warm water to the hot side and recovering the cooler water to the cold side? Water temp is approx. 100F.
Asked by MrBill 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThe MANABLOC is designed for use with plumbing systems. For radiant heating manifold options please see here: http://www.supplyhouse.com/Radiant-Heat-Manifolds-258000
Q: Does it matter which end is facing up when installed?
Asked by Simon 12 years ago
Add your answer
I'm certain you could mount this either way, The only thing would be feeding it out of the bottom... Wouldn't look "right", but I would think It'd function the same. ...Stickers would be upside down as well...
You can't really tell from the picture, but one end has two openings (one for the hot water inlet and one for the cold water inlet) and the other end only has a single opening. That end is typically capped, but it can be uncapped if you desire to drain the entire system. But as for your question, it doesn't matter what the orientation is of the manifold. You can even install it sideways or at an angle if you so desire. Kurt Valentine Jefferson City, Missouri www.kurtvalentine.com
I don't see any reason why it would. Most of the labels are attached after and the water should work fine in either direction.
Q: Putting In summer home in Ozark, Mo.
Asked by Peach 13 years ago
Add your answer
This is the one I used, and I love it. Especially for a seasonal home, it has two neat benefits you might not have considered: 1) it's incredibly easy to drain the system for winter-just unscrew the bottom cold water inlet, open your faucets, and out it comes; 2) it might make your home less vulnerable to attack by copper scavengers. Other than that, everything is hand-tight only, so very easy to service. Ports have good design with O-rings, so nothing leaks. The only challenge I had was figuring out how to mount it to a flat basement wall, then run lines to it without putting strain on the ports. I ended up building a flat panel with a 2x4 frame on the back, and hung from the joists with 2x4's and lag bolts. To relieve stress on the ports, I screwed 2x4's parallel down both sides of the Manabloc, standing on the 2" edge. I bore holes through the wide side of the boards, lined up with each port, using the template provided. This arrangement simulates mounting the Manabloc between studs, and controls the routing and stress of the lines connecting to the ports. Once I got it mounted, running the lines was super fast and easy. Good luck!
Q: When winterizing should I use RV antifreeze after I blow out line with air ?
Asked by Peach 13 years ago
Add your answer
Verified Reply- PexSupply StaffAn RV antifreeze (propylene glycol) solution can be used when winterizing the unit. Make sure you properly flush out the system after the winter.
Q: How do you winterize the manifold ?
Asked by Peach 13 years ago
Add your answer
Verified Reply- PexSupply StaffUsing compressed air is the most common method. There are not any major differences that apply to winterizing Manabloc systems as opposed to any other type of plumbing distribution system.
Where is it located and why does it need to be winterized?
Shut off the supply, keep all individual valves open. Open all faucets etc and drain manifold from bottom. Sent from my Verizon Wireless BlackBerry
Q: Can I utilize Pro Pex expander fittings on the crimp connection ports?
Asked by Josh 13 years ago
Add your answer
Verified Reply- PexSupply StaffYou would not be able to do this. Manablocs require proprietary fittings and there are no options for ProPEX outlet fittings.
Q: This is for new construction - what is the most common supply connection? Crimp or NPT? What is the criteria for selecting Crimp or NPT Thanks
Asked by KB 13 years ago
Add your answer
Verified Reply- PexSupply StaffThey are probably equally common. Crimp adapters make more sense if if you are using PEX supply lines and have a crimping tool. Threaded adapters make more sense if you're using copper supply lines or you do not have a crimping tool or PEX press tool.
I would recommend crimp if you have access to the crimping tools. Guy T. Stinson Stinson Co. LLC
