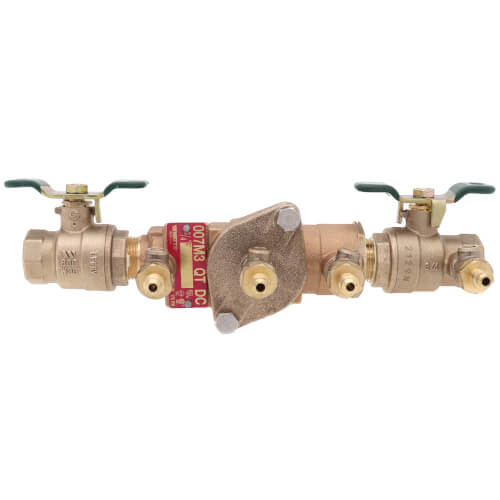

3/4" Double Check Valve Assembly (007M3-QT)
3/4" Double Check Valve Assembly (007M3-QT)
Maximum Working Pressure: 175psi (12.06 bar).
Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze (1/2 to 2 in) or fused epoxy coated cast iron (2 1/2 to 3 in) body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.
| Application: | Plumbing |
|---|---|
| Product Type: | Backflow Preventer |
| Size: | 3/4" |
| Material: | Cast Bronze |
| Max Pressure (PSI): | 175 |
| Connection Type: | Female Threaded |
| Min Temp (F): | 33°F |
| Max Temp (F): | 180°F |
| Height: | 4" |
| Features: | 1/4 Turn Ball Valves |
Questions?
Reviewed by 38 customers
Good product at right price
Rated 5 out of 5 starsVerified Buyer
Comments about 2" Lead Free Double Check Valve Assembly (LF007M1-QT)
Fire sprinkler line
Perfect part, best price
Rated 5 out of 5 starsVerified Buyer
Comments about 3/4" Lead Free Double Check Valve Assembly (LF007M3-QT)
Backflow valve works great. Passed town inspection with no issues.
Seems high quality
Rated 5 out of 5 starsVerified Buyer
Comments about 2" Lead Free Double Check Valve Assembly (LF007M1-QT)
Pretty heavy, I ordered, it arrived!
Very satisfied
Rated 5 out of 5 starsVerified Buyer
Comments about 1" Double Check Valve Assembly (007M1-QT)
Purchased the Watts 1" DCVA (007M1-QT) to replace one that was 10+ years old and had issues. Supply House had the best price and the new DCVA is installed and working flawlessly. I'm pleased with the product - it seems well built and I expect it to last many years. I'm also very impressed with Supply House - great price, quick shipping, very professional. I will look to them for future plumbing needs.
Good product
Rated 5 out of 5 starsVerified Buyer
Comments about 3/4" Double Check Valve Assembly (007M3-QT)
Delivered as advertised. Super fast delivery.
Great
Rated 5 out of 5 starsVerified Buyer
Comments about 3/4" Double Check Valve Assembly (007M3-QT)
Was a perfect fit to replace the old one Price was good and fast shipping
Worked perfectly
Rated 5 out of 5 starsVerified Buyer
Comments about 1/2" Lead Free Double Check Valve Assembly (LF007-QT)
We hired a plumber to do the install, but it was a big savings to be able to purchase the product directly.
Great purchase.
Rated 5 out of 5 starsVerified Buyer
Comments about 2" Lead Free Double Check Valve Assembly (LF007M1-QT)
I needed to get a new one because the current one was not repairable anymore.
Good part, great supplier!
Rated 5 out of 5 starsVerified Buyer
Comments about 1/2" Lead Free Double Check Valve Assembly (LF007-QT)
I am very happy with the double check valve unit. Even happier to buy it from a company like Supply House. I had originally received a unit that had a leak. Called Supply House about getting a replacement part and they got it here fast. They paid for the return shipping and honestly I couldn't be a happier customer. I have purchased many things from Supply House and have never had any problems that couldn't be handled quickly and easily. Keep it up guys!
FAst delivery, Fits the need
Rated 5 out of 5 starsVerified Buyer
Comments about 3/4" Lead Free Double Check Valve Assembly (LF007M3-QT)
Replaced a leaking check valve assy on my sprinkler system. Works great.
Q&A
Showing 6 out of 6 Questions
- Q
Can this backflow valve be mounted vertically???
- Asked by Lou
- Verified Reply - SupplyHouseHi Lou! The Series LF007 can be mounted horizontally or vertically. However you must check with your local authority having jurisdiction regarding the approval for vertical orientation and any other installation requirements. Was this answer helpful to you
- Q
Does this valve meet the American Water Works Association Standard C-510 so it can be tested annually to meet EPA backflow prevention requirements for a community water system?
- Asked by Steve
- Verified Reply - Supplyhouse StaffThis valve meets the following standards, ASSE, AWWA, IAPMO, CSA, UPC Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California.Was this answer helpful to you
- Q
I have this system already yet I am in need of an 'O' ring for it...unfortunately I misplaced the original. Where would I purchase an 'O' ring for this backflow preventer?
- Asked by Alicia
- Open Reply - PexSupply StaffBoth the cover and seat o-rings for this assembly can be obtained as part of the complete rubber parts repair kit (item 0887040).Was this answer helpful to you
- Q
I plan on using this double check valve on a water powered sump pump backup system. Does the insertion of this valve reduce the water pressure? Since the performance depends on the water pressure, I am concerned about reducing the pressure.
- Asked by
- Open Reply - PexSupply StaffAccording to the manufacturer, you can expect to lose between 8 and 15 psi across a backflow preventer.Was this answer helpful to you
- Q
I have a febco 805y will this preventer work on my system
- Asked by natch
- Open Reply - PexSupply StaffAccording to the manufacturer, the Watts 007M1-QT can replace the FEBCO 805Y. They are both Double Check assemblies and both perform the same function. The direct replacement for the FEBCO 805Y is the FEBCO 850.Was this answer helpful to you
- Q
I'm ready to blow out my sprinkler system. Is there any water that could freeze in the valve during the winter? How do I prevent frozen waterin the valve?
- Asked by golf4man
- Open Reply - PexSupply StaffThe most common practice is to use an air compressor to blow out all the lines and make sure all the valves are open while doing this.Was this answer helpful to you
